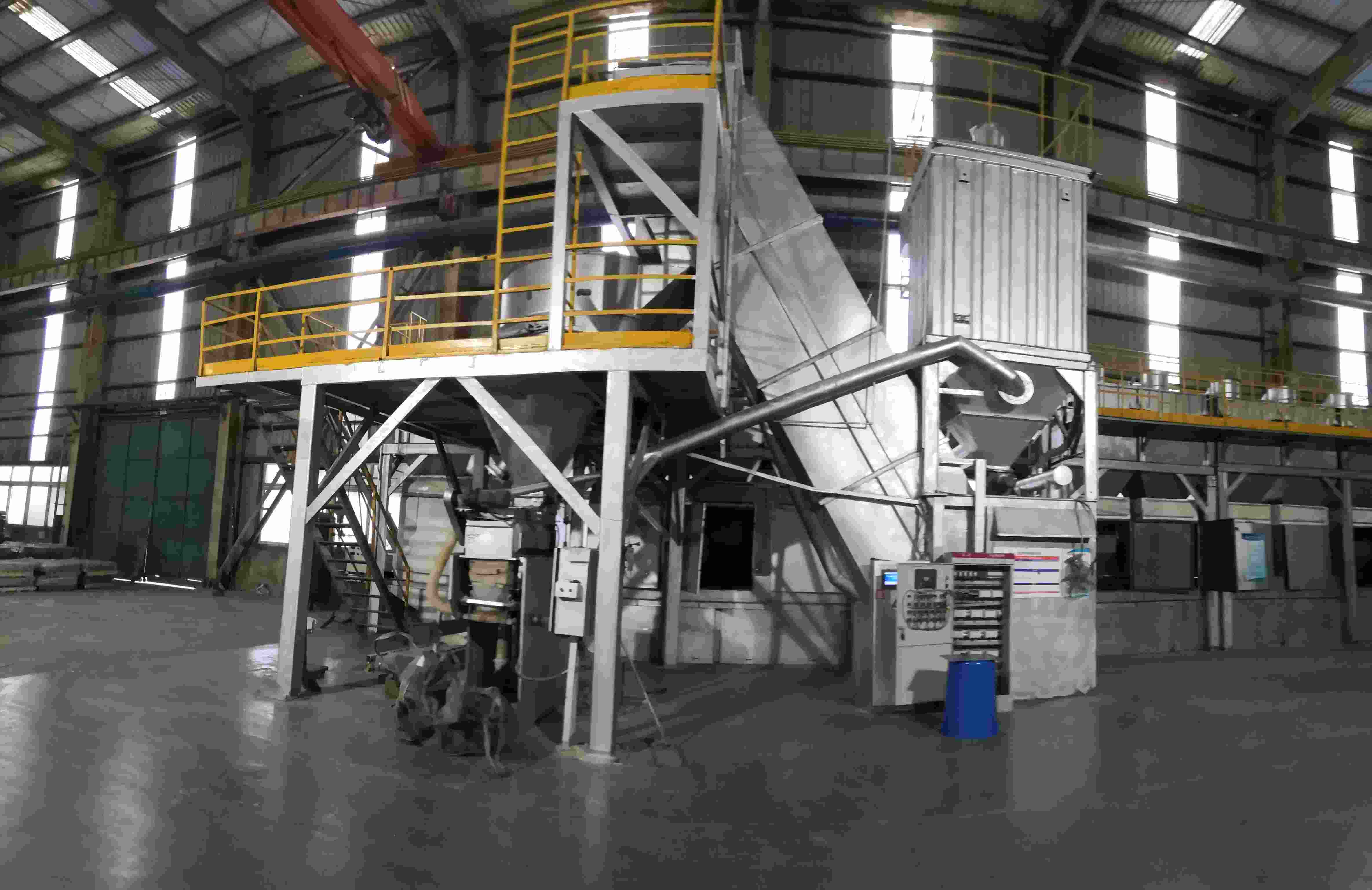

Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Specifications
Voltage :
380V, 50Hz
Motor power :
Accordingly
Conveyor belt material :
Rubber belt
Material :
Mild steel
Brand Name :
JEFFER
Model Number :
Customized
Certification :
ISO9001, ISO14001, ISO45001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
1 set per 2 months
Delivery Time :
60 days after received the down payemnt
Packaging Details :
Wooden case, steel frame, tray......
Treated raw materials :
Silica sand, fedlspar
Mixer volume :
Accordingly
Description
Glass Batch Plant with In-Line and Tower Types for Raw Material Treatment
Raw Material Treatment & Economic Application

Our glass batch plants are engineered for efficient raw material pretreatment, automatic batching and mixing for glass manufacturing projects. JEFFER supplies complete batch‑plant solutions as part of full‑scope glass‑line EPC contracting, covering design, equipment manufacturing, site installation, commissioning and operator training.


Raw materials require pretreatment when their particle‑size distribution fails to meet physico‑chemical requirements for glass production. Proper pretreatment improves mixing uniformity and melting performance inside the glass melting furnace.


Glass‑making raw materials are divided into main raw materials and auxiliary raw materials by proportion and function.

Main Raw Materials
Item Description
1 Silica sand
2 Feldspar
3 Dolomite
4 Limestone
5 Soda ash
6 cullet(recycled glass)
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
Types of Auxiliary Materials

Auxiliary materials enhance glass characteristics and accelerate melting speed during production.

Item Description
1 fining agent
2 Decolorizing agent
3 Coloring agent
4 Oxidizing agent
5 fluxing agent
6 Reducing agent
Batch Plant Arrangement Types
In-Line Type
  • Silos arranged in a single line configuration
  • Materials conveyed to mixer via belt conveyor after discharge from scale hopper
  • Separately arranged mixing room
  • Material loading system arranged on one line
Tower Type
  • Mixer, scales, and silos vertically arranged
  • Scales directly connected with the mixer
  • Material loading system designed for large batch capacities with multi-directional material loading capability
Material Feeding Device
  • Hopper
  • Pneumatic hammer
  • Sensors
  • Material discharging device
  • Instrument and control system
Material Processing Equipment
Mixer Components
Component Function
Material unloading door Discharges materials from the mixer
Stirring tank Stirs and mixes raw materials in batch
Water adding device Ensures uniform mixing
Turboprop device Drives stirring mechanism
Lubrication device Provides lubrication oil to reducer
Belt Conveyor
Rubber belt with vulcanized joint;
open‑type drive unit composed of motor, high‑speed coupling, back‑stop equipped reducer and low‑speed coupling.
Bucket Elevator

Bucket elevator features large conveying capacity, high lifting height, stable operation, and long lifespan. The system consists of:

  • Upper section
  • Lower section
  • Intermediate section
  • Deriving section
  • Operation section
Tower-Type and In-Line Type Glass Batch Plant for Raw Material Treatment in Mild Steel Construction
