Specifications
Brand Name :
HICORPWELL
Model Number :
Loss Zirconia Ceramic Ferrules LC 1.249mm SM
Certification :
ISO9001-2015
Place of Origin :
Guangdong China
MOQ :
1000pcs
Price :
0.55-0.95
Payment Terms :
L/C, T/T
Supply Ability :
4000000 Piece/Pieces per Month
Delivery Time :
3-7 working days
Packaging Details :
Vacuum packing or following your order's demand
Name :
Bronze Ferrules LC SC MU
Conerntricity :
SM≤1.0 MM≤4.0
Length :
SC: SM10.5±0.05 MM10.5±0.1 LC:
Ferrule :
SC/LC/APC/CUSTOMIZED
OD Size :
SC:2.499±0.0005 LC:1.249±0.000
Material :
Bronze
Color :
Golden
Sample :
Free
Nearest port :
Shenzhen/HK
MOQ :
Min order and sample order is acceptable.
Description

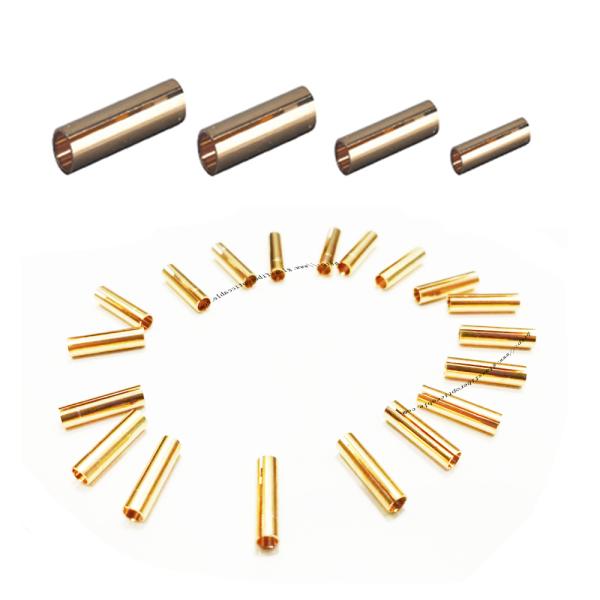

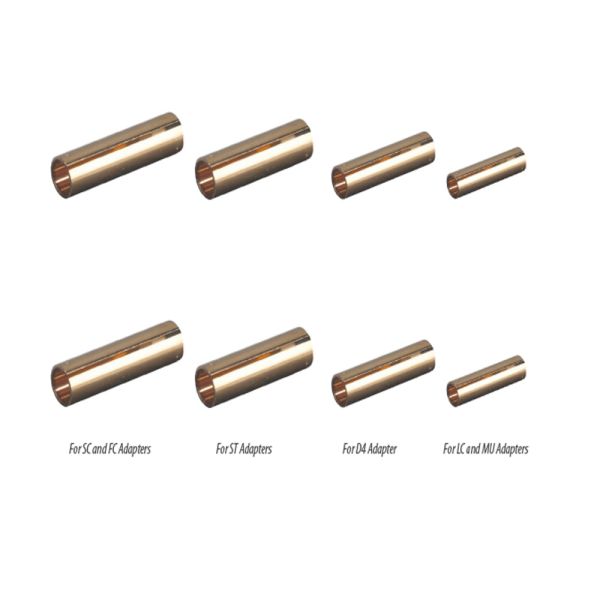

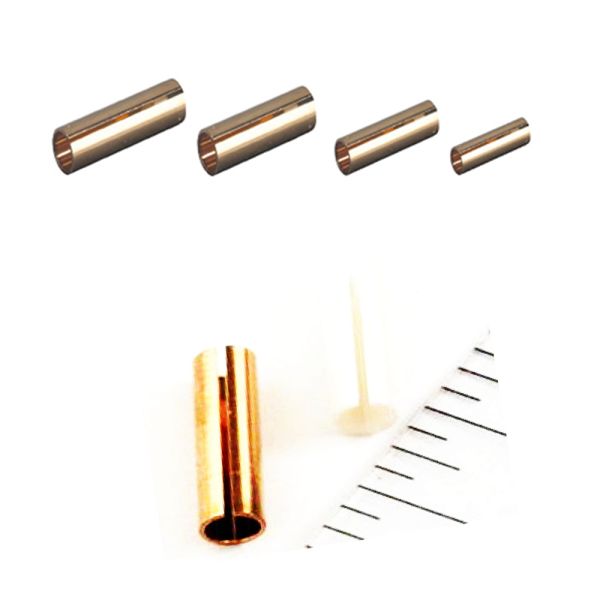

Alumina Ceramic Sleeve Fiber Optic Standard SC Fiber Optic Copper Sleeve

Phosphor bronze sleeves provide moderate precision through stamping and turning processes, with metallic properties that allow minor dimensional adjustments to accommodate tolerance variations. This ensures broad compatibility at a lower cost compared to ceramic alternatives.

In fiber optic copper sleeve protector design and selection, ceramic sleeves are not preferred, while metal sleeves such as phosphor bronze are often used due to fundamental differences in material properties, functional positioning, and application scenario requirements.

Key Features
  • Highly durable and stable material property under severe environmental conditions
  • Few void/porosity for stable and reliable polishing
  • High reflectivity
  • High quality and competitive price
  • Excellent coaxial tolerance and size accuracy
  • Properties of high intensity, wear resistance, and high anti-aging
  • Low insertion loss, high frequency of insert
Applications
  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
Technical Specifications
Parameter Value
O.D. Size SC: 2.499±0.0005, LC: 1.249±0.0005
I.D. Size Customized
Concentricity SM ≤1.0μm, MM ≤4.0μm
Length SM 10.5±0.05, MM 10.5±0.1, LC: 6.4+0.1
Ferrule Type SC/LC/APC/Customized
Material Zirconia Dioxide
Endface Conical type/Step type/Plane type
Color White
Sample Free
Detailed Specifications
Type SC LC MU APC Unit
O.D. Size (mm) SM: 2.4999±0.0005
MM: 2.4999±0.001		 SM: 2.4999±0.0005
MM: 1.249±0.001		 1.249±0.0005 2.499±0.0005 φd±0.0005
I.D. Size (mm) SM: d±0.001
MM: d±0.002		 SM: d±0.001
MM: 0.126±0.004		 d±0.001 d±0.001 d±0.001
Concentricity (μm) SM: ≤1.0
MM: ≤4.0		 SM: ≤1.0
MM: ≤4.0		 ≤1.0 ≤1.0 Customized
Length (mm) SM: 10.5±0.05
MM: 10.5±0.05		 6.4+0.1 6.5±0.05 10.5±0.05 L±0.05
Key Advantages
  • High precision and reliability
  • Excellent strength, durability and anti-aging performance
  • Various types of ferrules and end-faces
Additional Information
Packaging: Carton, Wooden box, or as per customer requirements
Delivery Time: 15-25 days after receiving deposit (including tooling making time)

Ferrule is the most important component of fiber connectors and fiber patch cords. Made from zirconia ceramic material, these ferrules offer low insertion loss, remarkable strength, small elasticity coefficient, easy control of product characteristics, and strong resistance to environmental changes.

Outer diameter ceramic ferrule sizes are φ2.5mm for ST, FC and SC fiber connectors, and φ1.25mm for MU and LC fiber connector versions, with precision tolerance levels of ±0.0005mm for single mode and ±0.001mm for multimode applications.
