Specifications
Brand Name :
HICORPWELL
Model Number :
ODVA LC Plug
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
２sets
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs Per Week
Packaging Details :

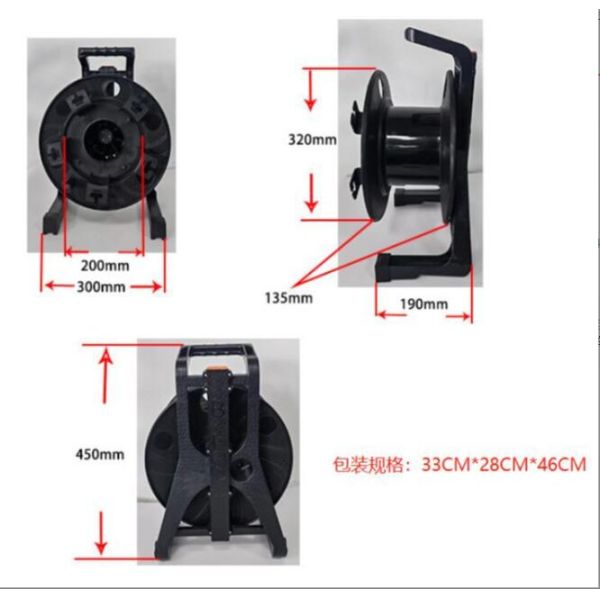

Max 100m/ per reel for 5.0 mm OD cable
Cable Type :
SM sc upc outdoor patch cordSM sc upc outdoor patch cord
Connectors :
sc upc
Paintcoat Color :
Ｂｌａｃｋ
Jacket OD :
2MM 3MM
Length :
Per Reel.100m -３00m
Package :
Plastic bags with test report
Add info :
Multimode Simplex Steel Armoured Fiber Optic Patch Cord
Fiber Count :
Simplex Duplex
Description

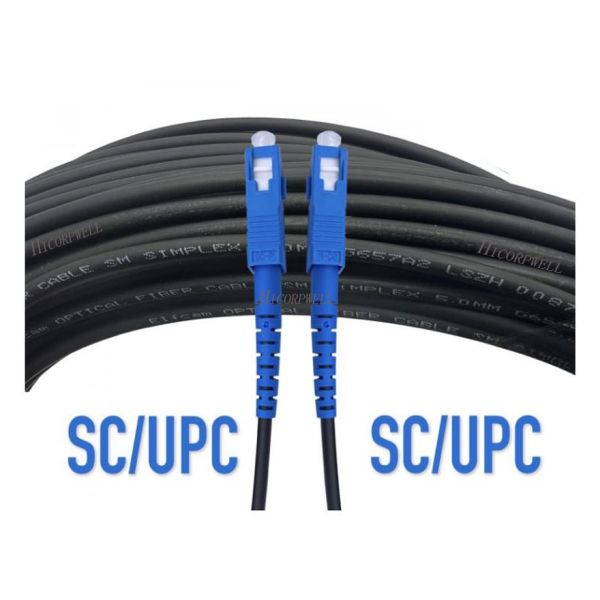

Durable Fiber Optic Patch Cables SM SC/UPC Outdoor Patch Cord for Communication Systems

A comprehensive technical and commercial guide for durable Single-Mode (SM) SC/UPC Outdoor Fiber Optic Patch Cables, tailored for communication system deployment with clear specifications, outdoor-specific features, applications, selection criteria, and installation tips.

Key Terminology Clarification
  • SM (Single-Mode): 9/125 μm OS2 fiber (G.652D/G.657A1 common), optimized for 1310nm/1550nm wavelengths, low attenuation, long-haul transmission, no modal dispersion
  • SC/UPC: Square Connector with Ultra Physical Contact polish; push-pull latching, ceramic ferrule, return loss ≥50 dB, insertion loss ≤0.3 dB (premium ≤0.2 dB), widely used in telecom/FTTH
  • Outdoor-rated: UV-resistant jacket, moisture barrier (gel/dry block), wide temperature range, optional armor (steel/Kevlar/FRP) for rodent/crush protection
Technical Specifications
Parameter Standard Value Premium Option
Fiber type OS2 9/125 μm (G.652D/G.657A1) G.657.A2/B3 (bend-insensitive)
Wavelength 1310 nm / 1550 nm 1625 nm (OTDR test)
Insertion Loss ≤ 0.3 dB ≤ 0.2 dB
Return Loss (UPC) ≥ 50 dB ≥ 55 dB
Jacket material LSZH/PE (UV-resistant) Armored LSZH/TPU
Operating temp -40°C to +75°C -40°C to +85°C
Mechanical protection Kevlar reinforcement Steel tube armor+FRP
Certifications Telcordia GR-1209/1221, IEC 61754, CE, RoHS CPR, NEBS
Outdoor-Specific Durability Features
  • UV & Weather Resistance: LSZH/PE outer sheath prevents sun-induced brittleness; black jackets reduce heat absorption
  • Moisture & Water Blocking: Gel-filled or dry-block longitudinal barriers stop water ingress along the cable core; sealed SC connector boots (IP67 rated) prevent end-face condensation
  • Mechanical Robustness: Kevlar yarn for tensile strength; metal/corrugated armor for anti-crush, anti-rodent; minimum bend radius (static 10× cable OD, dynamic 20× OD)
  • Temperature Stability: No performance degradation in extreme cold/heat, suitable for desert, high-altitude, and frigid regions
