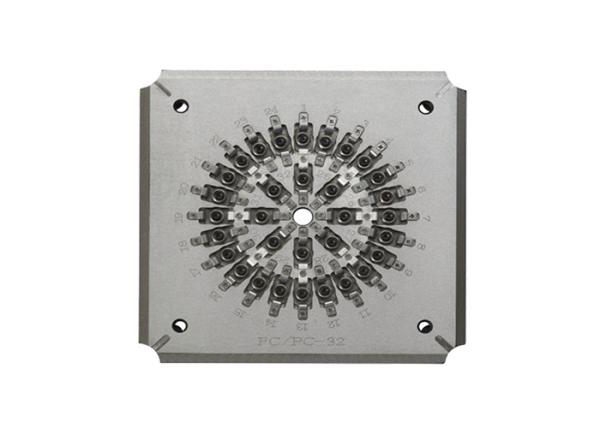

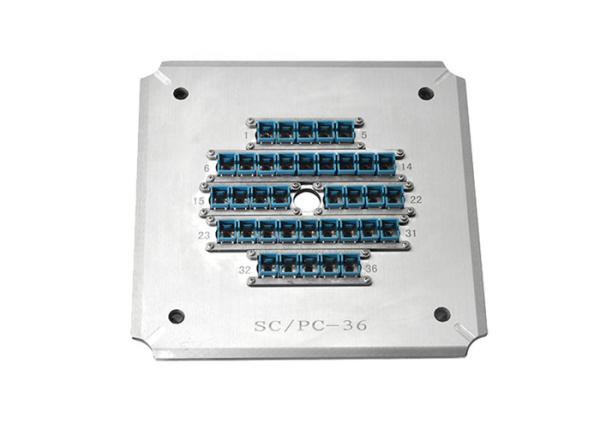

SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
Specifications
Brand Name :
HICORPWELL
Model Number :
FC/SC/ST/LC Hand Throwing Disk
Certification :
IEC 60794-2-10/11
Place of Origin :
China
MOQ :
2 pcs
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
100pcs Per Week
Delivery Time :
15 working days
Packaging Details :
One piece in a carton
Name :
FC/SC/ST/LC Hand Throwing Disk
Connectors :
SC FC ST LC MPO MTP MTRJ
Type :
Square Pressure Polishing Machine
60RPM :
Grinding Plate is less than 0.015mm
Usage :
Polishing
Power supply :
220V(AC), 50Hz
Cores :
18 20 24
Timer :
Omron rotation, key digital timer, any timing
Description

SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk

Features

* Fiber ferrules for grinding 2.5mm and 1.25mm PC end faces, such as FC, SC, ST/LC, etc.
* Made of high quality finished stainless steel, hard and wearable;
*The inner and outer round edges are designed for easy manual operation;
*The processing size is exquisite, smooth and burr-free, ensuring the grinding effect;
* Light and small, easy to carry;

Description

Under the condition that replacement or welding is not allowed, the end face of the tail fiber of damaged ( including scratches and cracks )

optical devices with various functions ( such as lasers, transceivers, modulators, optical switches, amplifiers, compensators, etc. )

Fiber optic manual grinding disc Manual grinding disc for repairing optical fiber end face is a fast,

simple and efficient tool for repairing end face on site.

Specifications


1. Timer: Omron rotation, key digital timer, any timing

2. Suitable: φ2.5mm PC,APC:FC,SC,ST；φ1.25mmPC,APC:LC,MU,MT,mini-MT,MT-RJ；

PC,APC:MPO,MTP,MPX；Pig-tail；Fiber-arry；PLC

3 Cores:18 20 24

4. Standard fiber optic connectors: FC/UPC,SC/UPC,ST/UPC,LC/UPC,MU/UPC,

FC/APC,SC/APC,MT-RJ,E2000 etc.


5. Connector insertion loss: ≤0.2dB(SM),≤0.15dB(MM)

6. Return loss: ≥50dB(PC),≥60dB(APC)

7. Radius of curvature: PC:10～25mm(φ2.5mm),7～25mm(φ1.25mm),APC:5～12mm

8. Repeat loss: ≤0.1dB；Swap loss: ≤0.2dB

SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk

SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk SC PC36 LC APC 24 Stainless Steel Fiber Optic Polishing Disc Hand Throwing Disk
