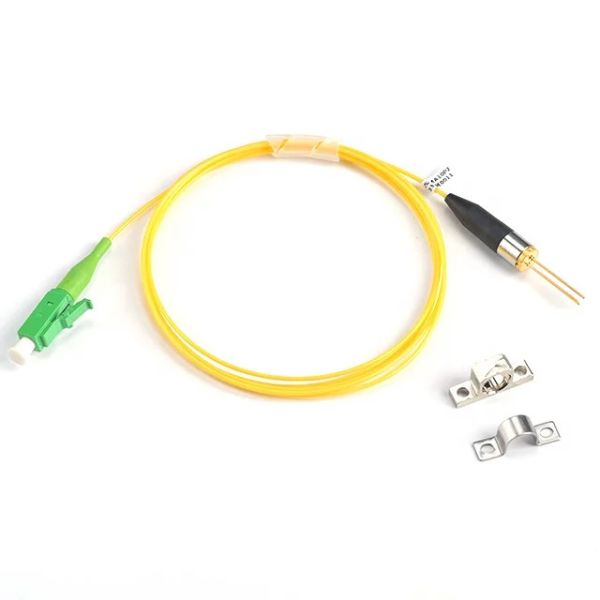

Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
Specifications
Brand Name :
HICORPWELL
Model Number :
Fiber Optic Pigtail Coaxial DFB Laser Diode Laser Modules
Certification :
ISO9001;2015
Place of Origin :
China
MOQ :
10sets
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000pcs Per Week
Packaging Details :
7X25X34CM , 10 pcs in a box , 50 pcs in a carton
Type :
Laser Diode
Wavelength :
1270nm-1610nm
Isolation :
Single/double
Chip :
CWDM DFB
Tolerance :
+/-3nm
Payment :
TT/PayPal
Max. Reverse Voltage :
15(PD)
Package Type :
Through Hole
Description

Fiber Optic Pigtail Coaxial DFB Laser Diode Laser Modules For optical transmitters


Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit Test Condition
Storage Temperature Tstg -40 100 ℃ -
Operating Temperature Top -40 85 ℃ I=Iop
Laser Forward Current If - 150 mA -
LD Reverse Voltage Lvr - 2 V -
PD Reverse Voltage Pvr 15 V
Soldering Temp - - 260 ℃ -
Soldering Time - - 10 S -


Optical & Electrical Characteristics

Parameter Symbol Min. Typ. Max. Unit Test condition
Rated Power Po 1 - 3 mW Ith+20mA
Threshold Current Ith 5 - 15 mA CW
Forward Voltage Drop Vop - 1.0 1.2 V -
Cent Wavelength λc Note 2 nm Note 1
Spectrum Width(-3dB) Δλ - 0.5 1 nm CW,-3dB
Side-mode Suppression Ratio SMSR 35 - - dB -
Monitor Current Im 100 - 900 uA CW, Ith+20mA
Dark Current of Monitor Id - - 100 nA -
Optical Isolation ISO 30 40 - dB 25℃
Frequency Range F 2.5 GHz RI=50Ω
Cut-off Frequency Fc 6 GHz If=Iop
Relative intensity noise RIN - -155 -150 dB/Hz CW, If=Iop, f=4500MHz
RF Bandpass Flatness BF ±1.5 dB If=Iop,45MHz-4500MHz,T=25 °C



Note 1. 2.5Gb/s NRZ, pseudo-random, Pb=0.2mW, Ppeak=1.0mW

Additional requirements can be settled through friendly negotiation.

we reserve the right to make changes to the product or information contained herein

without notice.

Coaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical TransmittersCoaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical TransmittersCoaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical TransmittersCoaxial Fiber Optic Pigtail DFB Diode Laser Modules For Optical Transmitters
