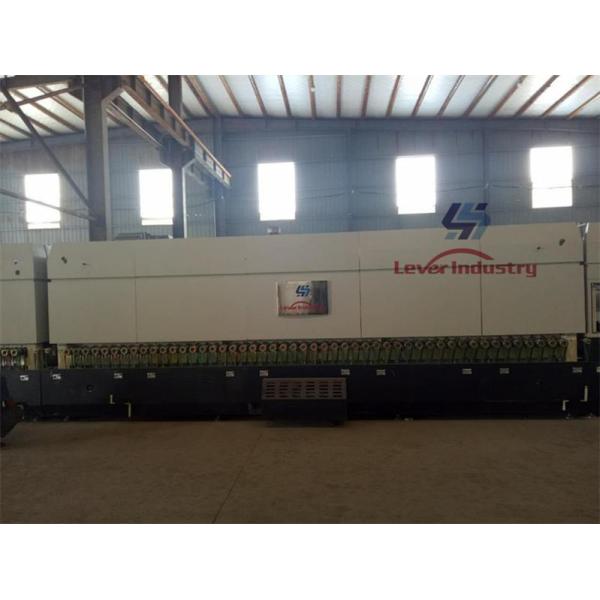

Double Bay heaitng Chamber Glass Toughened furnace Glass Toughening plant supplier
Double Bay heaitng Chamber Glass Toughened furnace Glass Toughening plant supplier
Specifications
Brand Name :
Lever
Model Number :
LV-STF SERIES
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
L/C, T/T
Delivery Time :
120 Days
Packaging Details :
Seaworthy
Price :
300000
Supply Ability :
100SETS
Usage :
glass tempering furnace
Heating way :
Seamless heating way
PLC :
Siemens or Omron
Ceramic rollers :
Vesuvius or customerized
Description

Doulbe Heating Chamber Glass Tempering Furnace Machine with top fans convection for Low emissivity coated glass

Video link:
https://youtu.be/tfytuOlcxP4

1. Machine Application:

For producing flat tempered glass and thermal strengthened glass, which mainly used in the fields of architecture (doors, windows), shower room, household appliance, garden fence, elevator, furniture, and solar energy industries etc.

Model Glass Size (mm) Thickness(mm) Productivity Remark
Max.Size Min.Size
LV-STF1742-II 1700×4200 100×250 3-10 235m2/h Take 3.2mm clear float glass 80%loading rate
LV-STF1750-II 1700×5000 3-10 280m2/h
LV-STF1760-II 1700×6000 3-10 340m2/h
LV-STF2442-II 2400×9000 100×280 4-19 200m2/h Take 5mm clear float glass 80%loading rate
LV-STF2450-II 2400×5000 4-10 250m2/h
LV-STF2460-II 2400×6000 4-10 300m2/h
LV-STF3050-II 3000×5000 150×300 5-19 310m2/h
LV-STF3060-II 3000×6000 5-19 370m2/h
LV-STF3350-II 3300×5000 150×320 5-19 340m2/h
LV-STF3360-II 3300×6000 5-19 410m2/h
LV-STF3380-II 3300×8000 6-19 500m2/h
LV-STF33100-II 3300×10000 6-19

2. Machine Main Features:

►. Heating section has a helix matrix structure, which can control the temperature of each area independently. Reasonable design and unique structure of heating elements make a long serve life.

►. The heating oven body is full closed and the Insulating materials are of high quality material with top performance which can ensure very lower energy consumption.

►. Fault diagnosis system for the heating elements.

►. We use only two connecting communication between the thermocouples and computer, which will avoid the interruption and make the temperature-measuring more exact.

►. The working condition of every thermocouple could be monitored automatically, and the warning will come out if there is any abnormal situation.

►. Adopting PID for temperature control, which has the better anti-interference function and higher temperature-control precision.
