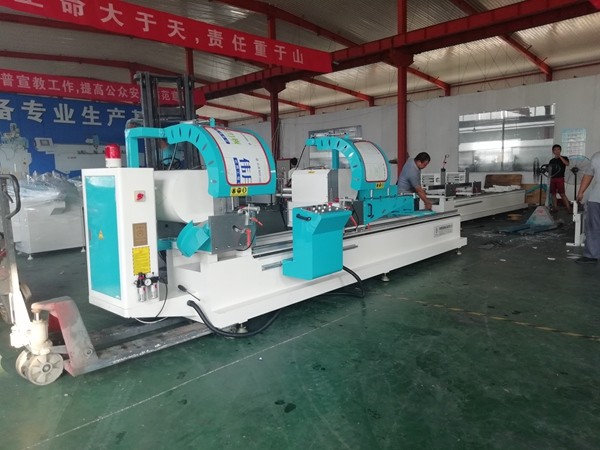

Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
Specifications
Model Number :
LJZ2-CNC-500X4200
Certification :
CE ISO
MOQ :
1set
Price :
By negotiation
Supply Ability :
30 sets per month
Delivery Time :
20 days
Packaging Details :
1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Function :
Aluminum Window Making
Rotating rate :
3100r/min
Blade size :
D=500mm
Cutting scale :
135x300mm
Cutting length :
400-4200mm
Cutting angle :
45, -45, 90 degree
Input Power :
4.4Kw
Product :
CNC Automatic Aluminum Window Making Machine Double Head Cutting Saw Machine
Description

CNC Automatic Aluminum Window Making Machine Double Head Cutting Saw Machine

Product parameter

1. For cutting Aluminum profile.

2. The feeding system adopts imported linear guide pair, with high accuracy and stability.

3. Auto 45°and 90°cutting change

4. Imported linear guiding pair ensured steady processing accuracy.

5. Saw blade rotates smoothly due to high accuracy spindle.

6. Hydraulic feeding systems ensure precise and stable feeding.

7. Middle auto-induction profile supporter and following profile supporter make the loading and clamping convenient.

8. Carbide saw blade is of accurate processing and high efficiency.

9. Two heads can work together or single, when together work, one time can cut off the required length and angle

Voltage 380V/50HZ
Power 4.4KW
Working parameters Saw size D=500mm d=30mm
Rotation rate 2800r/min
Air pressure 0.5-0.8MPa
Cutting scale HxWxL (mm) 135x300x(400-4200)
Product Display

Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw

Product detail

Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw

Products Features

1, Used for cutting of aluminum and PVC profiles;

2, CNC controlling system, achieve various profiles automatic cutting off;

3, Adopt airdraulic damping cylinder, ensure uniform speed feeding and smooth operation;

4, High accuracy main spindle and saw blade rotate smoothly;

5, Color touching display interface;

6, Feeding system adopts imported linear guide pair, with high accuracy and stability;

7, Optional 45°and 90°cutting;

8, Equipped with Japan imported blade;

Our Services

Highly Speed Automatic Aluminum Window Machine Profile CNC Cutting Saw
