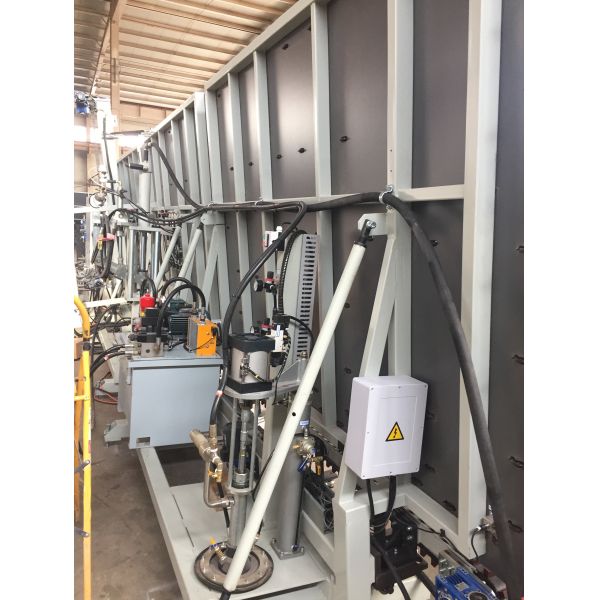

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
Specifications
Model Number :
CAAS2540
Certification :
CE ISO
MOQ :
1set
Price :
By negotiation
Supply Ability :
30 sets per month
Delivery Time :
25 days
Packaging Details :
1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Function :
Secondary sealant for insulating glass unit
Max sealing glass size :
2500x4000mm
Min sealing glass size :
260x400mm
Processing glass thickness :
3-19mm
IG unit thickness :
12-48mm
Insulation thickness :
6-24mm
Gluing depth :
3-18mm
Servo system :
YASKAWA
Gluing pressure :
35MPa
Dimension :
11600×3000×3450mm
Description

Automatic Vertical Insulating Glass Sealing Machine Robot

Product parameter

Automatic insulating glass sealing machine is special designed for insulating glass production line, which work instead of hand sealant, greatly improve working efficiency and ensure quality of IG glass sheet.

Parameters of Care Automatic Insulating Glass Sealing Machine
Model CAAS2025 CAAS2030 CAAS2540
Power supply 380V 50Hz 3P (or customized)
Total power 11KW 12KW 14KW
Process glass scale Max glass sheet 2000x2500mm 2000x3000mm 2500×4000mm
Min glass sheet 260×400mm
Original glass thickness 3~18mm
IG glass sheet thickness 12-48mm
Insulation thickness 6-24mm
Gluing ability Gluing depth 3-18mm
Gluing pressure 35MPa
Working speed Gluing speed 5-40m/min
Dimension L×W×H (mm) 7800x3000x2750mm 9500x3000x2750mm 11600×3000×3450mm
Note: various model with other processing scal customized available.
Product detail

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency

1, YASKAWA servo system and world famous brands of key components, ensure stable operation and long service life;

2, PLC controlling system, touching screen operation;

3, Workable for single and double insulation sealant(double layer and triple layer glass sheet);

4, Two sets of sealant glue supply systems and work independently; one key touching to switch between each other;

5, Timing automatic glue diecharging, avoid glue blocking;

6, V-type rubber belt for transportation, easily replaced once worn;

7, Programmable memory function, one key touching to different size of glass sheet processing;

8, Compact outlook design, saving working area;

Product flow

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency

Product Application

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency

Our Services

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency

Packaging & Shipping

Heavy Duty Vertical Insulating Glass Machine , Automatic Glass Machine High Efficiency
