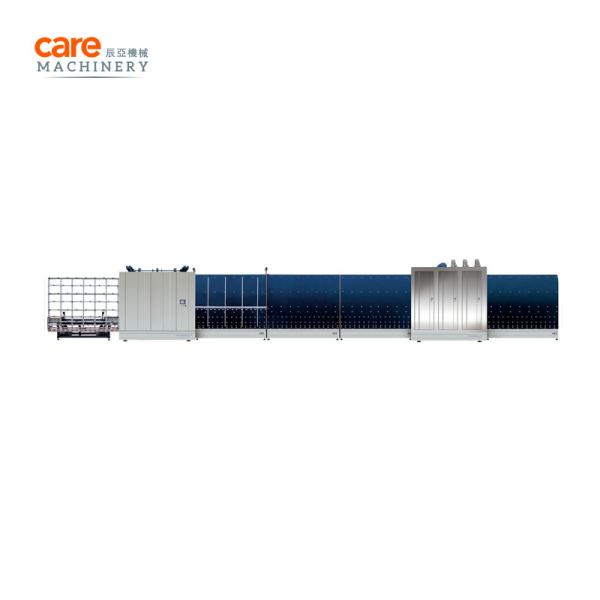

Full Automatically Insulating Glass Production Line
Full Automatically Insulating Glass Production Line
Full Automatically Insulating Glass Production Line
Full Automatically Insulating Glass Production Line
Specifications
Model Number :
CAIG1825
Certification :
CE ISO
MOQ :
1Set
Price :
by negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15sets per month
Delivery Time :
20days
Packaging Details :
1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;
Max glass sheet :
1800x2500mm
Glass thickness :
3-18mm
IG glass thickness :
12-48mm
Insulation thickness :
6-24mm
Washing speed :
0-12m/min
Assembling speed :
8-48m/min
Service :
Oversea engineer service
Dimention :
16000x2500x2680
Function :
Window Glass Making
Product :
Automatically Double Glazing Machinery Insulating Glass Production Line for Window Glass Making
Description

Automatically Double Glazing Machinery Insulating Glass Production Line for Window Glass Making

Introduction

Care insulating glass production line is the standard machines for insulating glass producing, which composed of high speed glass cleaning machine and automatic glass assemble machine. It has all functions of inner-panel assembly, out-panel assembly and stepped glass process. This production line can process same edge glass, stepped glass, and double insulating glass and three layers glass with high efficiency. And other optional machines available, such as glass cutting machine, glass polishing machine, glass lifter, automatic sealant machine, spacer bending machine, sealant spreading machine, air filling machine etc. Our engineer will help you design and choose required and right facilities as to your actual requirements.

Details


Full Automatically Insulating Glass Production Line

Parameters:
Parameters of Care Insulating Glass Production Line
Model 　 CAIG1825 CAIG2030 CAIG2535
Power supply 380V 50Hz 3P (or customized)
Total power 　 18KW 22KW 27KW
Process glass scale Max glass sheet 1800x2500mm 2000x3000mm 2500×3500mm
Min glass sheet 300×450mm
Original glass thickness 3~18mm
IG glass sheet thickness 12-48mm
Insulation thickness 6-24mm
Working speed Washing speed 0-12m/min
Assemble speed 8-48m/min
Dimension L×W×H (mm) 16000x2500x2680 19000x2500x2880 22000×2500×3380
Net weight 6200kg 7200kg 8000kg
Note: various model with other processing scal customized available.
Advantages

1, Europe design concept, easy and intelligent operation;
2, World famous brands of key components, ensure stable operation and long service life;
3, Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale, various models and customization available;
5, Big output capacity, 1,000pcs output in one working day;
6, Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7, Automatic argon air gas filling while glass sheet assembling process;
8, PLC controlling system, touching screen operation;

Flow chart

Full Automatically Insulating Glass Production Line

Sample&Applicaton

Full Automatically Insulating Glass Production Line

Our Services

Full Automatically Insulating Glass Production Line

Packaging & Shipping

Full Automatically Insulating Glass Production Line
