Specifications
Brand Name :
Yinghang
Model Number :
1.9x1000mm
Place of Origin :
China
MOQ :
25tons per size
Price :
USD500-800/T
Payment Terms :
T/T,Western Union,MoneyGram,L/C
Supply Ability :
1000000 tons per year
Delivery Time :
10-15 work days
Certification :
ISO
Packaging Details :
Standard Export Package
Product Name :
Galvalume Steel Coils
Keywords :
Galvalume Steel Coils
Width :
600mm-1250mm
Thickness :
0.15mm-2.3mm
Surface treatment :
Dry;Oil;Chromate; AFP
Content :
55%Alu,43.5%Zinc,1.5%Si
Zinc Coating :
AZ50-185g/m2
Application :
Roofing,Construction,Structure,corrugated plate
Coil id :
508mm/610mm
Package :
Standard Export Package/or customer's requirement
Description

Prime Galvalume Steel Coils Big Spangle Hot Rolled Aluzinc Metal


Galvalume Steel Coils Product Information

Galvalume steel coils is a high value-added corrosion-resistant composite board formed by physical reaction of cold-rolled sheets.Its content is 55% aluminum, 43.5% zinc, and 1.5% silicon.Spray coating on the surface of cold-rolled plates has a good protective effect on the substrate.Mostly used for steel structure building roof and wall maintenance.The surface of the galvalume steel coils is characterized by smooth, flat and gorgeous stars, and its base color is silver white.The special coating structure makes it have excellent corrosion resistance.The normal service life of galvalume steel colis are up to 25a, and its heat resistance is good.

Galvalume Steel Coils Product Parameter

Product NameGalvalume Steel Coils
Coil Weight3-8Tons
Thickness0.15-2.3mm
Width600-1250mm
Coil ID508/610mm
Zinc CoatingAZ50-185g/m2
Content55%Alu,43.5%Zinc,1.5%Si
Surface TreamentLight Oil,Oil,Dry,Passivated,Anti Finger
HardnessSoft(normal),Hard,Full hard(G300-G550)
PackageStandard Export Package/Or customer's requirement
SpangleZero spangle,Regular spangle,Big spangle,Small spangle
MaterialASTMA792Type
CSB,DX51D,DX52D,DX53D,DX54D,SPCC,SPCD,G550,ect.

GradeYield
strength
MPa
Tensile
strength
MPa
Elongation after breaking A
80%not less than
R90 not
less than
N90not
less than
DX51D+A
Z
-270-50022--
DX52D+A
Z
140-300270-42026--
DX53D+A
Z
140-260270-38030--
DX54D+A
Z
120-220260-350361.60.18


Galvalume Steel Coils Product Characteristics

1.Economical:
Because the density of 55% AL-Zn is smaller than that of Zn, when the weight is the same and the thickness of the gold plating layer is the same, the area of the galvalume steel sheet is more than 3% larger than that of the galvanized steel sheet.
2.Easy to paint
Galvalume steel coils has excellent adhesion to paint and can be painted without pre-treatment and weathering.
3.Galvalume steel coils has a gorgeous silvery white surface.

Galvalume Steel Coils Product Application

Roofing,garages,soundproof walls,pipes and modular houses,mufflers,exhaust pipes,wiper accessories,refrigerator back panels,gas stoves,air conditioners,electronic microwave ovens,pipes for pig houses,chicken houses,granaries,greenhouses,etc.

Galvalume Steel Coils Product Package

1.Perfect seaworthy package,or as per customer's request.
2.Standard Seaworthy packing,3 layers of packing. Inside is kraft paper,the Middle is water plastic film, and outside is GI steel sheet to be covered by steel strips with lock,with inner coil sleeve.

Galvalume Steel Coils Product Pictures

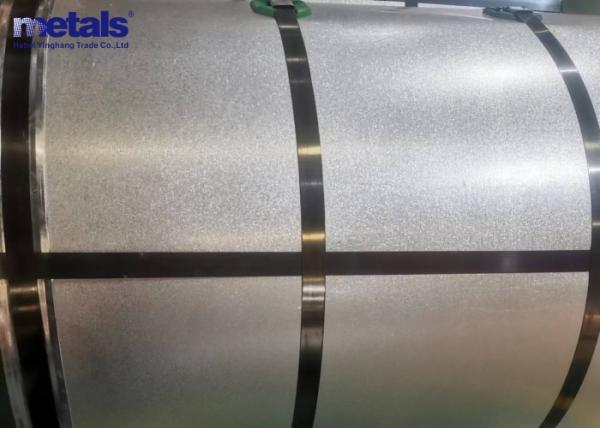

Galvalume Steel Coils AZ50-185g/m2 for Roofing and Construction

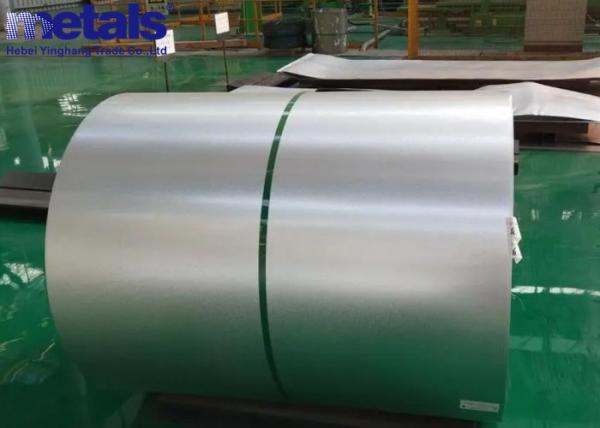

Galvalume Steel Coils AZ50-185g/m2 for Roofing and Construction

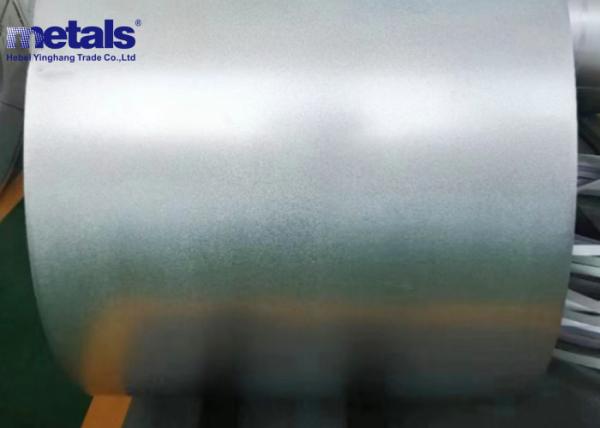

Galvalume Steel Coils AZ50-185g/m2 for Roofing and Construction
