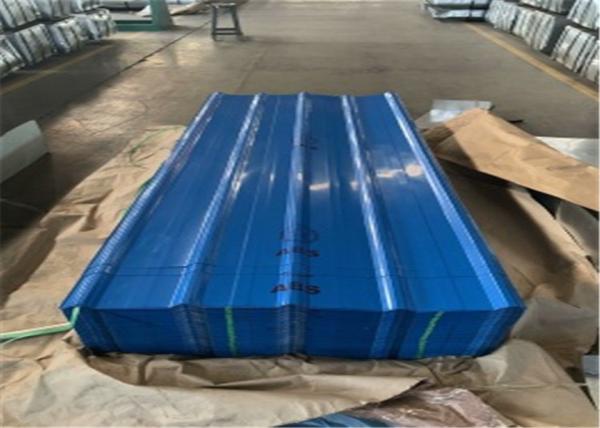

JIS G3312 CGCC 0.25mm Corrugated Steel Roof Sheets 820mm Galvanized Corrugated Sheet

1．Product Overview

JIS G3312 CGCC 0.25mm corrugated steel roof sheet is used for roofing, wall cladding, factory buildings, storage buildings, exhibition halls, gymnasiums, container plates, construction panels, and home appliance applications.

The product is produced from PPGI steel coils with prepainted coating and corrugated profiling. The corrugated structure improves sheet rigidity, while the color coated surface supports building appearance and corrosion protection.

2．Technical Solution

The roofing sheet is manufactured from prepainted steel coil and processed into corrugated sheet form according to required thickness, width, pitch, depth, color, and length.

Top paint coating is 15–20um, and back coating is 5–10um. PE or PVDF paint can be selected according to project requirements. Gloss can be adjusted according to customer request, including high gloss with sparkling granule appearance.

Thickness tolerance is ±0.02mm, and width tolerance is -0/+3mm, supporting dimensional control for roofing and wall panel installation.

3．Specifications

4．Application

This product is suitable for roofing and wall systems for large factory buildings, storage buildings, exhibition halls, gymnasiums, industrial buildings, civil buildings, warehouses, container plates, construction panels, and home appliance panels.

It can be used where CGCC corrugated steel roof sheets with prepainted surface and controlled dimensional tolerance are required.

5．Processing

The product supports prepainting, corrugating, cutting, profiling, gloss adjustment, high gloss surface processing, bundling, and standard export packing.

Customized thickness, width, length, pitch, corrugated depth, color, paint type, gloss, and packing method can be supplied according to project requirements.

6．Advantages

• 0.25mm thickness supports lightweight roofing and wall cladding applications.
• Prepainted coating provides decorative appearance and surface protection.
• Top coating of 15–20um and back coating of 5–10um support coating structure stability.
• Thickness tolerance of ±0.02mm supports consistent panel forming and installation.
• PE and PVDF paint options support different weather exposure and surface durability requirements.
• RAL colors and customer sample colors support project design matching.

7．How to Choose

• Choose 0.25mm thickness for lightweight roofing and economical wall cladding.
• Choose thicker sheets when higher rigidity is required.
• Choose PE coating for standard roofing and wall applications.
• Choose PVDF coating when better weather resistance is required.
• Choose high gloss surface when bright appearance is required.
• Choose 76mm pitch for common corrugated roofing applications.
• Confirm thickness, width, pitch, corrugated depth, coating type, color, gloss, and packing method before production.

8．FAQ

Q1．What thickness range can be supplied

The available thickness range is 0.13mm to 1.2mm.

Q2．What width options are available

665mm, 800mm, 840mm, and 900mm widths are available, with 820mm highlighted for this product.

Q3．What paint coating thickness is available

Top coating is 15–20um, and back coating is 5–10um.

Q4．What paint types can be supplied

PE and PVDF paint types can be supplied.

Q5．What are the main applications

The product is mainly used for roofs and walls of large factory buildings, storages, exhibition halls, gymnasiums, industrial buildings, and civil buildings.
