１．Product Overview

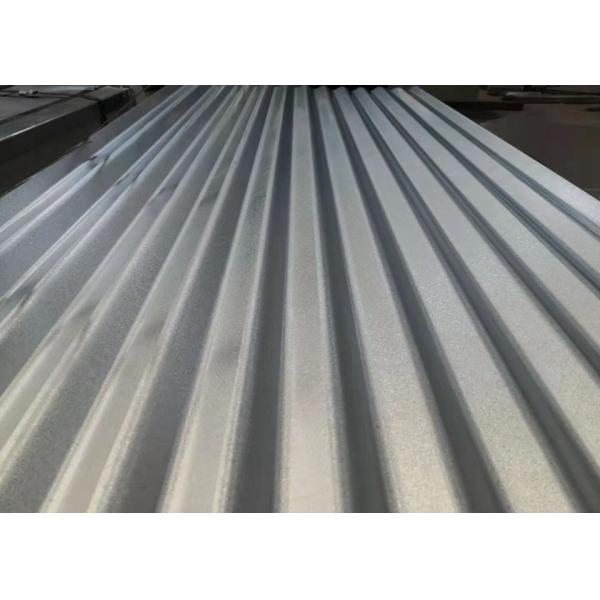

The 0.12mm DX51D AZ275 Galvalume Corrugated Roofing Sheet is designed for lightweight roofing and wall cladding applications where corrosion resistance and efficient coverage are required. Manufactured from aluminum-zinc coated steel substrate, the corrugated profile improves structural rigidity while maintaining low weight, making it suitable for industrial, commercial, agricultural, and prefabricated building projects.

２．Technical Solution

The sheet is produced from hot-dipped galvalume steel with an aluminum-zinc alloy coating that combines aluminum barrier protection and zinc sacrificial protection. The corrugated design increases load-bearing capacity and installation stability. The passivated surface treatment helps improve resistance to storage staining and enhances handling performance during transportation and installation.

３．Specifications

４．Application

Suitable for industrial buildings, warehouses, workshops, agricultural buildings, storage facilities, steel structure housing, prefabricated buildings, temporary shelters, wall cladding systems, roofing systems, and commercial construction projects.

５．Processing

The sheets can be cut to length, drilled, fastened, and installed using conventional roofing accessories. Proper side-lap and end-lap installation improves weather resistance and drainage performance. The lightweight design reduces transportation and installation workload on site.

６．Advantages

• Lightweight construction for easier installation
• Galvalume coating provides enhanced corrosion resistance
• Corrugated profile improves structural stiffness
• Suitable for roofing and wall cladding applications
• Passivated surface improves storage performance
• Compatible with steel structure building systems
• Cost-effective solution for large-area coverage

７．How to Choose

• Select sheet thickness according to wind load and span requirements.
• Choose effective width based on project coverage calculations.
• Consider AZ-coated galvalume sheets for environments requiring improved corrosion resistance.
• Verify profile dimensions to ensure compatibility with existing roofing structures.
• Evaluate expected service life and environmental conditions before selecting coating specifications.

８．FAQ

Q1．What is the effective coverage width of this roofing sheet
The effective installation width is 800mm.

Q2．What is the standard sheet length
The standard supplied length is 3000mm.

Q3．What surface treatment is used
The sheet is supplied with a passivated surface treatment.

Q4．Can this product be used for wall cladding
Yes, it is suitable for both roofing and wall cladding applications.

Q5．What building types commonly use this sheet
It is widely used in warehouses, workshops, agricultural facilities, steel structure housing, and commercial buildings.
