Specifications
Place of Origin :
China
Brand Name :
Huaye
Certification :
ISO14000
MOQ :
50 MT
Packaging Details :
Standard export packing
Delivery Time :
Within 45 days after receive LC or TT
Payment Terms :
L/C, T/T
Supply Ability :
10000MT
Commodity :
SGCC Galvanized Corrugated Roofing Sheet JIS G3302,Zinc coating 60-275g/m2
Steel Grade :
SGCC
Spangle :
Regular spangle or Min spangle
Thickness :
0.14-1.5mm
Effective width :
650/800/890/900/1050mm
Length :
1500—3800mm
Wave Width :
76mm
Height of Wave :
17mm–17.5mm
Standard :
JIS G3302
Description

SGCC Galvanized Corrugated Roofing Sheet

1) Specification

a. Thickness: 0.14-1.5mm

b. Effective width:650/800/890/900/1050mm

c. Length:1500—3800mm

d. Wave Width: 76mm

e. Height of Wave: 17mm–17.5mm

f. Double size galvanized, 60-275g/m2

2). Steel Grade: SGCC

3). Standard:JIS G3302

4). Surface: Regular spangle or Min spangle

Applications:
It is suitable for industrial and civil buildings, warehouse, special construction, large-span steel structure housing the roof, walls and interior and exterior decoration. A lightweight, high strength, color-rich, convenient construction, earthquake, fire, rain, long life, maintenance-free characteristics, has been widely used.
Product advantage:
Steel housing panels, mobile home panels.
(1) modeling beautiful novel, rich colors, decorative, flexible combination, can express different
(2) construction easy installation, reducing installation, transportation workload, shorten the construction period;
(3) The pressure plate is environmentally friendly building materials, recyclable, promote the use of steel sheeting
line with the policy of sustainable development of the national economy;
Competitive Advantage:
. Reliable and stable Quality
. Reasonable Price
. Fast delivery time
. More Than 10 Years export experience

Mill Test Certificate:

　 　 　 　 　 　 　
No. Heat No. Size:(mm) Quantity Chemical Composition(%) Physical Spec Final
　 　 　 ( MT) C Si Mn P S Tensile strength Enlongation Yield Strength 　
　 　 　 　 (Mpa) (%) (N/mm2) 　
1 120904220 0.18mmx1000mmx2000mm 　 0.06 0.03 0.21 0.014 0.008 365 38 235 A
2 120904230 0.20mmx1000mmx2000mm 　 0.06 0.02 0.20 0.015 0.009 365 38 230 A
3 120904240 0.25mmx1000mmx2000mm 　 0.06 0.02 0.21 0.016 0.007 360 37 235 A
4 120904250 0.30mmx1000mmx2000mm 　 0.06 0.02 0.18 0.014 0.007 370 37 245 A
　 　 　 　 　 　 　 　 　 　 　 　 　

Uasge:

1) Roof

2) Wall

3) Ceiling

4) Fence

Installation methods:

It is strongly recommended that sheets are laid with the side laps facing away from the direction of the prevailing wind. Where possible, the roof sheets should be fixed with the side laps facing away from the normal line of sight.

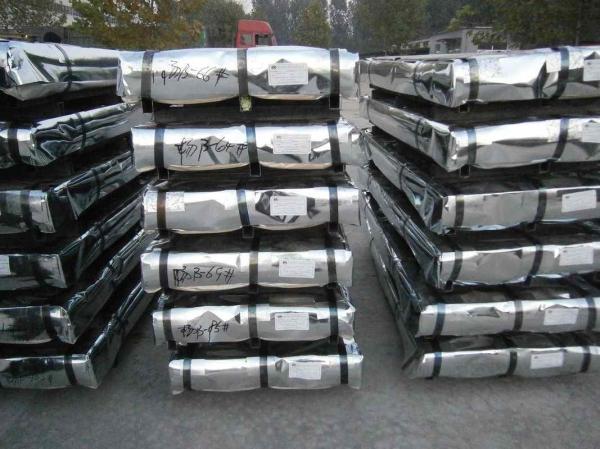

Package Picture:

60gm2 275gm2 Galvanized Corrugated Roofing Sheet Zinc Coating

60gm2 275gm2 Galvanized Corrugated Roofing Sheet Zinc Coating
