SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
Specifications
Brand Name :
RAYMOND
Certification :
ISO14000
Place of Origin :
China
MOQ :
50mt
Price :
USD500-800/MT
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
10000MT/ month
Delivery Time :
45days
Packaging Details :
standard export packing
Commodity :
Pre-painted steel coil
Zinc Coating :
120g/㎡
Top Surface :
15 Micron Polyester + 5 Micron Primer
Back Surface :
7 Micron + 5 Micron Primer.
Thickness :
0.70mm
Width :
1000mm
Color :
RAL 5019
Application :
Roofing,Structure,Flange Plate,Ship Plate,Container Plate
Description

SGCH RAL 5015 Z90 Color Painted Steel Coil Plate Sheet


PPGI (PPGL) Features:

Standard:
AiSi, ASTM, bs, DIN, GB, JIS
Grade:
SPCC, SPCD, SPCE, SGCC,DX51D
Place of Origin:
Hebei, China
Brand Name:
YD
Model Number:
1039
Type:
Steel Coil, Cold Rolled Steel Sheet
Technique:
Cold Rolled
Surface Treatment:
Coated
Application:
Structural,Roofing,Commercial use,Household Appliance,Industry
Special Use:
High-strength Steel Plate
Width:
900-1500mm
Length:
in coil
Tolerance:
±3‰
Product Name:
PPGI Steel Roofing Consumable PPGI Steel Coil
Coil ID:
508mm/610mm
Top Coating Thickness:
17-25um
Back Coating Thickness:
5-8um
Zinc Coating:
40-275gsmm
Color Options:
Ral Number or as per your request
PPGI Steel Coil:
Roofing Consumable
PPGI Steel Roofing Consumable:
PPGI
Color:
RAL Colors

MTC of pre painted galvanized steel coil

COMMODITY: PRE-PAINTED ZINC STEEL SHEET Contract NO. HYEXP2010-07-10A Date: SEPTEMBER-17-2010
Steel Grade: ACC JIS G3312, SOFT MATT Condition of Supply PRE-PAINTED ZINC STEEL SHEET
Certificate NO.		 100710A
No. Heat No. Size(mm) Zinc Coating: Color side A Coat property Steel property
Pain thick (μm) T-Bend (T) Impact (J) Gloss (GU) Pencil hard YS. Re Mpa UTS. Rm Mpa EL. A %
1 0710225 0.30X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 360 380 35
2 0710296 0.30X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 365 373 37
3 0710246 0.25X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 358 375 36
4 0710288 0.25X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 355 368 36

Application of Pre Painted Aluminum Coil:
1. Construction:roof for steel structure workshop,airport,storeroom
2. Shipbuilding industry
3. Vehicle manufacturing
4. Furniture industry
5. Electric industry etc.

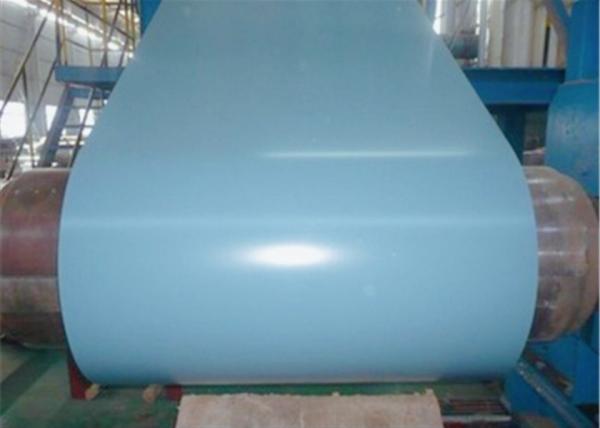

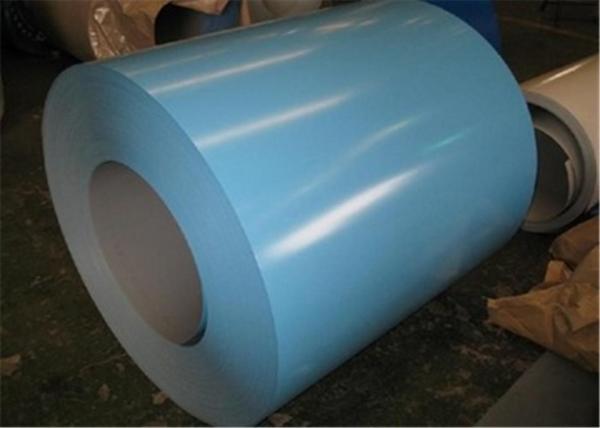

Product Picture

SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles

SGCH RAL 5015 Z90 Pre Painted Steel Coil For Roof Tiles
