76mm Corrugated Metal Roofing Sheets Galvanized Roofing Sheets

1．Product Overview

76mm corrugated metal roofing sheets are used for roofing, wall cladding, container plates, construction panels, home appliance panels, structural use, commercial buildings, industrial workshops, and general building applications.

The product is manufactured from hot dipped galvanized or color coated steel substrate. The 76mm wave width and 17mm wave height improve sheet rigidity, while galvanized and pre painted surface options support corrosion resistance and building appearance requirements.

2．Technical Solution

The corrugated roof panel is produced according to JIS G3322 CGLCC, ASTM A792, and EN 10169 DX51D+AZ standards.

The material uses AZ coating from 50g/m² to 180g/m². The top surface is 15–20 micron polyester plus 5 micron primer, and the back surface is 5–7 micron or 7–8 micron polyester plus 5 micron primer.

Bright or matt finishing can be selected according to project appearance requirements. RAL colors or customer sample colors can be supplied for roofing and wall panel design.

3．Specifications

4．Application

This product is suitable for roofing sheets, wall panels, galvanized roofing sheets, industrial buildings, civil buildings, warehouses, workshops, container plates, construction panels, household appliance panels, and general steel structure projects.

It can be used where hot dipped galvanized corrugated roofing panels require corrosion resistance, corrugated rigidity, and standard export packing.

5．Processing

The product supports hot dipping, color coating, corrugating, cutting, profiling, bright or matt finishing, bundling, and standard export packing.

Customized thickness, width, effective width, length, color, wave width, wave height, surface finish, and packing method can be supplied according to project requirements.

6．Advantages

• 76mm wave width and 17mm wave height improve roofing sheet rigidity and installation stability.
• 50–180g/m² zinc coating supports corrosion resistance for roofing and building applications.
• Top and back coating structures support surface protection for corrugated roof panels.
• Bright and matt finishes provide different architectural appearance options.
• Effective widths from 800mm to 900mm support common roofing layouts.

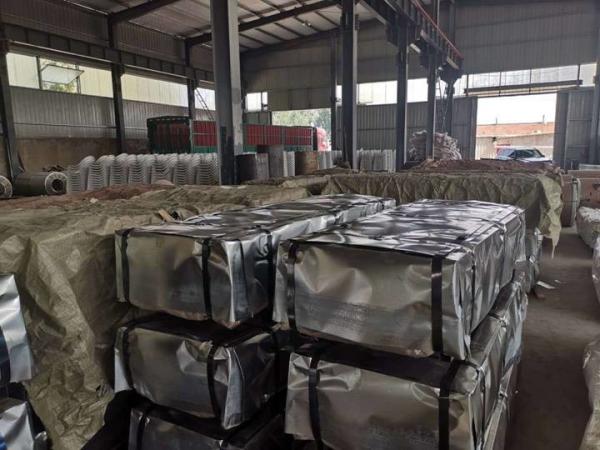

• Standard export packing supports container shipment and long-distance transport.

7．How to Choose

• Choose 0.14–0.30mm thickness for lightweight roofing and economical building applications.
• Choose thicker sheets when higher rigidity or stronger roofing performance is required.
• Choose higher zinc coating when stronger corrosion resistance is required.
• Choose bright finishing for a cleaner reflective surface.
• Choose matt finishing when lower-gloss appearance is required.
• Choose customized RAL color according to roofing and wall design.
• Confirm thickness, width, effective width, zinc coating, color, wave profile, and packing method before production.

8．FAQ

Q1．What is the standard wave profile

The standard wave width is 76mm and the height of wave is 17mm.

Q2．What thickness range can be supplied

The available thickness range is 0.14mm to 1.5mm.

Q3．What effective widths are available

800mm, 820mm, 840mm, 880mm, and 900mm effective widths are available.

Q4．What surface finishes can be supplied

Bright finishing and matt finishing are available.

Q5．What are the main applications

The product is mainly used for roofing, wall cladding, container plates, construction panels, household appliance panels, industrial buildings, and general structural applications.
