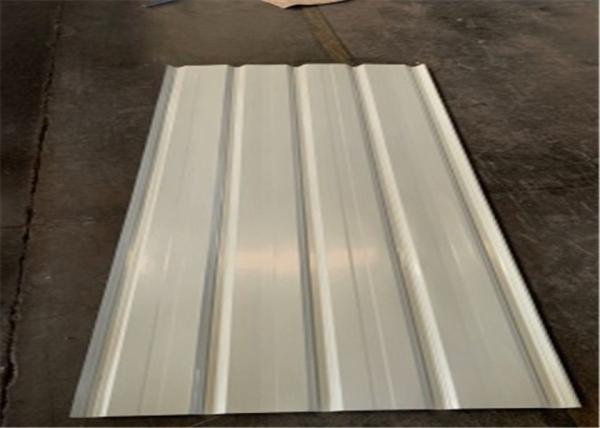

CGCC DX51D 900MM Pre Painted Corrugated Roofing Sheet Hot Dipped Galvanized Steel Coils

１．Product Overview

CGCC DX51D 900MM pre painted corrugated roofing sheet is used for roofing, wall cladding, structural buildings, commercial construction, household appliance panels, industrial workshops, and general building applications.

The product is made from hot dipped galvanized or galvalume steel substrate with color coated surface. The corrugated profile improves panel rigidity, while the pre painted surface provides decorative appearance and corrosion protection for roofing and wall systems.

２．Technical Solution

The roofing sheet is produced according to JIS G3322 CGLCC, ASTM A792, and EN 10169 DX51D+AZ standards.

The top surface uses 15–20 micron polyester plus 5 micron primer. The back surface uses 5–7 micron or 7–8 micron polyester plus 5 micron primer.

Zinc coating from 50g/m² to 180g/m² supports corrosion resistance for roofing and construction applications. PE, SMP, PVC, and PVDF painting materials can be selected according to weather exposure, surface performance, and project appearance requirements.

３．Specifications

４．Application

This product is suitable for roofing sheets, wall panels, steel structure buildings, commercial buildings, industrial workshops, warehouses, container plates, home appliance panels, and general construction projects.

It can also be used for structural use, roofing systems, industrial cladding, family buildings, and applications requiring color coated galvanized roofing sheet.

５．Processing

The product supports color coating, corrugating, cutting, profiling, bright or matt finishing, bundling, and export seaworthy packing.

Customized sheet width, effective width, length, color, painting material, surface finish, wave width, and wave height can be supplied according to project requirements.

６．Advantages

• 900mm width option supports common roofing and wall panel layouts.
• 76mm wave width and 17mm wave height improve roofing sheet rigidity.
• 50–180g/m² zinc coating supports corrosion resistance for construction applications.
• Top and back coating structures provide surface protection for roofing use.
• PE, SMP, PVC, and PVDF painting systems support different weather and appearance requirements.
• Export seaworthy packing supports container shipment and long-distance transport.

７．How to Choose

• Choose 900mm width when the project requires common roofing sheet coverage.
• Choose PE coating for standard roofing and construction applications.
• Choose SMP or PVDF coating when better weather resistance is required.
• Choose matt finishing for lower-gloss architectural appearance.
• Choose bright finishing for cleaner reflective appearance.
• Choose higher zinc coating when stronger corrosion resistance is required.
• Confirm thickness, width, effective width, zinc coating, paint type, color, wave profile, and packing method before production.

８．FAQ

Q1．What width options are available

600mm, 800mm, and 900mm widths are available.

Q2．What is the effective width range

Effective widths include 800mm, 820mm, 840mm, 880mm, and 900mm.

Q3．What coating materials can be supplied

PE, SMP, PVC, and PVDF coating materials can be supplied.

Q4．What is the zinc coating range

The zinc coating range is 50–180g/m².

Q5．What are the main applications

The product is mainly used for roofing, wall cladding, structural use, commercial buildings, household appliance panels, and industrial construction.
