CGCC 4 x 8 Corrugated Metal Sheets GI Corrugated Roofing Sheet for Industrial and Civil Buildings

1．Product Overview

CGCC corrugated metal sheets are used for industrial and civil buildings, roofing systems, wall cladding, structural use, commercial buildings, household appliance panels, warehouses, workshops, and general construction applications.

The product is made from color coated galvanized or galvalume steel substrate and formed into corrugated roofing sheets. The 76mm wave width and 17mm wave height improve panel rigidity, while the color coated surface supports corrosion resistance and building appearance requirements.

2．Technical Solution

The roofing sheet is produced according to JIS G3322 CGLCC, ASTM A792, and EN 10169 DX51D+AZ standards.

Zinc coating from 50g/m² to 180g/m² supports corrosion resistance for industrial and civil building applications. PE, SMP, PVC, and PVDF painting materials can be selected according to weather exposure, surface durability, and architectural appearance requirements.

Bright and matt finishing are available for different roof and wall design requirements.

3．Specifications

4．Application

This product is suitable for industrial buildings, civil buildings, roofing sheets, wall cladding, warehouses, steel structure workshops, commercial buildings, structural panels, household appliance panels, and general construction cladding.

It can be used where wear-resistant corrugated steel roof sheets with color coating and galvanized protection are required.

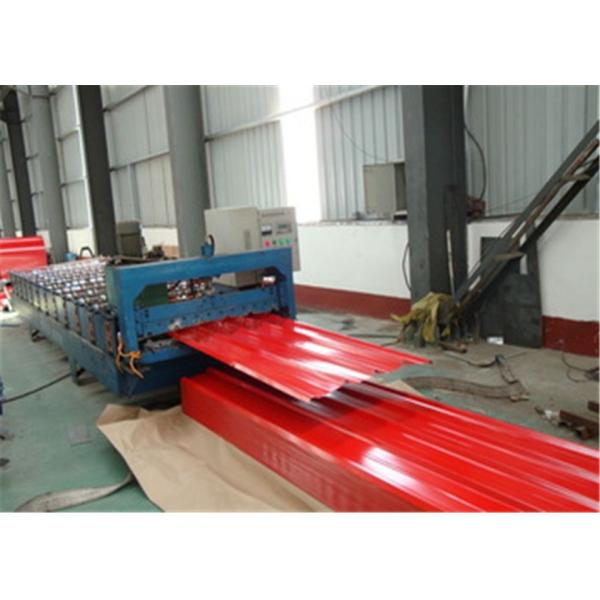

5．Processing

The product supports color coating, corrugating, cutting, profiling, bright or matt finishing, bundling, and export seaworthy packing.

Customized sheet width, length, color, wave width, wave height, painting material, surface finish, and packing method can be supplied according to project requirements.

6．Advantages

• Corrugated profile improves panel rigidity for roofing and wall applications.
• 50–180g/m² zinc coating supports corrosion resistance for building use.
• PE, SMP, PVC, and PVDF coating systems support different project exposure requirements.
• Bright and matt finishes provide flexible appearance options.
• 800–1250mm width range supports common roofing layouts and installation requirements.
• Export seaworthy packing supports container shipment and long-distance transport.

7．How to Choose

• Choose 0.14–0.30mm thickness for lightweight roofing and economical building applications.
• Choose thicker sheets when higher rigidity or stronger roofing performance is required.
• Choose higher zinc coating when stronger corrosion resistance is required.
• Choose PE coating for standard roofing and building use.
• Choose SMP or PVDF coating for improved weather resistance.
• Choose matt finishing for lower-gloss architectural appearance.
• Choose bright finishing for cleaner reflective appearance.
• Confirm thickness, width, zinc coating, paint type, color, wave profile, and packing method before production.

8．FAQ

Q1．What standards are available

JIS G3322 CGLCC, ASTM A792, and EN 10169 DX51D+AZ are available.

Q2．What thickness range can be supplied

The available thickness range is 0.14mm to 1.5mm.

Q3．What is the zinc coating range

The zinc coating range is 50–180g/m².

Q4．What paint materials can be supplied

PE, SMP, PVC, and PVDF paint materials can be supplied.

Q5．What are the main applications

The product is mainly used for industrial buildings, civil buildings, roofing, wall cladding, structural use, commercial buildings, and household appliance panels.
