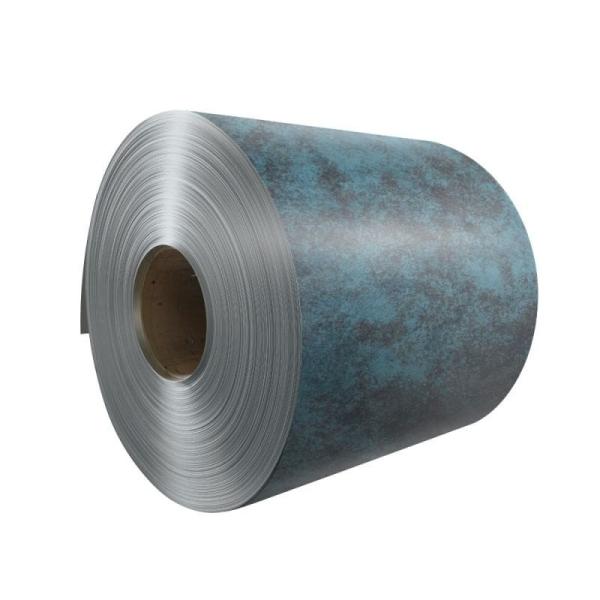

Imitation Rusted-Effect Aluminum Coil Coated Aluminum Coil
Product Specifications
Attribute | Value |
Type | Wood grain aluminum coil |
Material | 1050/3004/3105/5052 |
Coating | PE, PVDF |
Front coating | 20-25 microns/as your request |
Back coating | 10 microns |
Trade Terms | FOB/CIF/CFR/EXW |
Product Description
A high-end decorative aluminum material that replicates the authentic texture and coloration of rusted metal through advanced surface treatment technology. It combines the artistic appeal of weathered steel with the lightweight and corrosion-resistant properties of aluminum, offering an innovative solution for modern architecture and design.
Quality Control
- We test the bending and hardness property for every batch raw material, make sure the Alloy Temper can meet customer's requirement.
- During the production process, we use online inspection systems to monitor key parameters, such as coating thickness, uniformity, adhesion.
- Before delivery, we will select samples to test, including grid testing, impact testing, and bending testing. For some special products, we will carry out some chemical testing.
- We have MTC for every batch product, convenient for tracking and confirmation. Test records are kept by our laboratory staffs.
Advanced Equipment
- German SMS Group fully automated coating lines with ±0.01mm thickness precision, Line Speed: 120m/min (20% faster than industry average)
- MES system enables real-time production monitoring with ≥99.3% product qualification rate
- Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
Technology Patents
- Anti-Static Color Aluminum Coil and Continuous Production System
- Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
- Production Process for High Solar-Reflectance Color Aluminum Coils
- Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
- Low-Temperature Curing Technology
Technical Parameters
Parameter | Specification |
Thickness Range | 0.20 - 4.0mm |
Width Range | Max. 2700mm |
Alloy | 1050,1060, 3003, 3004,3105,5052 |
Paint System | PE, PVDF |
Color Options | RAL color or as the sample |
Key Features
Aesthetic Innovation

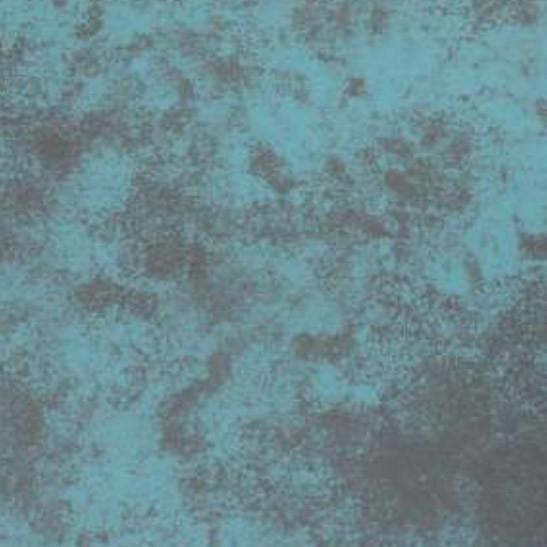

- Unique blue-toned oxidized rust simulation (Fenlan color system)
- Micro-textured surface replicates authentic patina effects
Superior Protection
- UV radiation (25+ years color retention)
- Chemical corrosion (acid rain, pollutants)
- Salt spray (C5-M marine environment rating)
Material Performance
- Base alloy: 3003/5052 aluminum (H14 temper)
- Thickness: 0.5-3.0mm (customizable)
- Fire Rating: A2-s1,d0 (non-combustible)
Comparison with Traditional Steel
Parameter | Aluminum Coil | Steel Coil |
Weight | Light (1/3 of steel) | Heavy |
Color Control | Permanent stability | Unpredictable aging |
Maintenance | Zero maintenance | Requires anti-rust treatment |
Fabrication | Direct cutting/bending | Special welding needed |
