1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
Specifications
Brand Name :
JERO
Model Number :
JC18
Certification :
SONCAP SABER SGS CNCA FTA QM
Place of Origin :
HENAN,CHINA
MOQ :
7 tons
Price :
3000-3150USD/TON
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
6,000 TONS PER MONTH
Delivery Time :
18-22 work days
Packaging Details :
Seaworthy Standard Export Package
Type :
Wood grain aluminum coil
Material :
1050/3004/3105
Coating :
PE, SMP, PVDF
Front coating :
15-25 microns/as your request
Back coating :
5+10 microns
Trade Terms :
FOB/CIF/CFR/EXW
Description

1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
Wood texture coated aluminum coil is a decorative building material that replicates the natural
appearance of wood through advanced roller coating or transfer printing techniques.It combines
the durability of metal with the aesthetic appeal of wood, making it ideal for modern architectural
applications.
Key Features
• Realistic Wood Effect: High-definition patterns (e.g., teak, oak, walnut) with textured finishes.

• Lightweight & Strong: Aluminum core (density: ~2.71g/cm³) ensures structural stability with
minimal weight.

• Weather Resistance: PVDF (for outdoor) or PE (for indoor) coatings provide UV protection,
corrosion resistance, and a lifespan of 10-20 years.

• Eco-Friendly: 100% recyclable, formaldehyde-free, compliant with LEED/GREEN standards.

• Easy Installation: Supports bending, punching, and mechanical fixing (e.g., riveting, dry-hanging).

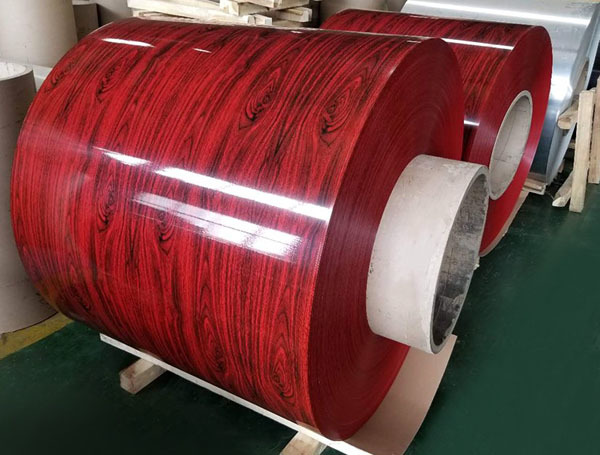

1.2mm Thickness Imitation Wood Roller Coated Aluminum Coil
Recommended Thickness by Application


ApplicationRecommended ThicknessRationale
Interior ceilings/walls0.5mm-0.8mmLightweight, cost-saving
Low-rise building facades1.0mm-1.5mmBasic wind load requirements
High-rise/coastal facades2.0mm-3.0mmWithstands strong winds/salt spray
Furniture/cabinet panels0.4mm-0.7mmEasy fabrication, smooth finish
Outdoor canopies/railings1.2mm-2.5mmHigh weather resistance needed



Our Company Advantages and Production Range
Advanced Equipment
• German SMS Group fully automated coating lines with ±0.01mm thickness precision,
Line Speed: 120m/min (20% faster than industry average)

• MES system enables real-time production monitoring with ≥99.3% product qualification rate

• Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents



♦ Anti-Static Color Aluminum Coil and Continuous Production System
♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
♦ Production Process for High Solar-Reflectance Color Aluminum Coils
♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
♦ Low-Temperature Curing Technology


Thickness Range0.20 - 5.0mm
Width RangeMax. 2700mm
Alloy1050,1060, 3003, 3004,3105,5052
Paint SystemPE, SMP, PVDF
Color OptionsRAL color or as the sample
