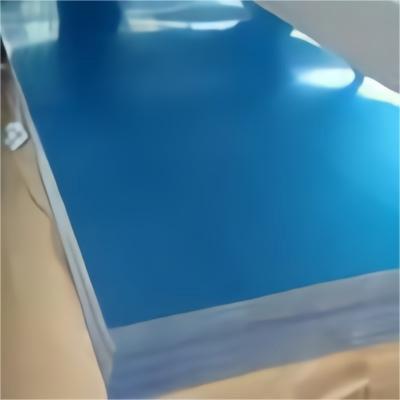

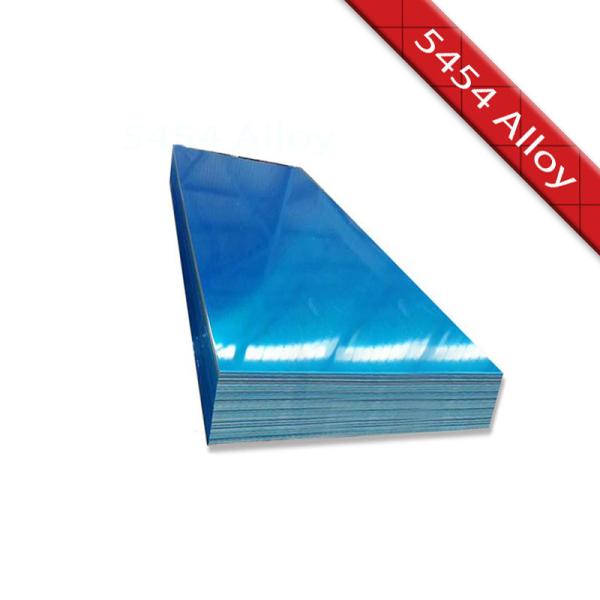

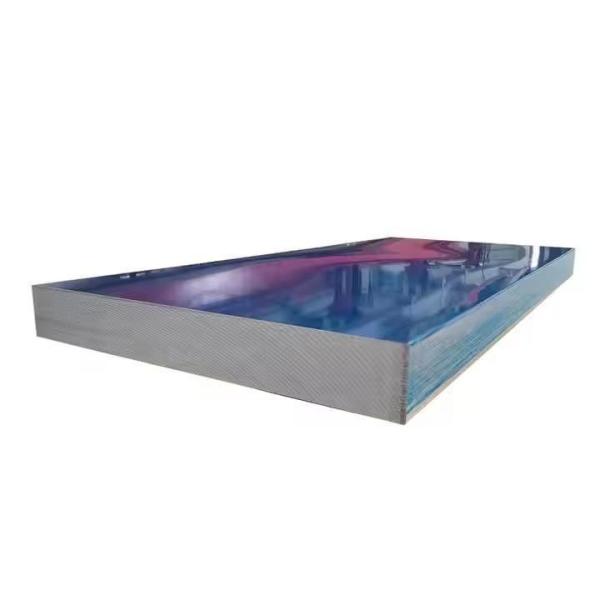

ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
Specifications
Brand Name :
JERO
Model Number :
JA36
Certification :
CE ISO IATF16949 IRIS EN45545
Place of Origin :
CHINA
MOQ :
8 TONS
Price :
US$3200-3400 Per Ton
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
2000 TONS PER MONTH
Delivery Time :
25-45 DAYS
Packaging Details :
3 LAYERS STANDARD EXPORT PACKAGE
Type :
Aluminum plate
Alloy :
5454
Temper :
H32
Size :
1 / 4"x96"x96"
Surface :
PVC film protection
Application :
tank trailer
Description
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
Product Specifications
Attribute Value
Type Aluminum plate
Alloy 5454
Temper H32
Size 1/4"x96"x96"
Surface PVC film protection
Application Tank trailer
Product Overview

5454 mirror-finished aluminum plates offer an optimal balance of lightness, corrosion resistance, and hygiene, making them ideal for food and chemical tankers. For detailed technical parameters (including fatigue life and welding specifications), please provide your specific operational requirements.

ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
Manufacturing Process
  • Extruding
  • Rolling
  • Machining
  • Hydraulic Pressure Bulging
Key Benefits
  • Lighter weight with larger volume capacity
  • Improved fuel efficiency and reduced CO₂ emissions
  • Higher overall strength through single-shaping extrusion profile technique
  • Excellent corrosion resistance and safety performance
  • High material recovery rate and low maintenance costs
Performance Comparison
Spec/Model Aluminum Tank Trailer Same Level Steel Structure Trailer
Weight 6.5T 11.2T
Material Recovery 100% 85%
Fuel Consumption/100km 30L 35L
Key Characteristics

Alloy Composition: Al-Mg alloy (5xxx series) with 2.4-3.0% Mg and 0.5-1.0% Mn, offering excellent corrosion resistance and medium-high strength.

Surface Finish: Mirror finish achieved via mechanical/electropolishing, enhancing aesthetics and cleanability.

Weldability: Compatible with MIG/TIG welding without requiring post-weld heat treatment.

Chemical Resistance: Resistant to saltwater, weak acids/alkalis, making it ideal for food-grade and chemical liquid transport.

Core Advantages
✔ Lightweight: 35% lighter than stainless steel (density: 2.68 g/cm³), reducing fuel consumption
✔ Stress Corrosion Resistance: Optimized Mg content avoids SCC risks seen in high-Mg alloys
✔ Cryogenic Performance: Maintains properties at -196°C, suitable for LNG tanks
✔ Hygienic Surface: Mirror finish minimizes residue buildup, compliant with FDA/EHEDG standards
Recommended Tempers
  • H32/H34: Partially hardened, balances strength (UTS≥250 MPa) and formability
  • O Temper: Annealed, optimal for deep drawing applications like tank heads
ASTM B209 AA5454 Mirror Finished Aluminum Plate For Liquid Tankers
Alloy Comparison for Tanker Applications
Property 5454 5083 6061
Strength Medium (H32: 250-300 MPa) High (H321: 270-350 MPa) Medium (T6: 310 MPa)
Corrosion Resistance Excellent (especially vs. chlorides) Excellent (marine-grade) Good (requires anodizing)
Weldability Excellent Excellent Good (PWHT needed)
Cost Moderate Moderate Low
Typical Use Food/chemical tankers Ships/pressure vessels Truck frames
Tanker Truck Applications
  • Tank Body: 5454-H32 mirror sheet (3-6mm thickness), welded without coating
  • Interior: Mirror polish reduces liquid retention, meeting sanitary standards
  • End-Use: Food transport (dairy, edible oils), mild chemicals (pH-neutral)
Manufacturing Process Flow
  • Cylindrical Shell Rolling
  • Head (End Cap) Forming
  • Baffle Fabrication
  • Welding & Joining
  • Assembly
