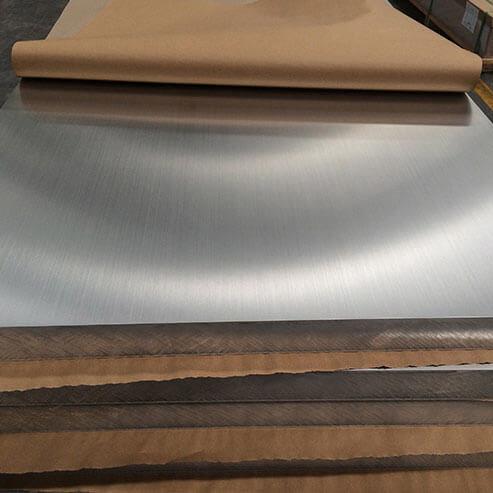

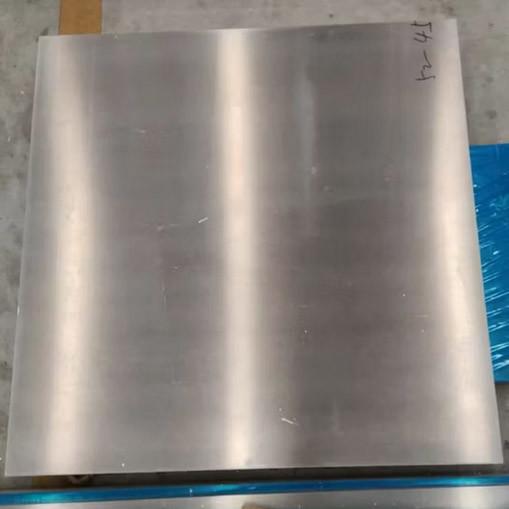

Chinese Standard High Strength Corrosion Resistance 5A06 Aluminum Alloy Sheet

5A06 aluminum alloy sheet is a corrosion-resistant Al-Mg-Mn series alloy, known for its high

strength, excellent weldability, and outstanding corrosion resistance, making it particularly

suitable for marine environments, chemical equipment, and cryogenic applications.

Key Properties

♦ Chemical Composition

Al-Mg-Mn series alloy containing Mg (5.8-6.8%) and Mn (0.5-0.8%), with trace Ti and Be

♦ Mechanical Properties

Tensile strength: ≥315 MPa (H112 state), up to 400 MPa after cold working

♦ Elongation

≥15% (excellent for cold forming)

♦ Low-temperature performance

Maintains good toughness even at -196°C

♦ Corrosion Resistance

Excellent seawater corrosion resistance

Outstanding stress corrosion cracking resistance

Main Advantages

✔ Superior corrosion resistance (especially marine environments)

✔ High strength-to-weight ratio (density ~2.64 g/cm³)

✔ Excellent weldability with minimal post-weld treatment

✔ Good cryogenic performance for LNG/extreme cold applications

Common Thicknesses

Marine/Shipbuilding: 3-25 mm (hulls, decks), 1-6 mm (bulkheads)

Chemical Industry: 2-12 mm (storage tanks, pipelines)

Transportation: 1.5-8 mm (railway carriages, truck bodies)

Other Applications: 0.5-3 mm (decorative panels)

Typical Applications

• Marine Engineering: Ship hulls, offshore platforms, deck structures

• Energy/Chemical: LNG storage tanks, chemical processing equipment

• Transportation: High-speed train components, special vehicle frames

• Aerospace/Defense: Missile components, cryogenic fuel tanks

• Architecture: Marine-grade facades, coastal structures

Comparison with Similar Alloys

Our company advantages

Technological & Production Strengths:

R&D Capabilities: Own a national-level corporate technology center and contributes to industry

standards.

Production Scale: We had an annual capacity exceeding 1 million tons of aluminium large-scale

rolling mills.

Production Ability: We can produce the great Aluminum material for automobile, railway transportation,

marine, aerospace etc fields, and obtained the relevant certification.

Our factory own the world advanced equipments, include:
