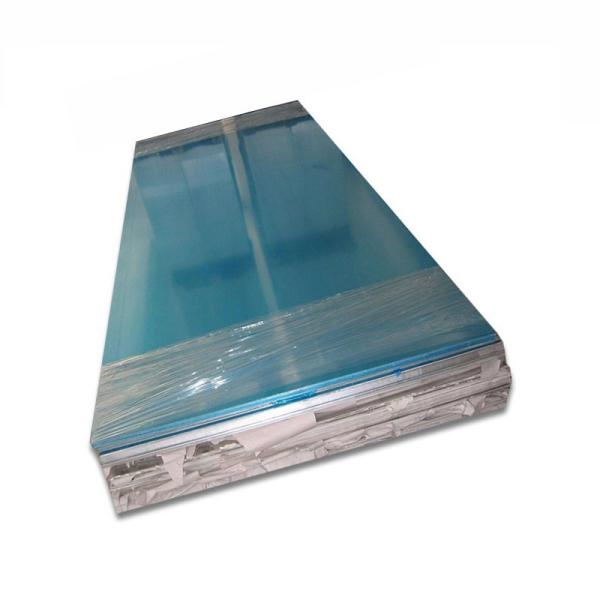

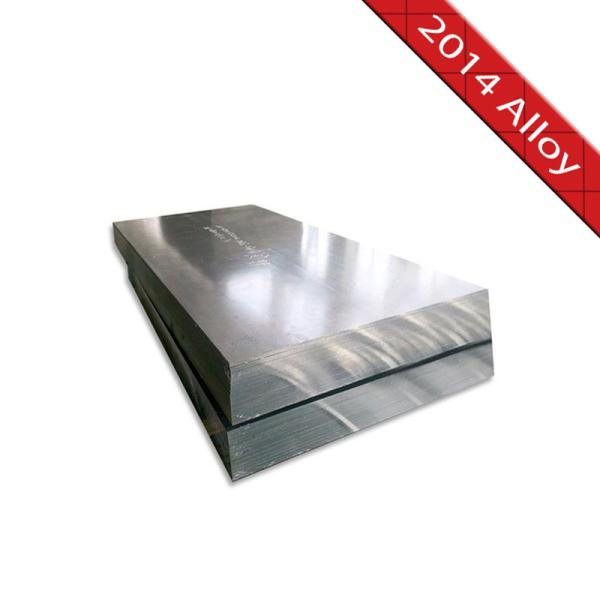

2xxx Series 2014 Aluminum Alloy Sheet For Aerospace Industry

2014 alloy is primarily used in aerospace/military applications where high strength is critical.

For commercial uses, modified 2XXX/7XXX alloys are often preferred due to better corrosion

resistance.

Key Properties

Chemical Composition

Al-Cu-Mg-Si series alloy containing:

Cu (3.9-5.0%)

Mg (0.2-0.8%)

Si (0.5-1.2%)

Mechanical Properties

Tensile strength:

T6 temper: ≥480 MPa

T4 temper: ≥425 MPa

Elongation: 8-10% (T6)

Hardness: Up to 135 HB (T6)

Corrosion Resistance: Poor - requires surface protection

Heat Treatment: Responds well to T4/T6 tempers

Common Tempers

Temper Process Characteristics

T4 Solution heat treated + naturally aged High strength + good ductility

T6 Solution heat treated + artificially aged Maximum strength/hardness

O Annealed Soft state for forming

Main Advantages

✔ High strength-to-weight ratio

✔ Excellent machinability

✔ Good heat resistance (150-250°C service)

✔ Suitable for precision machining

Typical Thicknesses

Aerospace: 1.5-50 mm

Machinery: 5-30 mm

Transportation: 2-20 mm

Tooling: 10-100 mm

Primary Applications

♦ Aircraft structural components

♦ Military armor/defense systems

♦ High-stress mechanical parts

♦ Racing vehicle components

Limitations

⚠ Poor weldability (requires special techniques)

⚠ Low corrosion resistance (needs coating)

⚠ Fast work hardening (may require annealing)

our company advantages

Technological & Production Strengths:

R&D Capabilities: Own a national-level corporate technology center and contributes to industry

standards.

Production Scale: We had an annual capacity exceeding 1 million tons of aluminium large-scale

rolling mills.

Production Ability: We can produce the great Aluminum material for automobile, railway transportation,

marine, aerospace etc fields, and obtained the relevant certification.

Our factory own the world advanced equipments, include:
