Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL
Specifications
Brand Name :
Zhongli Brand
Certification :
CE,ISO9001,SGS,CQC......
Place of Origin :
Shandong,China
MOQ :
1 Ton
Price :
USD 480-760 Per Ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Tons per Month
Delivery Time :
8-14 days
Packaging Details :
Standard Export Package
Zin Coating :
15-375g/m2
Surface :
PE Coated
Color :
According Customer Request
Hardness :
Full Hard
Thickness :
0.21-0.50mm
Width :
1000mm 1250mm 1200mm or as customer's request
Ral Color :
All Ral Color
Processing Service :
Cutting,Bending,Decoiling,Punching,Welding
Length :
6m/12m or customized
Description
What is Prepainted Aluminized zinc steel?

Aluminized zinc sheet thick steel plate means that in order to avoid corrosion of the surface of the thick steel plate and increase its service life, the surface of the thick steel plate coat with a layer of metal zinc and aluminum. This kind of galvanized cold-rolled steel sheet is called galvalume.


Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL

Specification of Pre-Painted Gavalume Steel Coils (PPGL)

Grade CGCC,CGCH,G550,DX51D,DX52D,DX53D
Thickness 0.12-4.0mm
Width 600-1500mm
Zinc Coating Z40-600 g/m2
Coating Thickness Top-15-35, Back 5-15
Color RAL Color
Surface

Matt,High gloss,Color with two sides,Wrinkle,

Wooden color,Marble
Paint Brand Nippon Akzo Nobel Kcc
Coil Weight 2-5tons
Coil ID 508/610 mm

Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL

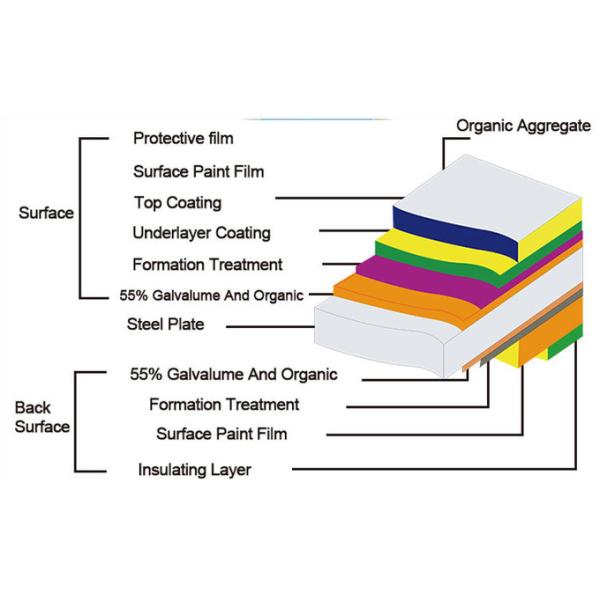

Prepainted Galvalume Steel Coil/PPGL coating film introduction

Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL

Top paint film:

RPE, SMP, HDP,PVDF,Other paints.
Function: It functions as a sunlight proof cover, especially prevent the destroy by the ultraviolet rays. When the top paint film reaches a certain thickness, it forms a compact cover, and reduce the water and oxygen permeability.

Primer paint film:
Polyurethane, Epoxy, PE
Function:Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off. There is corrosion inhibitor which is corrosion resistance. Polyurethane is necessary for higher processing flexibility and weather resistance requirements.

Passivation layer
Function:Increase the adhesion between the metallic layer and coating film. Extend life span also.

Metallic coating
Function:The metallic coating provides the fundamental protection for the steel.
The popular coating metal are galvanize, galvalume and other alloyed metals.

Substrate steel
Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.

Back paint film
Epoxy, Modified PE.
Back paint can sustain color in good condition and has good binding.

Prepainted Steel Applications

PPGL have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.

  1. Building
  2. Roofing
  3. Transport
  4. Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
  5. Solar Energy
  6. Furniture

Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL

What is the difference between galvalume and galvanized steel?

Galvanized steel is made completely of zinc, while galvalume includes aluminum, zinc, and a small amount of silicon. This provides superior durability and resistance to corrosion in comparison to galvanized coating.

Cold Rolled CGCC Prepainted Galvanized Steel Coils 0.50mm Color Coated HDP PPGL

Package & Delivery

Packing

 1.Generally package:Antiwater paper+strapped with min three strapping strips.
2.Standard exporting package. Anti-water paper and plastic+covered by iron sheet+ strapped with min three strapping strips.
3.Excellent package: Anti-water paper and plastic film+ covered by iron sheet+ strapped with min three strapping strips+fixed on
the iron or wooden pallets by strapping strips.
Shipping
 1.Shipping by containers
2.Shipping by bulk ship

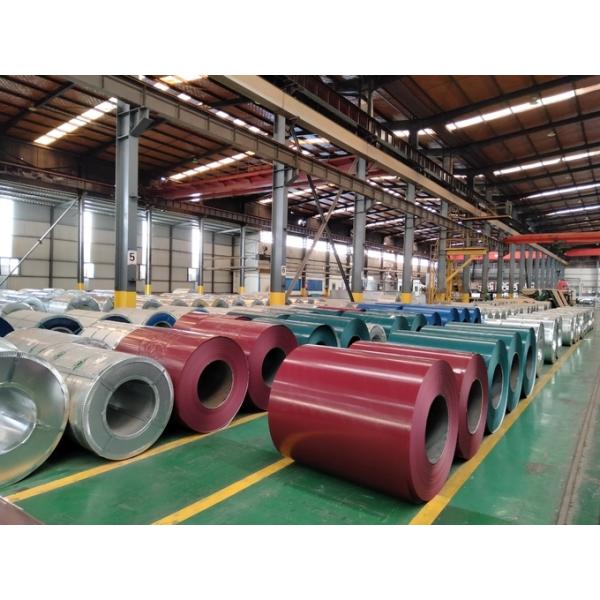

Product Display
Differences between PPGI and PPGL
Definition and Application
The applications of PPGI Steel Coils are numerous, especially in fabrication and manufacturing environments. Construction workers
mostly use Galvanized Coils for Roofing applications. They are also used as sheet metal brakes in buildings.The biggest use of GI
Sheets is for construction projects in homes, offices, and factories. They resist corrosion,heat, and are easily installable,
making them best suited for roofing. They are also used in the production of corrugated panels, drywall panel profiles,
ventilation systems, etc.
1. Wind And Solar Industries
2. Agriculture Industry
3. Automotive Industry
4. Construction Industry
5. Telecommunication Industry
