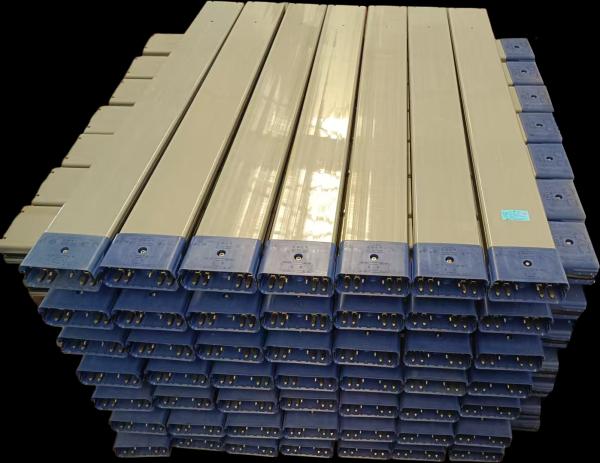

Type A Sliding Contact Line with High-quality Polymer Insulation, Customizable Length, and 12mm² Cross-Section
Type A Sliding Contact Line with High-quality Polymer Insulation, Customizable Length, and 12mm² Cross-Section
Specifications
Model Number :
12-60mm²
Length :
Customizable per project requirements
Place of Origin :
China
Cross-sectional area :
12mm²
Brand Name :
GHEC
Certification :
18623Q00414R0S
Insulation :
High-quality Polymer
Description
Type A Sliding Contact Line
Product Overview

The Type A sliding contact line is designed for reliable power transmission in industrial applications, featuring a robust construction suitable for demanding environments.

Technical Specifications
Model: Type A Sliding Contact Line
Cross Section: 12mm²
Application: Industrial power transmission systems
Product Overview

The Type A Sliding Contact Line is a high‑performance, fully insulated conductor bar designed for reliable power transmission to moving machinery in industrial material handling systems. Featuring a 12 mm² copper conductor core and a premium polymer insulation jacket, this contact line delivers excellent electrical conductivity while providing robust protection against environmental hazards, mechanical wear, and accidental contact. Its modular design and customizable length make it adaptable to virtually any track layout – from short monorail sections to kilometre‑long crane runways.

Engineered for continuous operation in demanding environments, the Type A system ensures stable, low‑impedance current collection for overhead cranes, hoists, automated guided vehicles (AGVs), and conveyor lines.

Key Features
⚡ High‑Conductivity Copper Core (12 mm²)
The conductor is manufactured from high‑purity electrolytic copper (Cu‑ETP), offering a nominal cross‑section of 12 mm² with low electrical resistance (≤ 1.8 Ω/km at 20 °C). This ensures minimal voltage drop and supports current ratings up to 63 A (depending on duty cycle), making it suitable for both light‑ and medium‑duty power applications.
