Specifications
Electrothermal stability :
20 Times The Rated 1st Imes Rated For 1s
Net Weight Per Single Rail :
5.55kg
Brand Name :
GHEC
Rated peak withstand current :
6.5KA
Rated Current :
60A
Effective Service Length :
3016mm
Model Number :
GHHX-B-12
vibration and shock resistance :
10-2000HZ
Place Of Origin :
China
Equivalent Copper Cable Cross-section :
12mm²
Price :
Interview
Number of Poles :
5P
Description

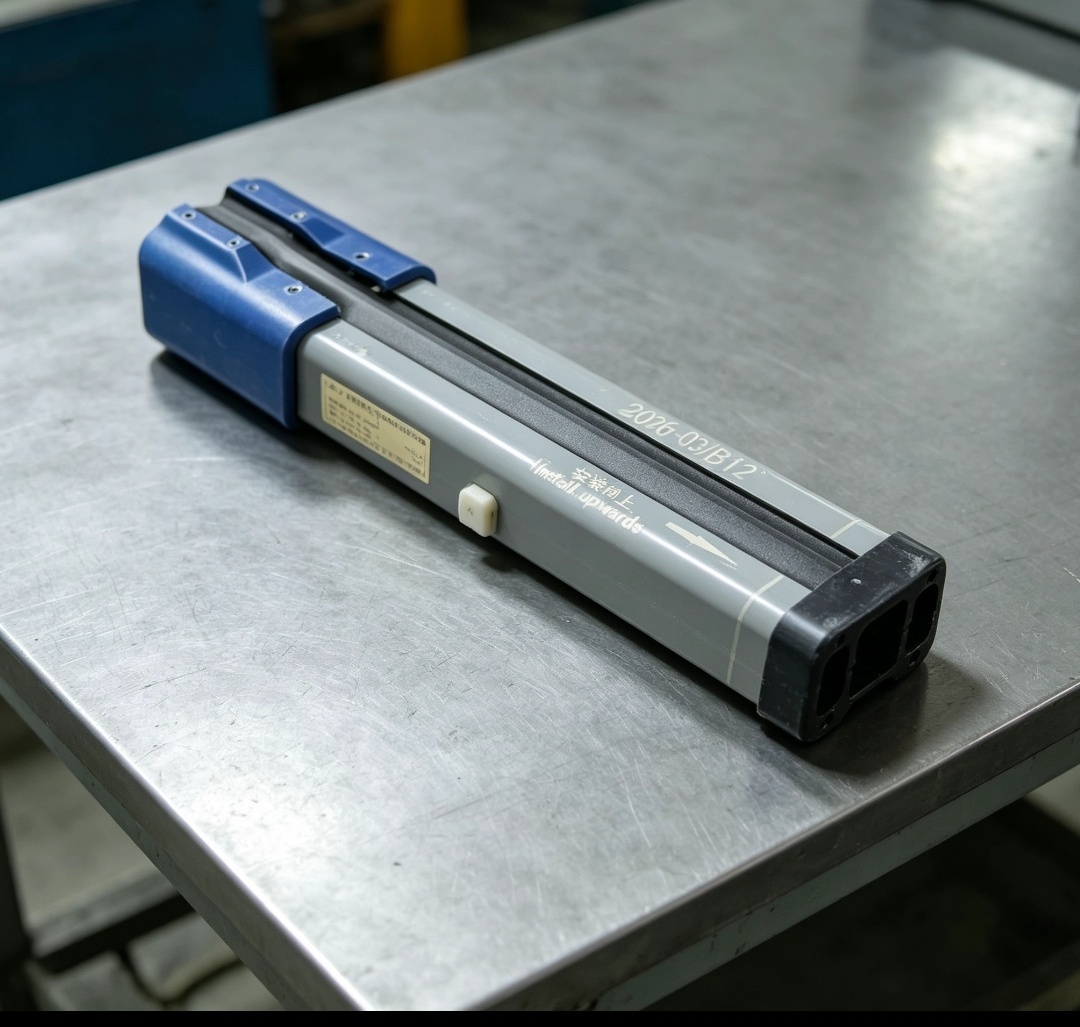

Waterproof Sliding Contact Line - GHHX-B-12
Product Overview
The Waterproof Sliding Contact Line is an advanced electrical conduction solution designed for continuous and stable performance in demanding industrial and commercial applications. Engineered with exceptional electrothermal stability and environmental resilience, this product ensures reliable operation in challenging conditions.
Key Features
  • Withstands 20 times rated current for 1 second
  • Flame Retardancy: Level V0
  • IP54 waterproof rating (customizable)
  • Operates in temperatures from -25℃ to 40℃
  • Withstands acceleration up to 49 m/s²
  • Compliant with GB/T 7251.6-2015 standards
  • Sealed sliding contact system for reliable operation
Technical Specifications
Parameter Specification
Rated Current 60 A
Rated Peak Withstand Current 6.5 KA
Effective Service Length 3016 mm
Net Weight per Single Rail 5.55 kg
Equivalent Copper Cable Cross-section 12 mm²

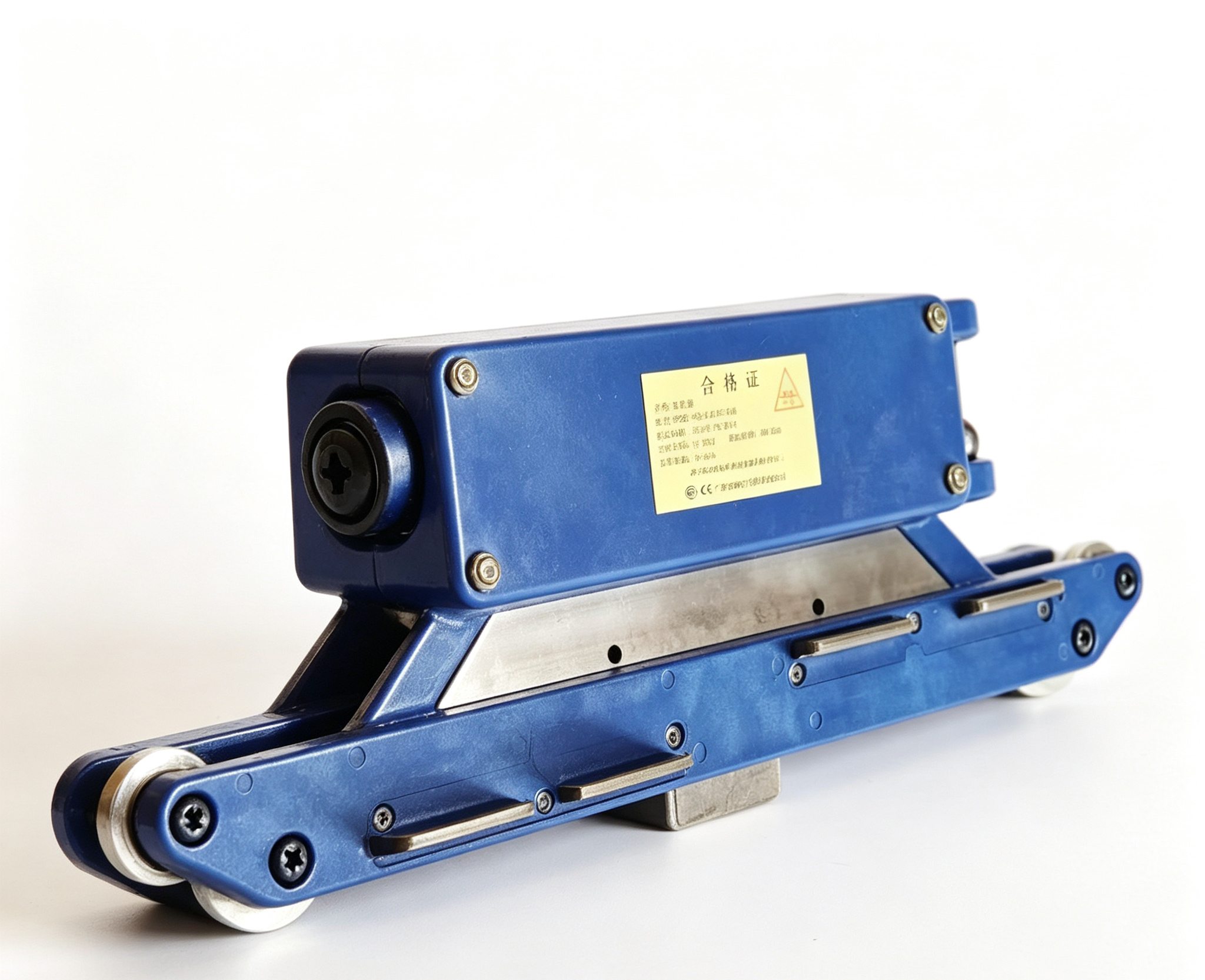

Current Collectors 1 piece
Environmental Operating Range -25℃ to 40℃
Relative Humidity Up to 100% at 25℃
Vibration and Shock Resistance 10-2000 Hz
Corrosion Stability Acid-resistant, Alkali-resistant, Salt Spray Corrosion-resistant
Applications
The GHEC GHHX-B-12 Waterproof Sliding Current Conductor is ideal for applications requiring robust electrical connectivity in challenging environments:
  • Factory automation systems
  • Overhead cranes and conveyor systems
  • Port terminals and warehouse operations
  • Mining operations
  • Electric railways and trolleybus systems
  • Outdoor power distribution lines
Customization Options
GHEC offers customized solutions for the Waterproof Sliding Contact Line with enhanced specifications:
• Insulation resistance: Over 5MΩ between poles
• Current withstand capacity: Up to 4.5KA
• Incoming cable support: 16mm² copper core
• Custom protection ratings available
Frequently Asked Questions
What is the brand and model number of this Waterproof Sliding Contact Line?
The brand name is GHEC and the model number is GHHX-B-12.
Where is the Waterproof Sliding Contact Line manufactured?
This product is manufactured in China.
Is the sliding contact line suitable for outdoor use?
Yes, the Waterproof Sliding Contact Line is designed to be water-resistant, making it suitable for outdoor and harsh environmental conditions.
How can I get pricing information?
Pricing is available upon request through direct consultation with our sales team.
What are the common applications?
It is commonly used in electrical systems requiring reliable sliding contacts in wet or outdoor environments, such as cranes, hoists, and automated machinery.
