Specifications
Brand Name :
Huawei
Model Number :
TP48200B
Certification :
CE , UL ,EN
Place of Origin :
China
MOQ :
1 set
Price :
1300-1500 USD/Set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/Month
Delivery Time :
30 days
Packaging Details :

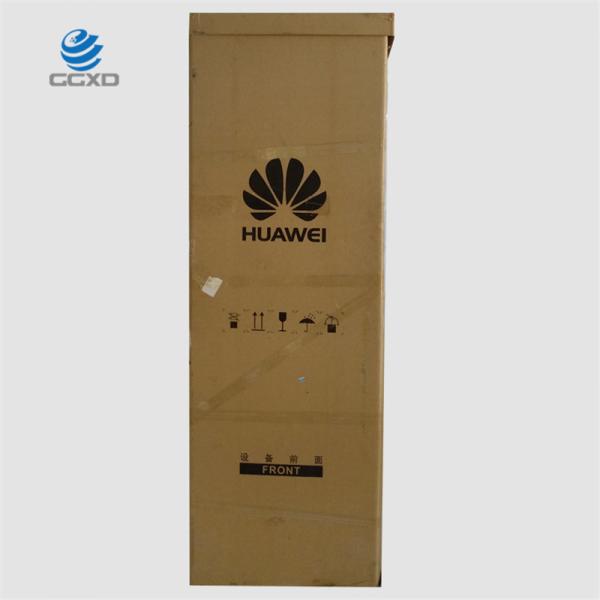

carton box
Dimension :
600mm(W)×600mm(D)×2000mm(H)
Efficiency :
>92%
System out put capacity :
Max 12KW
Rectifier Module :
3000W
Description

Huawei Indoor Integrated Power System TP48200B-N20B2

Intruction

TP48200B-N20B2/N20B3 is an AC/DC indoor integrated power system with 200A rated output current. It can accommodate 4x1U 48V/50A high
efficiency rectifiers/solar supply units, 2~4 groups of batteries and 0~16U user space in maximum
Fetures
Compatible with solar supply unit (SSU), making efficient use of solarenergy to save electricity consumption in maximum
1U rectifier: high density(42.7W/inch3 ), high efficiency( >96%), excellent high temperature performance(fully output below 55℃)
Can accommodate 2~4 groups of batteries and 0~16U user space for main equipments/48-24V secondary power, providing better use of space
Compatible with high-temperature batteries, saving site cooling cost by
increasing cooling temperature
Intelligent battery management functions, helping prolong battery lifespan
Battery anti-reversed polarity function to avoid the danger caused by reversed polarity connection
Abundant I/O ports, including 5 AI, 9 DI and 8 dry contract output
Realizing centralized and remote site monitoring by zero additional hardware cost through in-band transmission
