10 - 50mm Height Roof Garden Drainage Board Anti Seepage
10 - 50mm Height Roof Garden Drainage Board Anti Seepage
10 - 50mm Height Roof Garden Drainage Board Anti Seepage
10 - 50mm Height Roof Garden Drainage Board Anti Seepage
Specifications
Brand Name :
zhongloo
Model Number :
PSB
Place of Origin :
China
MOQ :
1000 Per square meter
Price :
USD 0.63-1.62 per square meter
Payment Terms :
L/C, T/T
Supply Ability :
10000 square meter
Delivery Time :
8-12 work days
Packaging Details :
Customer's Request
Product name :
Drainage Board
Material :
HDPE
Application :
Roof
Color :
Black Green
Height :
10~50mm
Function :
Anti-seepage
Description

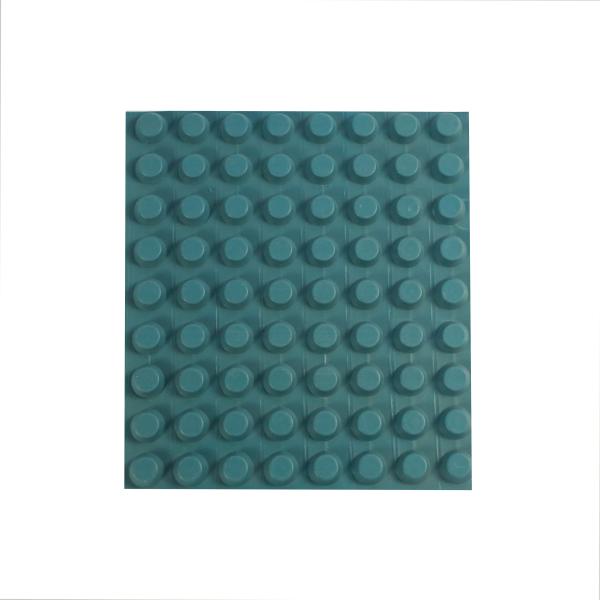

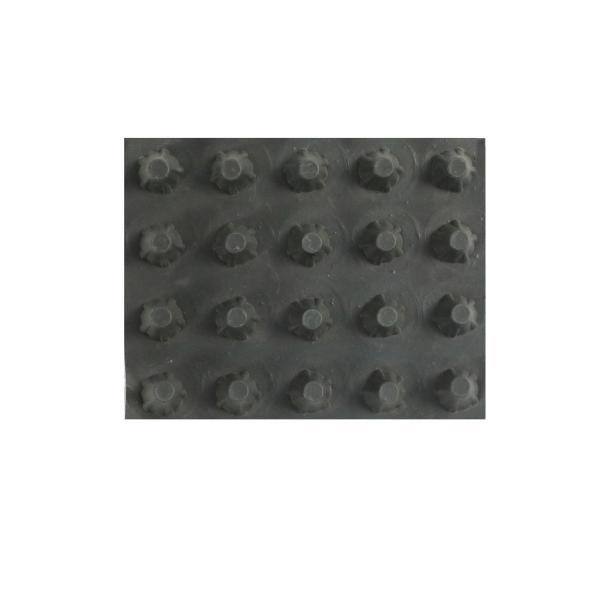

10~50mm Dimple Height Roof Garden Drainage Board

Product Deacription

The bottom plate of the drainage board is made of HIPS and HDPE, which can resist long-term high pressure. There will be no deformation. This long-term compression resistance can not only withstand the weight and load of the concrete floor, but also withstand the external pressure and impact force that cannot be avoided during the construction period, such as vehicles, workers and concrete pouring impulse. Keep the bottom plate out of deformation for a long time, so as to maintain the original displacement. The filter layer soil fabric on the bottom plate is used to ensure that the drainage channel is not blocked by foreign matter, such as backfill soil particles or concrete.
Technical specification
Plastic drainage board
item
Specification
Tension at 10% elongation (N/100mm) ≥
350
Maximum pulling force (N/100mm) ≥
600
Elongation at break /% ≥
25
Tear performance/N ≥
100
Compression performance
Maximum strength when compression rate is 20%/KPa ≥
150
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Heat aging
Tensile retention at 10% elongation≥
80
Maximum tensile retention rate/(N/100mm) /% ≥
90
Elongation at break retention rate /% ≥
70
Maximum strength retention rate when the compression rate is 20% ≥
90
Extreme compression performance
No break
Low temperature flexibility
-10℃ no cracks
Longitudinal water flow (test pressure 150KPa) (cm²/s) ≥
10

Product Usages

1. Forest Park engineering: garage roof greening, roof garden, roof greening, football field, golf course, bathing beach engineering, etc.
2. Municipal works: road subgrade, subway tunnel.
3. Construction engineering: upper or lower layer of building foundation, internal and external walls of basement, seepage prevention and heat insulation layer of roof, etc. 4. Traffic engineering: road, railway subgrade, embankment and slope protection layer, etc.
