Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering
Specifications
Place of Origin :
China
Brand Name :
Honghuan
Model Number :
SWG
MOQ :
50000
Material :
Polypropylene
Unit mass :
390gsm
Roll Width :
5.85m
Roll Length :
100m
Mass Per Unit Area :
200g/m2
Tensile strength MD :
40kN/m
Tensile strength CD :
28kN/m
Elongation MD :
25%
Elongation CD :
25%
Apparent Opening Size :
0.41mm
Water Flow Rate :
160l/min/m2
Trapezoidal Tear Strength :
0.34kN
CBR Ejection Force :
3.20kN
UV Resistance :
70% retained after 500 hours
Roll Weight :
117Kg
Description

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Product Description

Woven Geotextile SWG®

Split Film Yarn Woven Geotextile are made by weaving flat strands created by first slitting a plastic sheet. Woven

split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These

geotextiles aid in construction over soft or weak soils by providing separation and stabilization.

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental EngineeringPolypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Product Specifications

PROPERTIES

TEST METHOD

UNIT

MINIMUM AVERAGE VALUE

SWG12

SWG20

SWG24

SWG34

SWG40

SWG52

SWG58

Mass Per Unit Area

ASTM D 5261

g/m2

120

200

240

340

400

520

580

Tensile strength, MD

ASTM D 4632

kN/m

20

40

50

80

80

140

160

Tensile strength, CD

ASTM D 4632

kN/m

15

28

35

56

80

100

110

Elongation, MD

ASTM D 4632

%

25

25

25

25

25

25

25

Elongation, CD

ASTM D 4632

%

25

25

25

25

25

25

25

Apparent Opening Size

ASTM D 4751

mm

0.41

0.41

0.41

0.41

0.41

0.41

0.41

Permittivity

ASTM D 4491

sec-1

NA

NA

NA

NA

NA

NA

NA

Water Flow Rate

ASTM D 4491

l/min/m2

160

160

160

160

160

160

160

Trapezoidal Tear Strength

ASTM D 4533

kN

0.20

0.34

0.41

0.60

0.72

0.96

1.10

CBR Ejection Force

ASTM D 6241

kN

1.60

3.20

4.00

6.00

7.50

10.50

12.00

UV Resistance (% retained after 500 hours)

ASTM D 4355

%

70

70

70

70

70

70

70

ROLL DIMENSIONS

Roll Width

m

5.85

5.85

5.85

5.85

5.85

5.85

5.85

Roll Length

m

100

100

100

100

100

100

100

Roll Weight

Kg

70

117

140

199

234

304

339

NOTES:

·The values given are Minimum Average Values except elongation and UV resistance. Elongation is a Maximum Value and UV is a typical value.

·Mass per unit area has a tolerance of ±10%.

This information is provided for reference purposes only and is not intended as a warranty or guarantee. Ningbo HongHuan assumes no liability in connection with the use of this information. Specifications subject to change without notice.

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Applications

1. Weed block for landscaped garden beds

2. Permeable liners for planters (stops soil erosion)

3. Weed control under wooden decking

4. Geotextile for separating aggregate / soils under walkway blocks or bricks

5. Assists in preventing paving from settling unevenly

6. Landscape fabric prevents soil erosion

more

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Company Information

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

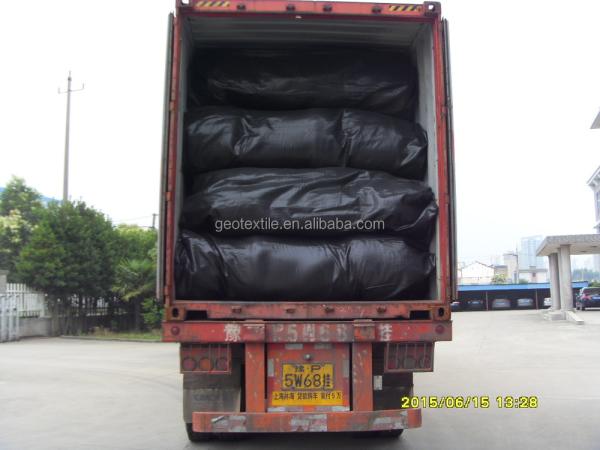

Packaging & Shipping

Polypropylene Woven Geotextile Fabric 390gsm Black for Environmental Engineering

FAQ
Which payment do you accept?
For you convinience,our payment can be L/C,TT,Westunion,paypal

Are you willing to provide the samples?
We are glad to provide the samples to you if we have the identical or similar samples in our warehouse.

May I get a cheaper price?
A favorable discount will be given if there is a large quantity you need.

Do the customized designs be accepted?
Yes, we welcome customized designs.

How to contact with us?
Choose one product and leave a message there, or see the contact way, there are the contacted detail information.
