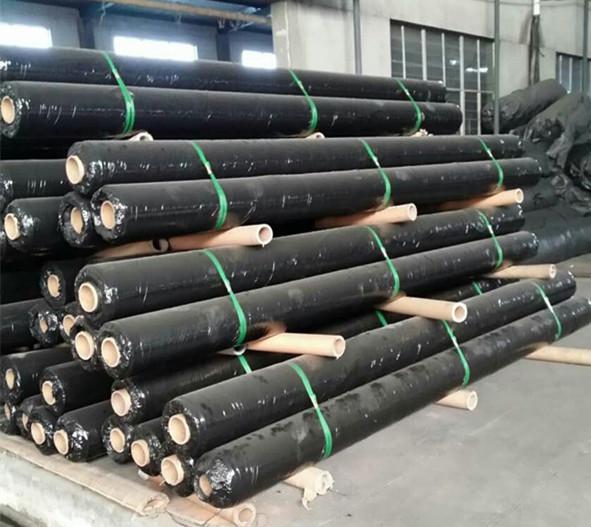

155gsm pp woven geotextile fabric for separation
155gsm pp woven geotextile fabric for separation
155gsm pp woven geotextile fabric for separation
155gsm pp woven geotextile fabric for separation
155gsm pp woven geotextile fabric for separation
155gsm pp woven geotextile fabric for separation
Specifications
Place of Origin :
China
Brand Name :
HongHuan
Certification :
ISO9001
Model Number :
SWG155
MOQ :
10,000/m^2
Packaging Details :
PVC or PP Fabric Rolls
Delivery Time :
30 days
Payment Terms :
T/T, L/C
Material :
Polypropylene
Color :
Black
Unit mass :
155gsm
Type :
Woven Geotextile
Width :
3.81m(12.5') 4.57m(15') 5.33m(17.5')
Packing :
film / woven fabric
Description

155gsm pp woven geotextile fabric for separation

Quick detail:

Weight: 155g/m^2
Width: 3.81m(12.5') 4.57m(15') 5.33m(17.5')


Description:

Split Film Yarn Woven Geotextile are made by weaving flat strands created by first slitting plastic sheet. Woven split-film geotextiles are typically preferred for applications where filtration requirements are less critical. These geotextiles aid in construction over soft or weak soils by providing separation and stabilization.

Specifications:

PROPERTY

ASTM TEST METHOD

Minimum Average
Roll Values
English

Minimum Average
Roll Values
Metric

Weight (Typical)

ASTM D 5261

4.5 oz/yd2

155g/m2

Grab Tensile

ASTM D 4632

230 lbs

1025 N

Grab Elongation

ASTM D 4632

15%

15%

Trapezoid Tear

ASTM D 4533

85 lbs

377 N

CBR Puncture Resistance

ASTM D 6241

800 lbs

3566 N

Permittivity

ASTM D 4491

0.05 sec-1

0.05 sec-1

Water Flow Rate

ASTM D 4491

5 gal/min/ft2

203 L/min/m2

AOS

ASTM D 4451

40 US Std.Sleve

0.430 mm

UV Resistance

ASTM D 4355

70% @ 500 hrs

70% @ 500 hrs

ROLL DIMENSIONS

Roll Width

3.81m(12.5’)

4.56m(15')

5.32m(17.5')

Roll Length

132m(432’)

109m(360')

94m(309')

Roll Weight

90kgs(198lbs)

90kgs(198lbs)

90kgs(198lbs)


Features:

Color: Black / Customized

Temperature Range: 0°C ~ +150°C

Durability: The characteristics of synthetic fiber is not easy to be denatured .It can keep its original features.

Storage and transportation is convenient: Because of light weight, packing can be according to certain requirements, so the transport, storage, construction is very convenient .

Applications:

Separation
Acts as a separator between two layers of soil in road construction and rail works. Our fabric is having strength, high puncture resistance and appropriate elongation features required for road and rail works.

Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
