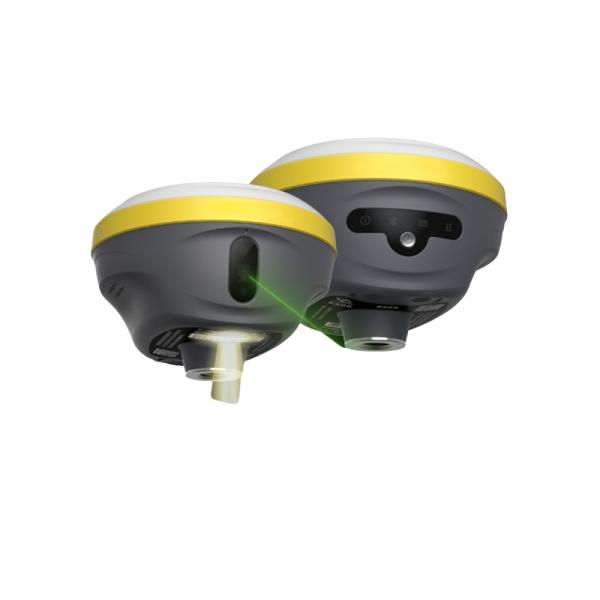

K501 GNSS Receiver

Compact Universal RTK System with Full Constellation Tracking and Long Endurance

The K501 is a new-generation GNSS receiver designed for professional surveying, mapping, and engineering projects. With a compact magnesium-alloy structure, the K501 integrates a 1408-channel full-constellation module, high-precision RTK and PPK positioning, and tilt survey support. Its lightweight yet rugged design, combined with IP67 protection and IK08 shock resistance, makes it reliable for long-term outdoor operations.

Equipped with a large-capacity 7000mAh battery, the K501 delivers up to 40 hours of continuous fieldwork in rover CORS mode, significantly reducing downtime. The receiver supports Bluetooth, Wi-Fi, and 4G connectivity for seamless data transfer and real-time corrections.

With multi-constellation, multi-frequency tracking and tilt survey capability (<2 cm accuracy within 60°), the K501 ensures consistent precision in challenging field conditions. Whether for topographic surveys, cadastral mapping, or infrastructure construction, the K501 offers a stable, high-performance GNSS solution in a lightweight form factor.

Technical Highlights

• Channels: 1408, supports GPS, BDS, GLONASS, Galileo, QZSS, SBAS

• Accuracy:

  • Static: H ±2.5 mm + 0.5 ppm / V ±5 mm + 0.5 ppm

  • RTK: H ±8 mm + 1 ppm / V ±15 mm + 1 ppm

• Initialization: <5s typical, 99.99% reliability

• IMU Tilt Survey: Up to 60°, <2 cm accuracy

• Battery: 7000 mAh, up to 40 hours continuous operation

• Size & Weight: 120 × 89 mm, 0.63 kg

• Durability: Magnesium-alloy, IP67, IK08, withstands 2 m drop

• Connectivity: USB Type-C, Bluetooth, 4G, Wi-Fi
