3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
Specifications
Brand Name :
Geosun
Model Number :
GS-130X Drone LiDAR Scanning System
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets/month
Delivery Time :
7-10 work days
Packaging Details :
Suit case 450*365*200 mm
Item Name :
Drone LiDAR Scanning System
Operation Efficiency :
1.6 K㎡ / Single Flight
Application :
Topography, Forestry, Powerline, Smart City
Channel :
32-channel
Material :
Aluminum Alloy Body
Accuracy :
10cm@100m
Dimension :
14.4*10.9*12cm
Weight :
1.26kg
Storage :
64GB Max Support 128GB TF card
Working Temperature :
-20°~+55°
Carrying Platform :
Multi-Rotor/VTOL
Trajectory Software :
Shuttle
Point Cloud Software :
gAirHawk
Description

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

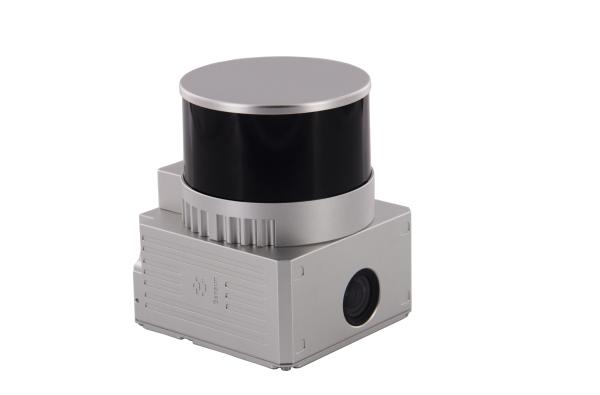

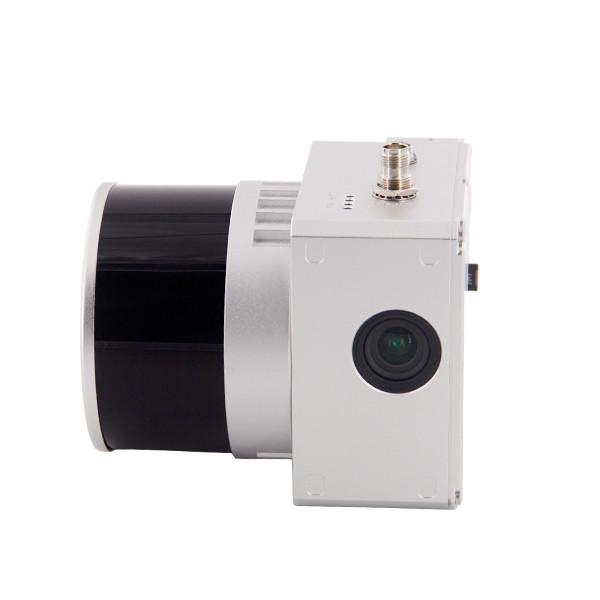

Geosun gAirHawk Series GS-130X Drone LiDAR Scanning System

Drone LiDAR Scanning System GS-130X integrates Hesai XT32 laser sensor and all built-in units to create a futuristic look for your diversified LiDAR solution services.Stands out with strong penetration and small beam divergence in same uav lidar scanning system class to deliver a better performance in any vegetation areas.

Application of GS-130X Drone LiDAR Scanning System

Drone LiDAR Scanning System GS-130X works for mine surveying in Thailand.

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

Free trial software of GS-130X Drone LiDAR Scanning System

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

Specification of GS-130X Drone LiDAR Scanning System

Drone LiDAR Scanning System gAirHawk GS-130X

Item Name

System Parameters


GS-130X

Parameters

Weight

1.26kg

Measuring accuracy

Less than 0.1m @120m

Working temperature

-20℃~+65℃

Power range

12V- 24V

Consumption

10W

Carrying Platform

DJI M300 and Other brand drone

Storage

64 GB storage, maximum support 128GB TF card

Lidar Unit

Measuring Range

0.3m-120m@10% Reflectivity

Laser class

905nm Class1 (IEC 60825-1:2014)

Channel

32-channel

Range accuracy

±1cm (typical Value)

Scanning frequency

10HZ, 20HZ

data

Double-echo 1,280,000 Points/Sec

FOV

360°, adjustable

Laser sensor

HESAI XT32

POS Unit

Update frequency

200HZ

Heading accuracy

0.017°

Pitch accuracy

0.005°

Rolling accuracy

0.005°

Position accuracy

≤0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera (built-in)

Focal Length(mm)

16

FOV

83 Degree

Effective Pixel

26 MP

Package of GS-130X Drone LiDAR Scanning System

GS-130X Drone LiDAR Scanning System is packed by suit case with EVA material liner inside, then covered by hard carton box.

The package of UAV LiDAR Scanning System is suitable for air shipment and sea shipment.

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy

3D Mapping for Mine Drone LiDAR Scanning System Geosun GS-130X Colored Point Cloud High Accuracy
