316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit
316 Alloy Oilfield Cable with Pressure Sealed Conduit

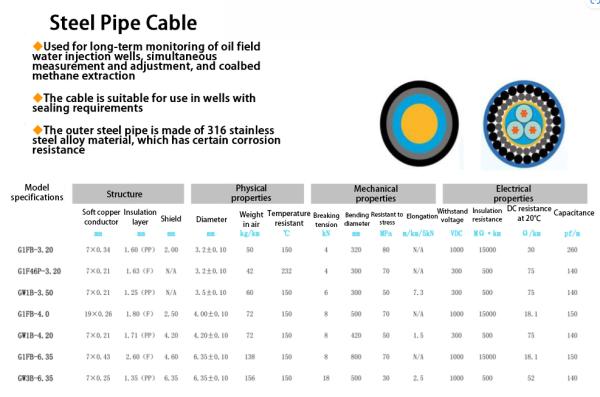

Specifications
Brand Name :
Gold
Model Number :
GD
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
10000-30000 dollar/ 1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1 set per 5 days
Delivery Time :
5-8 working days
Packaging Details :
Carton
Product Name :
Wireline Logging Cable
Insulation :
0.35 mm
Temp Rating :
232 ℃
Protection :
0.32 mm
Copper Construction :
19×0.26 mm
Cable Diameter :
5.60 mm±0.10 mm
Cable Breaking Strength :
25 KN
Cable Weight in Air :
145 kg/km
Description

Decade-Spanning Monitoring Cable features permanent 316 alloy armor for lifespan extension. Specifically designed for harsh well environments, its 15000 MΩ·km insulation maintains signal stability across -40°C to 232°C ranges.

Endurance Engineering:

  • 15+ year service guarantee

  • Corrosion-proof barrier technology

  • Zero maintenance sealing system

Lifetime Metrics GR38-6.35
Break Tension 18 kN
Bend Cycles 5000+
Temperature Swing -40°C to 150°C
Pressure Rating 50 MPa
Weight 156 kg/km
