JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
JOX-1 Digital Azimuth Inclinometer for Directional Drilling
Specifications
Brand Name :
GOLD
Model Number :
JQX-2Q
Certification :
CE, ISO
Place of Origin :
chongqing,China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1 set per 5 days
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Product name :
Borehole inclinometer
Application :
Water well, borehole detection
Vertex coverage :
0~60°
Azimuth coverage :
0~360°
Azimuth accuracy :
±4°(Vertex≥3°),±6°(2°≤Vertex≤ 3°)
Vertex accuracy :
≤ 0.1°

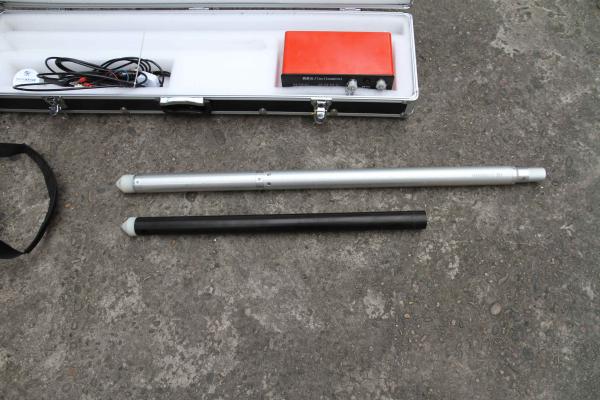

Probe outline dimension :
42*980mm
Probe down-hole length :
≤1000m

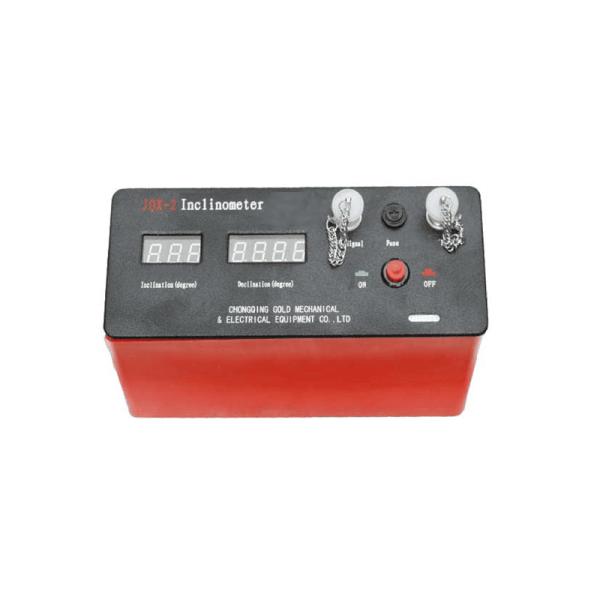

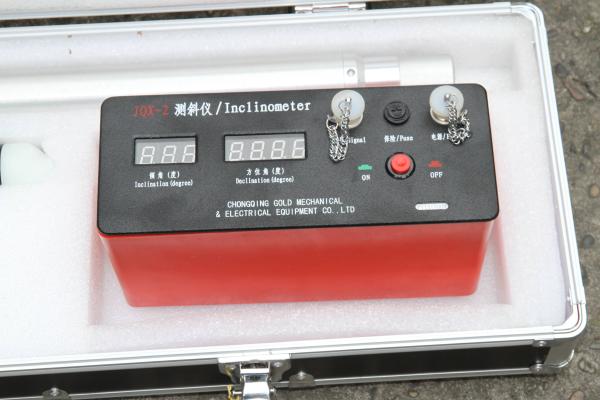

Ground instrument dimension :
240*95*140mm
Feature :
Borehole inclinometer
Description

"The Interference Hunter"

Magnetic fields lie. Gravity doesn't. The JOX-1 is your subsurface truth serum, cutting through false signals with tri-sensor forensics. Where competitors see noise, we deliver crystal-clear borehole intelligence:
·<0.1° vertex accuracy - detects a soda can's tilt at 100m depth
·±4' azimuth purity - outperforms GPS in tunnels

JOX-1 Digital Azimuth Inclinometer for Directional Drilling

Interference-Neutralizing Arsenal

1. Ferrous Ghostbuster

Interference Source JOX-1 Solution
Steel casings Adaptive magnetic compensation
Ore bodies 3-axis signal isolation
Power cables Shielded 16-bit ADC conversion

2. Thermal Distortion Eliminator

  • -10°C to 85°C operational range (beyond specs)

  • Auto-calibration every 5 seconds

Battle-Tested Specifications

Parameter Industry Standard JOX-1 Superiority Field Impact
Vertex Precision ±0.5° <0.1° Prevents well collisions
Azimuth Trust ±15' ±4' Accurate mineral targeting
Pressure Defense 2MPa 5MPa Deep reservoir capability
Thermal Armor -20°C to 60°C 0°C to 80°C Desert/arctic operations
Power Versatility AC-only AC220V/DC12V Remote site readiness
Probe Profile 50mm+ 42mm Legacy hole compatibility

JOX-1 Digital Azimuth Inclinometer for Directional Drilling

JOX-1 Digital Azimuth Inclinometer for Directional Drilling

JOX-1 Digital Azimuth Inclinometer for Directional Drilling

JOX-1 Digital Azimuth Inclinometer for Directional Drilling

JOX-1 Digital Azimuth Inclinometer for Directional Drilling
