High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
High Resolution Optical Televiewer Full Hole Imaging System
Specifications
Product name :
full hole wall imaging system
Power :
Electronic
Material :
steel
Size :
255mm*92mm*74mm
Function :
full hole wall imaging
Display :
8.4 inch
Hole Diameter :
30mm to 400mm
Probe diameter :
24 to 65mm
Brand Name :
GOLD
Model Number :
GD-C1201
Place of Origin :
chongqing,China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
1 set per 5 day
Delivery Time :
5-8 work days
Packaging Details :
carton
Description

GD-C1201 Full Hole Wall Imaging System

Product Description:

High Resolution Optical Televiewer Full Hole Imaging System

High Resolution Optical Televiewer Full Hole Imaging System

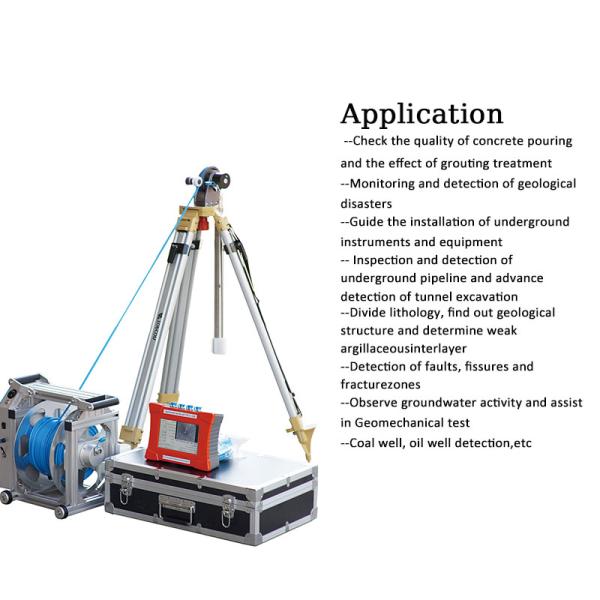

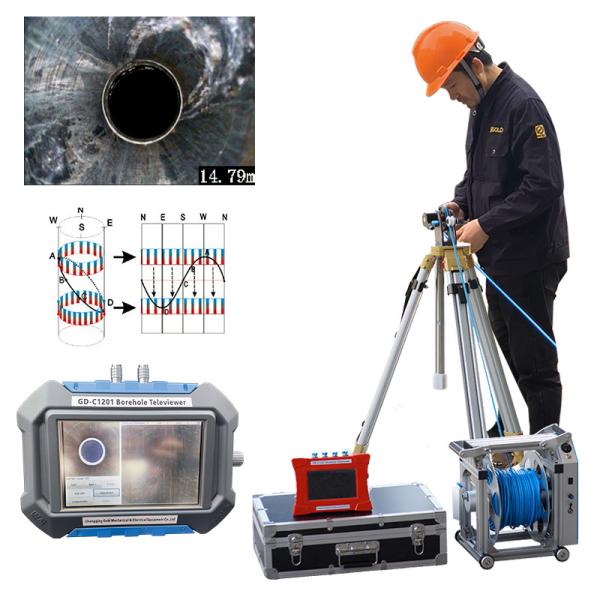

GD-C1201 Intelligent Borehole Optical Imager is an innovative, high-quality advanced product. At present, this high-tech imager has abandoned the traditional system structure mode of video acquisition card, controller, laptop, probe, and manual editing mode of profile, and replaced it with the most advanced DSP image acquisition and processing technology. In addition, this imager has high integration, panoramic shooting probe, real-time automatic extraction of profile, clear and realistic images, automatic and accurate calibration of direction and depth, and can perform all-round and full-cylindrical observation and imaging of various observation holes (vertical holes, horizontal holes, inclined holes, depressions or elevation holes). It is no exaggeration to say that GD-C1201 Intelligent Borehole Optical Imager is one of the most advanced in-hole imaging systems in the industry!

Specification:

Vertical image resolution 0.1mm
Horizontal image resolution 1024
Depth counting precision 0.01mm
Azimuth accuracy ±0.1°
CCD 1/3 inch, 700 line HD no missing codes
Cable length 150m,300m,600m,800m
Probe outer diameter 60mm
Practical aperture Diameter 70-300m

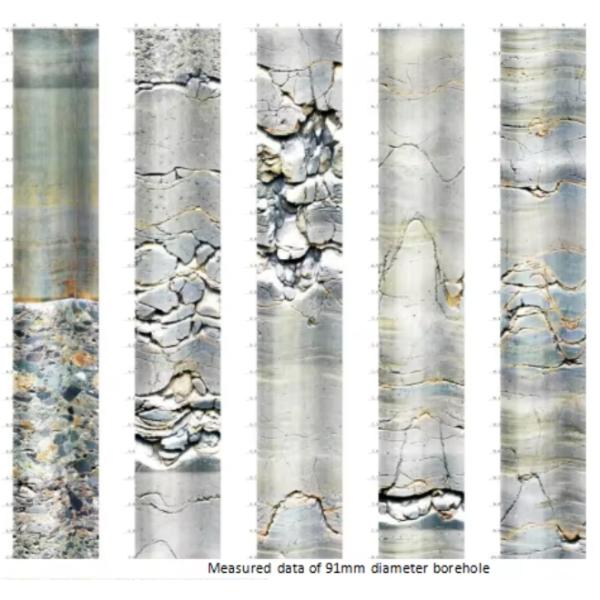

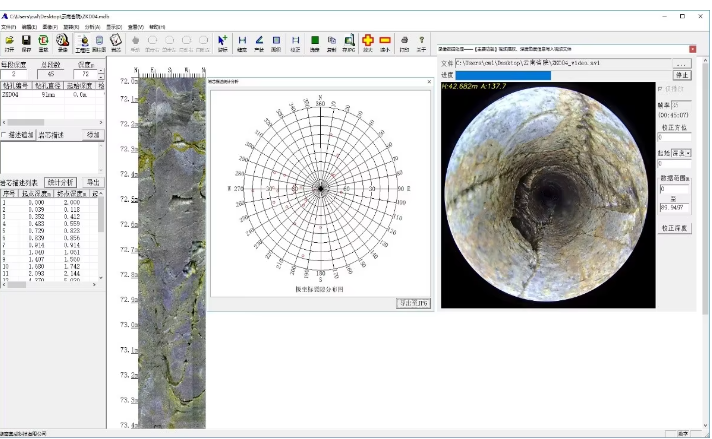

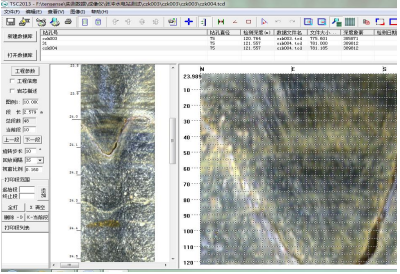

Imaging effect:

High Resolution Optical Televiewer Full Hole Imaging SystemHigh Resolution Optical Televiewer Full Hole Imaging SystemHigh Resolution Optical Televiewer Full Hole Imaging System

Main Features:

♦Highly integrated

♦Easy expansion

♦High intelligent

♦High reliability

♦High definition

♦Wide visual angle

♦Good portability

♦Good operating performance

♦Low requirement on power source

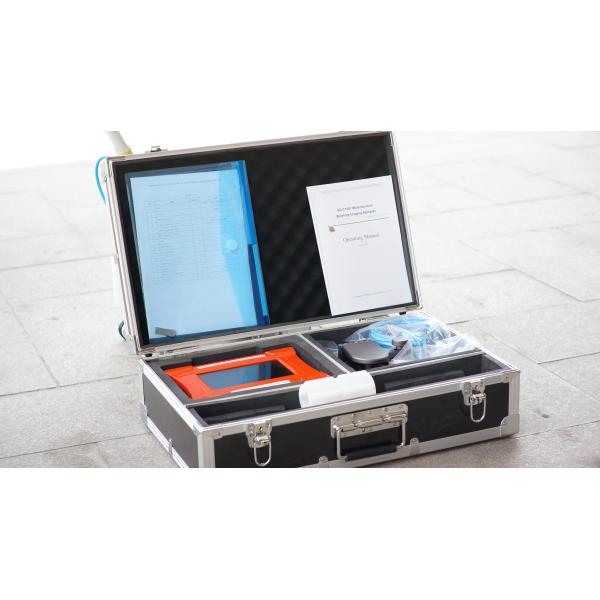

Packing&Shipping:

High Resolution Optical Televiewer Full Hole Imaging System

About us:

High Resolution Optical Televiewer Full Hole Imaging System

Contact us:

High Resolution Optical Televiewer Full Hole Imaging System
