JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
Specifications
Brand Name :
GOLD
Model Number :
JTG-1
Certification :
CE, ISO
Place of Origin :
chongqing,China
MOQ :
1 set
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T,
Supply Ability :
1 set per 5 days
Delivery Time :
5-8 work days
Packaging Details :
carton
Warranty :
1 Year
Customized support :
OEM, ODM, OBM
Power :
Battery
Material :
stainless steel
Product name :
Fiber Optic North-Finder Gyro Inclinometer
Function :
Water, Electricity, Coal, Metallurgy
Depth :
≤2500m
Application :
Engineering/hydrology
Description

Overview

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool

the JTG-1 fiber optic north-finder gyro inclinometer is a powerful and advanced tool that offers exceptional performance and reliability. Its advanced technology and user-friendly design make it an essential device for a wide range of applications and industries.

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool

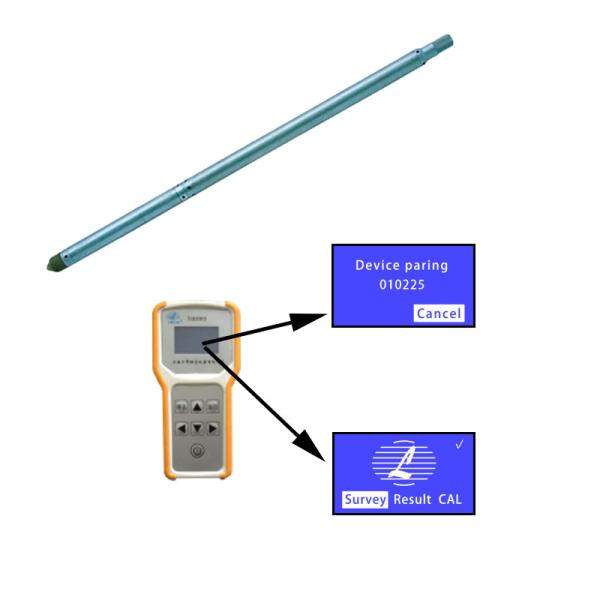

The KXP-2X kit consists of two main parts, the survey tool itself and a portable controller that is used to operate and present the borehole survey data. There is a lithium battery inside the probe for the survey tool to get power. To connect to the portable controller, turn on the survey tool and the controller itself, then the software program should automatically detect that it is connected to the KXP-2X and you are ready to start your survey.

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool

Specification:

Measuring range of inclination 0~45° , error ≤ 0.2°
Measuring range of azimuth 0~360° , error ≤ 4° (1° ≤ inclination ≤ 45°)
Static drift ≤ 2°
drifting nonlinearity ≤ 1°
Measuring mode point measurement (frequency: 1 time / 140 s)
Service life of the gyro > 1800 h
Probe outer diameter of downhole instrument φ40mm
Measured depth ≤ 2000m
Resistance to pressure of the probe ≤ 200kg/cm2
Working power of the instrument AC220V±10% 50Hz±10%
Working environment Temperature:-10°~60° Humidity:90% (40ºC)
Probe overall dimension φ40×2100mm
Weight 3kg

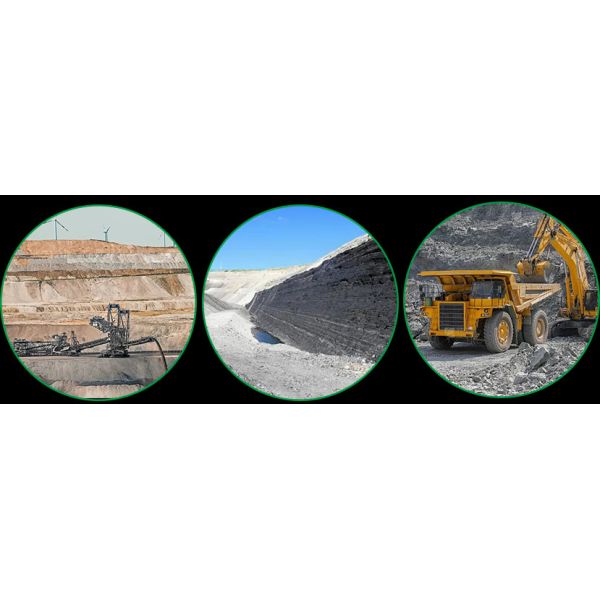

Application:

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool

Packing & Shipping:

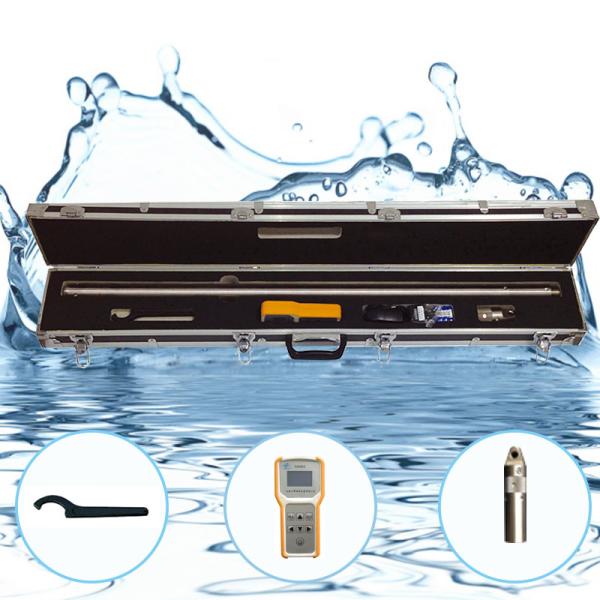

package list

No. Item Unit Quantity Remarks
1 Probe set 1 Upper and lower half
2 Portable Controller piece 1
3 Battery check module piece 1
4 Charger piece 1
5 AAA Size Battery piece 4 accessory
6 O-rings (Ø36×3.1) piece 10 accessory
7 38-42 Wrench piece 2 accessory
8 Instrument Package kit 1
9 User Manual piece 1
10 Certification piece 1

JTG-1 High Precision Fiber Optic Gyroscope Tilt Logging Tool
