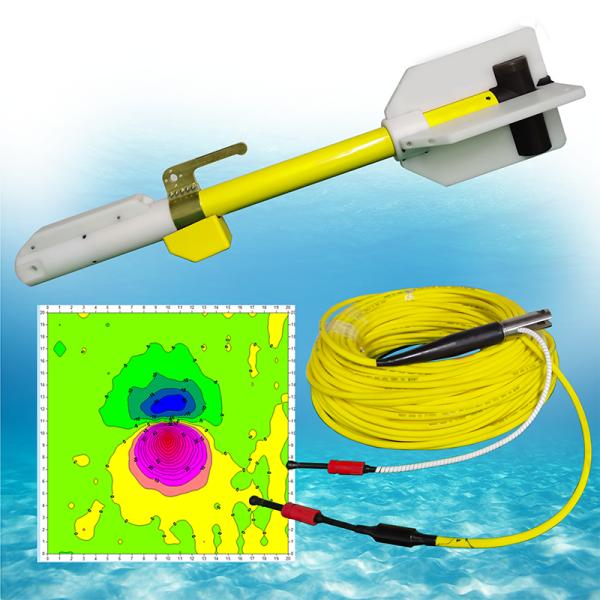

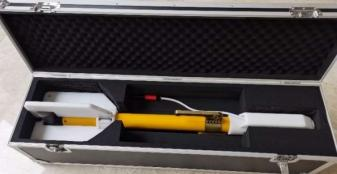

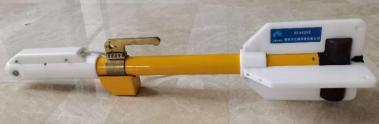

GD-02 Marine Magnetics magnetometer High Resolution Cesium optical pump magnetometer Marine Gradiometers for Marine Survey

Main Feature

• Cesium high performance: Wide detection range with high probability of detecting various sizes of magnetic targets.
• Streamlined tow design for safety: Low corrosion, sturdy glass fiber shell.
• Sampling rate up to 20Hz: Unparalleled data density, covering larger areas daily.
• Rotatable sensors for optimal signal acquisition: Globally accessible.
• Portable and easy to handle: No winch needed, operated by a single user using built-in handle for easy transport, weighing 15 kg with 60m cable.
• Integration of multiple systems for extended coverage: Internal counters, multi-sensor synchronization, and data cascading to maximize small target detection and reduce noise.
• Data recording software: Record and display data and locations in each magnetometer through automatic anomaly detection.
•

Application

• Land and marine mineral resource assessment
• Geological surveys for land and marine areas, including deep earth construction and geological mapping
• Marine engineering exploration for channels, ports, optical cable/cable positioning, wind power, etc.
• Archaeological exploration for underwater shipwrecks and ancient structures
• Deep-sea exploration for oil and gas
• Earth magnetic field surveys
• Anti-submarine detection
• Detection and positioning of unexploded bombs, mines, and floating mines in vital waterways
• Ocean magnetic array services
• Daily transformer station surveys on land or at sea

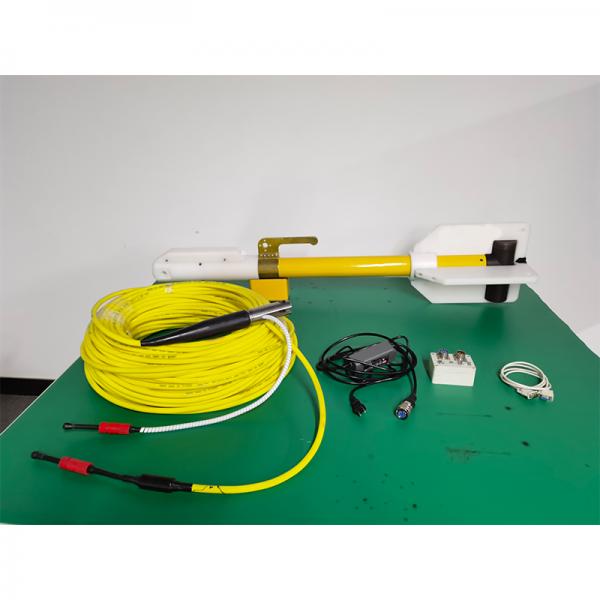

Configuration

Technical Specification

Technical index of towed Marine cesium optical pump magnetometer
Total Field Measurement Range	10000nT - 100000nT
Power Spectrum Noise	<0.0006nT/√Hz RMS
Job Angle	10°-85°(N), 95°-170°(S) (Automatic change of Hemisphere)
Gradient Capacity Limit	>40000nT/m
Turn to Poor	≤0.5 nT
Towing Fish Dimensions	Length: 1.25m, Diameter: Ø 70mm, Max. Tail Width: 28cm
Drag Fish Weight	Main Counterweight: 15kg (Multiple Counterweights possible)

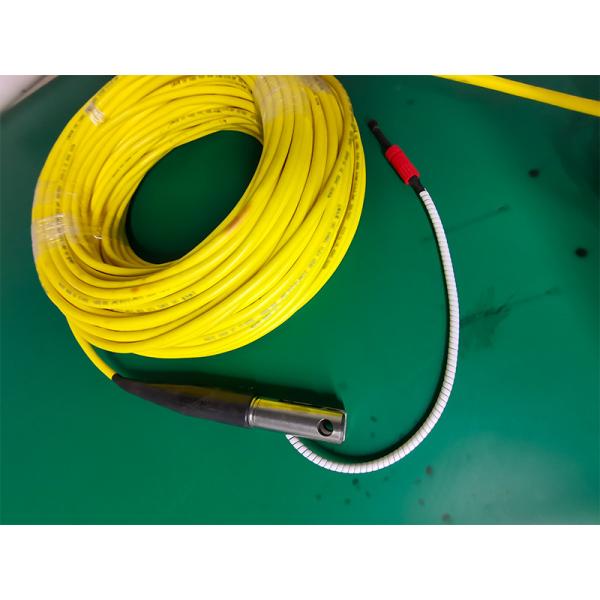

Conventional Streamer	Tension: 1.6t, Length: 60m
Conventional Pressure	180m
Depth Meter Measurement Range	0-160m
Steady State Power Consumption	15W
Working Power Supply Voltage	24V-36V
Operating Current	Start: ≤ 1.1A, Stable: 0.5A-0.7A
Data Output Frequency	1-10Hz
Data Communication	Serial Port 232

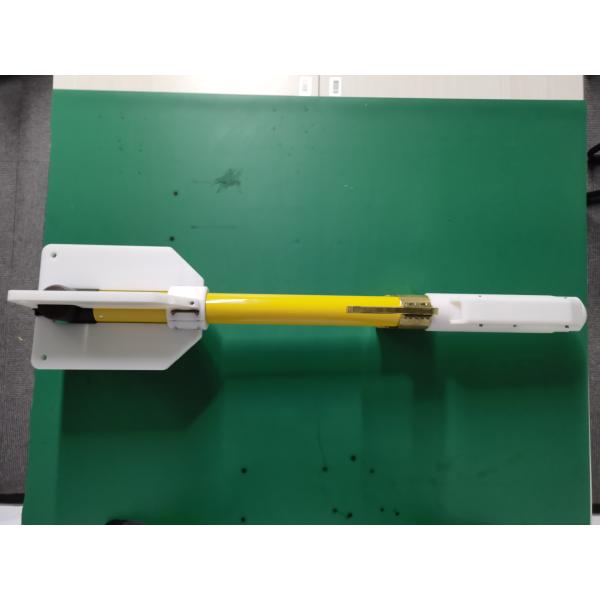

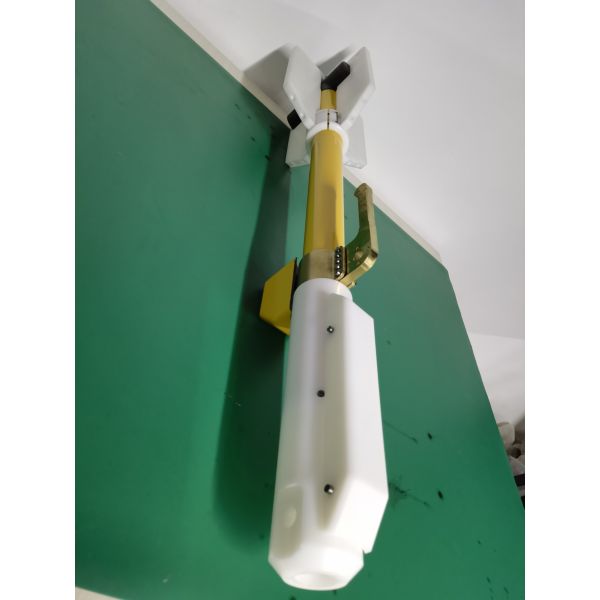

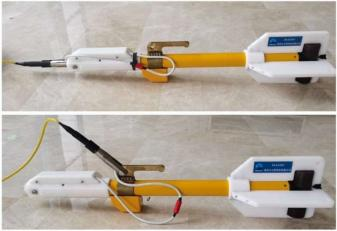

Detailed Images
