200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage
Specifications
Brand Name :
Haisan
Model Number :
hs-nonwoven
Certification :
CE
Place of Origin :
CN
MOQ :
1000㎡
Price :
USD 0.1-1.20
Payment Terms :
L/C,T/T
Supply Ability :
1000000㎡ per month
Delivery Time :
5-8 work days
Packaging Details :
PP Woven Bag
Material :
PET/PP
Feature :
Corrosion Resistant, Oxidation Resistance, Wear-resistant, Excellent Filtration Strong Tensile Strength
Usage :
Water Filter, Soil Reinforced
Kind :
Non Woven
Color :
All colors
Transport Package :
Standard Packaging or Customized
Sample :
Accept
Elongation at Break :
25%-100%
CBR Bursting Strength :
0.3-4.0kN or More
Mightiness at Break :
2.5-25.0kN/M or More
Description

Technical data of Short-fiber geotextile


Specification 100 150 200 250 300 350 400 450 500 600 800 Remark
Quality deviation per unit acreage% -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6
Thickness,mm≥ 0.9 1.3 1.7 2.1 2.4 2.7 3.0 3.3 3.6 4.1 5.0
Width deviation for range,%m -0.5
Mightiness at break,KN/m ≥ 2.5 4.5 6.5 8.0 9.5 11.0 12.5 14.0 16.0 19.0 25.0 Vertical and horizontal
Elongation at break,% 25-100 Vertical and horizontal
CBR bursting strengthk,KN≥ 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4.0
Effective aperture O90(O95)mm 0.07-0.20
Vertical osmotic coefficient,cm/s K x(10-1-10-3) K=1.0-9.9
Tearing strength, KN≥ 0.08 0.12 0.16 0.20 0.24 0.28 0.33 0.38 0.42 0.46 0.60 Vertical and horizontal


Short fiber needle-punched geotextile is manufactured using high-quality polypropylene or polyester staple fibers as the primary raw materials. The production process begins with opening and blending the fibers to ensure uniformity, followed by carding to form a consistent fiber web. The web is then randomly laid through a cross-lapping process to achieve the desired thickness and directional properties. This process results in a geotextile with excellent mechanical properties, filtration performance, and dimensional stability, suitable for various civil engineering and geotechnical applications.

200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage

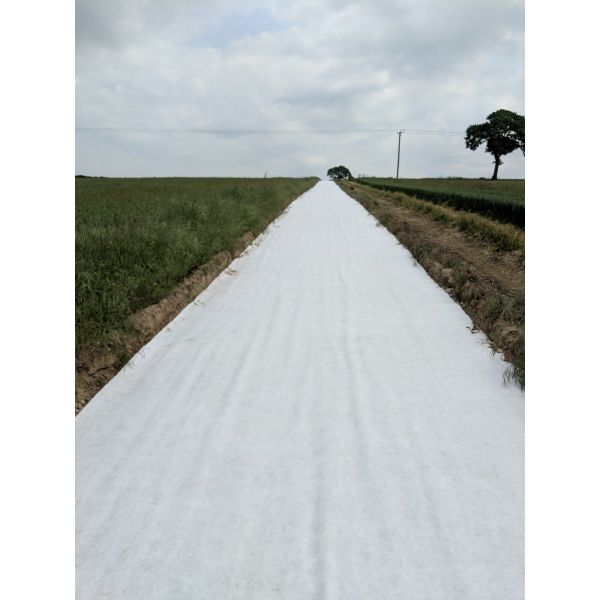

Application

·Water Conservancy Projects: Filtration and protection layers in dams, reservoirs, canals, and riverbank reinforcements

·Hydropower Engineering: Drainage and anti-seepage systems in hydroelectric power stations

·Road Construction: Separation, filtration, and reinforcement layers in highways, subgrades, and asphalt overlays

·Railway Engineering: Protective layers between ballast and subgrade to prevent soil migration

·Tunnel and Underground Engineering: Waterproofing and protective layers for tunnel linings and underground structures

·Coastal Engineering: Erosion control and foundation reinforcement for seawalls and coastal protection structure

200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage


Specification

100~1000g/m2
Width: max 8 meters

Packing&Delivery
1.Packing: According to customers requirements.
2.Delivery: Within 5-10 days after receiving your deposit.
200g 250g Needle Punched Polyester Non Woven Geotextile for Retaining Wall Drainage

After Sale Service
1.24/7 Online Technical Support
2.We also offer customized manufacturing to your specifications.
3.We are committed to resolving any construction challenges you may encounter.
