High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects
Specifications
Brand Name :
Haisan
Model Number :
hs-dewatering
Certification :
CE
Place of Origin :
CN
MOQ :
1000㎡
Price :
USD 0.1-1.20
Payment Terms :
L/C,T/T
Supply Ability :
1000000㎡ per month
Delivery Time :
5-10 work days
Packaging Details :
PP Woven Bag
Keyword :
Dewatering Bag
Usage :
Insulation, Water Filter, Dewatering; Coastal Protection
Kind :
Woven
Color :
All Color
Feature :
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Material :
PP/PET
UV-Resistance :
85-90%
Bursting Strength(Cbr) :
5-22kN
Permeability :
15-200L/㎡/S
Equivalent Opening Size :
0.4-0.9mm
Specification :
60cm*45cm,85cm*45cm,95cm*35cm,103cm*70cm,110cm*50cm
Transport Package :
Woven Geotextile
Description
Dewatering Geotextile Tube Technical Data:
Item
Unit
Technical Parameters
Tube 500
Tube 750
Tube 1000
Breaking strength
MD
KN/m ≥
70
120
200
CD
KN/m ≥
90
120
200
Elongation of break
MD
%≤
20
20
20
CD
%≤
10
10
10
Sewing Tensile strength
≥%
80
80
80
Bursting Strength(CBR)
KN≥
8
14
18
Equivalent opening size(O90)
mm
0.2-0.6
0.2-0.6
0.2-0.6
Permeability(Q50)
L/m2/s≥
20
13
15
UV-resistance(500HRS strength retention)
%≥
90
80
80

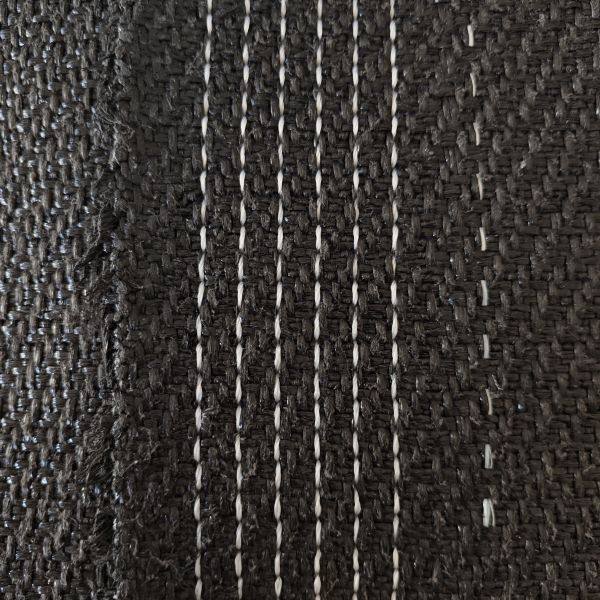

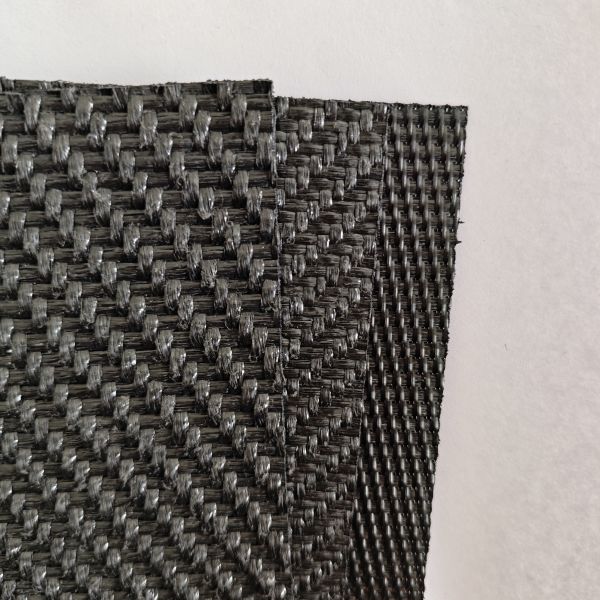

Woven geotextile tube is a high-performance geosynthetic container manufactured from high tenacity polyester (PET) or polypropylene (PP) filament yarns through a precision weaving process. The tube is custom-fabricated with sewn seams to form a cylindrical or pillow-shaped structure, designed for hydraulic filling with slurry materials such as dredged sediment, sludge, or sand.

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects


Applications
1.Sludge Dewatering: Dewatering of dredged material from rivers, harbors, and shipping channels, reducing sludge volume for disposal or reuse.

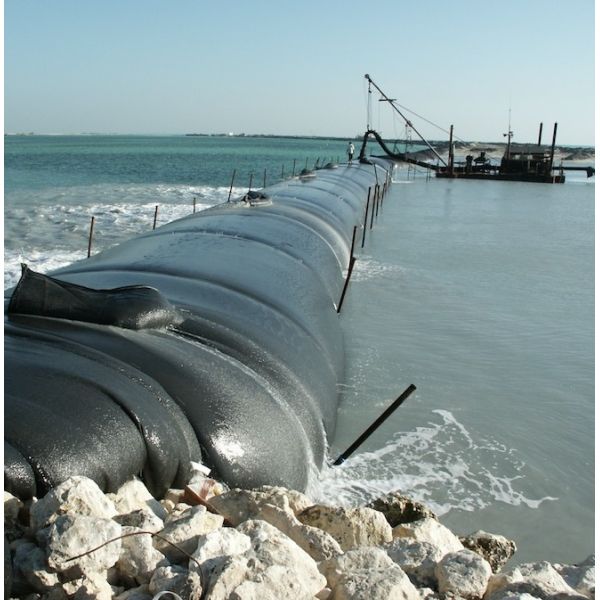

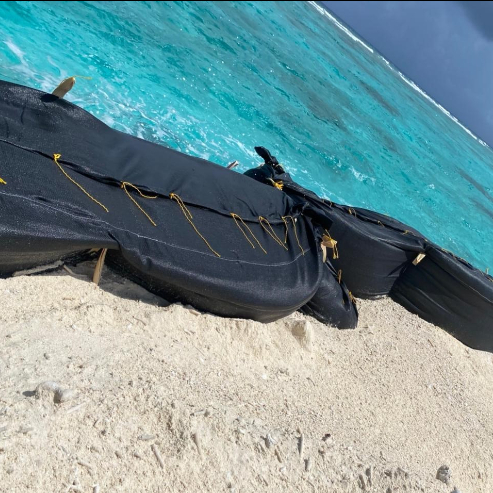

2.Coastal Protection: Shoreline stabilization, erosion control, and breakwater construction against wave action and tidal forces.
3.Embankment Construction: Building stable embankments, levees, and temporary cofferdams for flood control and land reclamation.
4.Wastewater Treatment: Dewatering industrial and municipal sludge in treatment plants, minimizing disposal costs.
5.Agricultural Sediment Management: Removing sediment from irrigation canals, reservoirs, and aquaculture ponds to maintain water quality.
6.Environmental Remediation: Containing contaminated sediment to prevent pollutant migration into surrounding water bodies.

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects


Specification
*Tensile strength: 70/105,120/120,200/200,250/250,300/300,350/350kN/m
*Diameter: 1.0m~5.0m
*Length: 20m,30m,50m,100m
*Circumference: 5m~30m

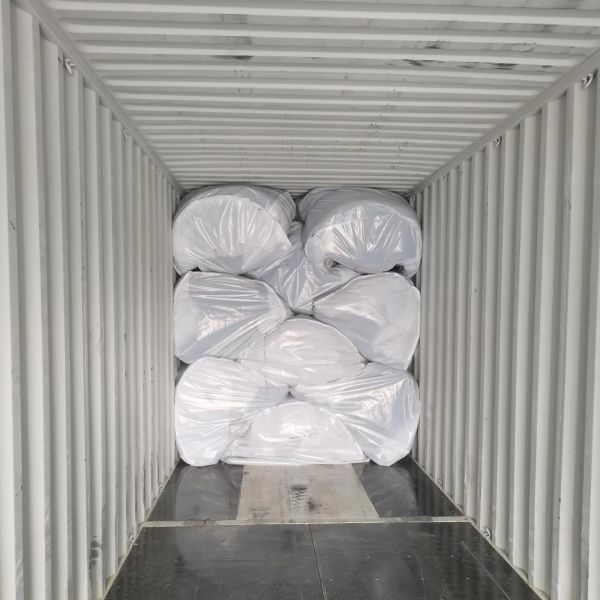

Packaging & Shipping
1.Packing: According to customers requirements.
2.Delivery: Within 30~40 days after receiving your deposit.
High Permeability Geotextile Dewatering Tubes For Municipal Sludge Treatment Projects

Company Profile

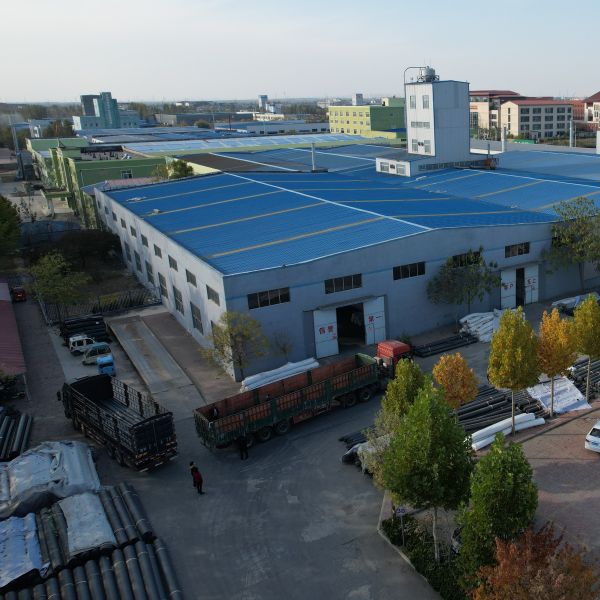

Qingdao Haisan New Energy Co., Ltd., established in 2000, is a leading manufacturer of advanced synthetic materials in China.
Located on a 196,000-square-meter facility, the company achieves an annual production capacity of 80,000 tons of composite materials. With a dedicated team of 600 employees, including 45 technical professionals, we maintain rigorous quality standards across all operations.
Our manufacturing facility holds ISO9001, ISO14001, OHSAS18001 and CE certifications, demonstrating our commitment to quality management, environmental responsibility, and occupational health safety.
Equipped with state-of-the-art production machinery and supported by a professional technical team and experienced sales staff, we are dedicated to providing exceptional products and reliable after-sale service to customers worldwide.
