High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement
Specifications
Brand Name :
Haisan
Model Number :
hs-long
Certification :
ISO
Place of Origin :
CN
MOQ :
1000㎡
Price :
USD 0.1~0.65
Payment Terms :
T/T,L/C
Supply Ability :
1000000㎡ per month
Delivery Time :
5-10 work days
Packaging Details :
PP Woven Bag
Process :
Needle Punched
Kind :
Non woven
Usage :
Insulation, Water Filter, Soil Reinforced
Feature :
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Color :
White
Material :
PET
Sample :
Free
Mightiness at Break :
2.5-25.0kN/M or More
Cbr Bursting Strength :
0.3-4.0kN or More
Quality Deviation Per Unit Acreage :
-8%, -7%, -6%
Width Deviation for Range :
-0.5%M
Elongation at Break :
25%-100%
Specification :
100~1000g/m2
Description
Technical data of long-silk geotextile
Specification
100
150
200
300
400
500
600
800
Remark
Quality deviation per unit acreage%
-6
-6
-6
-5
-5
-4
-4
-4

Thickness,mm≥
0.8
1.2
1.6
2.2
2.8
3.4
4.2
5.5

Width deviation for range,%m
-0.5

Mightiness at break,KN/m ≥
4.5
7.5
10.0
15.0
20.5
25.0
30.0
40.0
Vertical and horizontal
Elongation at break,%
40-80
CBR bursting strength,KN≥
0.8
1.4
1.8
2.6
3.5
4.7
5.5
7.0

Effective aperture O90(O95)mm
0.07-0.20

Vertical osmotic coefficient,cm/s
K x(10-1-10-3)
K=1.0-9.9
Tearing strength, KN≥
0.14
0.21
0.28
0.42
0.56
0.70
0.82
1.10
Vertical and horizontal


Polyester filament nonwoven geotextile is a high-performance needle-punched fabric manufactured from continuous polyester filaments. Unlike staple fiber products, the continuous filament construction eliminates the risk of fiber migration and provides superior mechanical properties. The fabric features high tensile strength, excellent elongation at break, and outstanding resistance to creep under sustained loads. It offers exceptional UV resistance, chemical stability against acids and alkalis, and strong resistance to biological degradation. The uniform pore structure ensures reliable filtration while maintaining high permeability. With excellent dimensional stability and durability, this geotextile maintains its engineering properties throughout long-term service life in demanding environments.

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement

Application

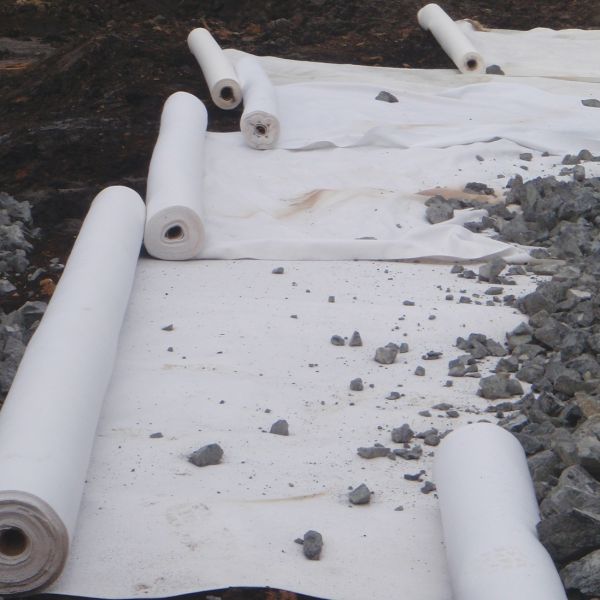

· Highway and Railway Engineering:Reinforcement and separation layers in high-load subgrades, preventing soil mixing and extending pavement service life

· Landfill Construction: Protective layer for geomembranes, filtration layer in leachate collection systems, and capping applications

· Hydraulic and Water Conservancy Projects: Filtration and drainage in dam construction, canal lining protection, and riverbank reinforcement
· Tunnel and Underground Structures: Protective wrapping for tunnel linings, drainage layer behind retaining walls, and waterproofing system protection
· Mining Applications: Heap leach pad protection, tailings dam filtration, and heap leach pad liner protection
· Sports Field Construction: Base layer stabilization and drainage for athletic fields, golf courses, and stadiums

High Strength Continuous Filament Pet Non Woven Geotextile For Roadbed Reinforcement


Specification

100~1000g/m2
Width: max 8 meters


After Sales Service

1.We have different quality products for viarious projects.
2.We also manufacture it as your specification.
3.We will try our best to resovle your problem in construction.
