Industrial Portable Drone Survey Instrument X1 Quadrotor Drone For Surveying And Mapping

Specifications

Place of Origin :

China

Brand Name :

CETU

Certification :

MOQ :

Packaging Details :

Carton

Delivery Time :

10-30days

Payment Terms :

T/T advance; Western union; MoneyGram,etc.

Supply Ability :

1000

Price :

$2200-3300

Model Number :

Model NO. :

Operating Radius :

Medium Range, Medium Range

Size :

Light, Light

Usage :

Industrial, Industrial

Structure :

Unmanned Rotorcraft, Wing Uav

Carrier Frequency :

Multifrequency Receiver

Number of Channels :

Multi-Channel Multi-Channel Receiver

Type :

Geodesic Receiver

Weight :

1237g

Wheelcase :

397mm

Maximum Flight Time :

36mins

Transport Package :

Carton

Specification :

50*40*30cm

Trademark :

qianxun

Origin :

China

HS Code :

9015400000

Production Capacity :

50000

Description

Autel Qianxun Surveing Mapping Drone Industrial 1237g X1 Quadrotor Flight Platform for Surveying Mapping

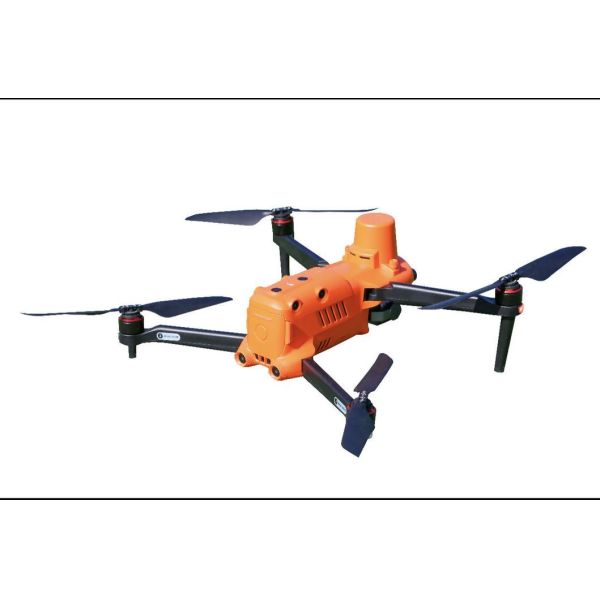

X1 quadrotor flight platform is a portable quadrotor flight platform specially designed for small area aerial photogrammetry. With the concept of "control points-free and flexible operation", it can meet the needs of extremely low input cost, extremely low difficulty in getting started and extremely flexible operation mode.

1. Base-station free
No need to erect a base station, real-time centimeter-level
positioning and PPK post-processing solution

2. High accuracy
No control points are required up to 1:500

3. More safety
6 binocular 720° omni-directional obstacle avoidance design, with omni-directional "observation" obstacle
capability, for flight safety escort

4. More effective

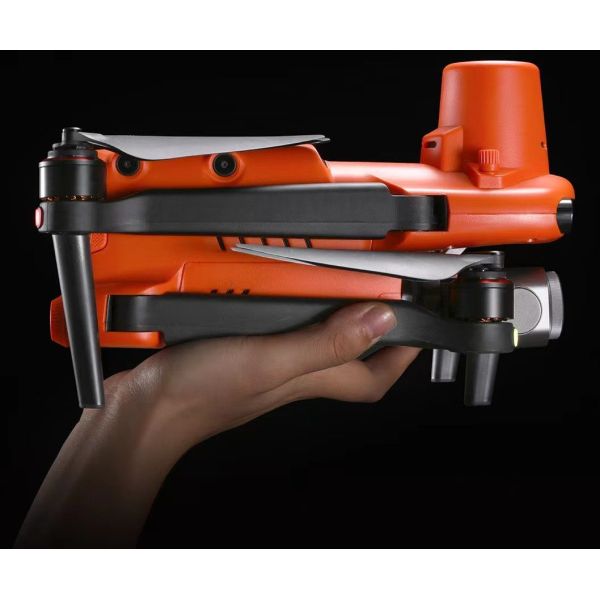

No assembly, unfurl and fly, single sortie operation can reach more than 36 minutes

Industrial Portable Drone Survey Instrument X1 Quadrotor Drone For Surveying And Mapping

Aircraft
weight	1237g
wheelcase	397mm
Maximum flight time	36mins(No wind conditions
Maximum wind resistance	Strong gale up to LV.8
Maximum take-off altitude	6000m
Radio operating frequency band	2.4GHz To 2.4835GHz
Hover accuracy	When RTK is enabled and RTK works Horizontal: ±0.1m Vertical: ±0.1m
Hover accuracy	Without RTK enabled: Horizontal: ±0.3m (when visual positioning is working normally) ±1.5m (when GNSS positioning is working normally) Vertical : ±0.1m (when visual positioning is working normally) ±0.5m (GNSS positioning when normal operation)
RTK module
Frequency point	GPS:L1/L2 GLONASS:L1/L2 Beidou satellite: B1/B2 Galileo satellite:E1/E5
Time to first fix	<50s
Positioning accuracy	Horizontal:1cm+1ppm (RMS) Vertical: 1.5+1ppm (RMS)

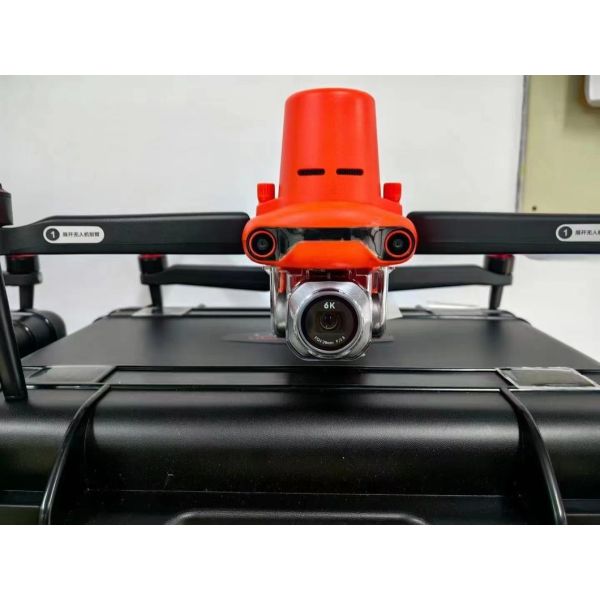

Camera
Sensor type	1 inch CMOS, 20 million effective pixels
Field angle	FOV82°
Camera aperture	f/2.8-f/11
Focusing range	1m to infinity
Equivalent focal length	28.6mm
Zoom range	1-8x (maximum 3x lossless zoom)

Industrial Portable Drone Survey Instrument X1 Quadrotor Drone For Surveying And Mapping
