2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
Specifications
Certification :
CE
Model Number :
Kolida ML401S
Model NO. :
Kolida ML401S
Type :
Electronic Theodolites
Magnification :
30X
After-Sales Service :
Professional Guidance
Transport Package :
Carton
Trademark :
Kolida
Origin :
Guangzhou, China
HS Code :
9015800090
Production Capacity :
10000
Place of Origin :
China
Brand Name :
CETU
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$9-300
Description
Kolida ML401S Laser Plummet Ml401s Measuring Instrument for Professional Guidance and Accurate Measurements
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
Product Description

Kolida ML-401S is based on the optical collimation system with the addition of a semiconductor laser, which can project two laser plumb lines at the same time, which are concentric, coaxial and co-focal with the collimation axis of the telescope; The special filter can be directly observed by the human eye; it is suitable for construction, equipment installation, engineering supervision, deformation observation and other projects.

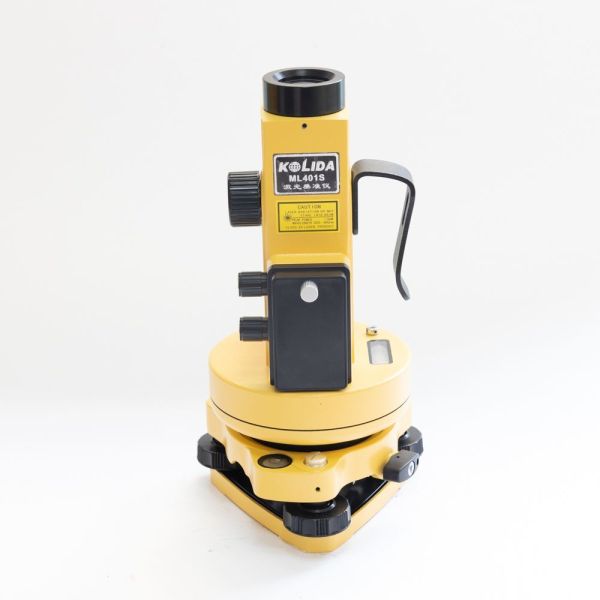

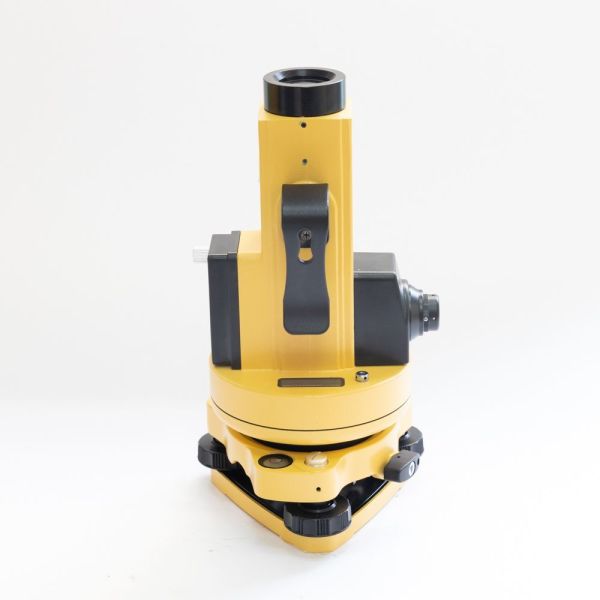

Detailed Photos
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction


Product Parameters
ML401S Laser Plummet
Standard deviation of vertical alignment 1/45000
Long level accuracy 20″/2mm
Working temperature range -25ºC ~ +45ºC
Power Output power 0.1mw with 2 AA batteries
Laser spot size
Spot diameter at 40m ≤4mm
Spot diameter at 100m ≤5″
Coaxial error between sight axis and vertical axis ≤2mm
Coaxial error between laser optical axis and collimation axis ≤5″
Laser effective range(daytime) ≥150m
Laser effective range(night) ≥500m
Semiconductor laser
Wavelength 630nm
Laser class Class II
Voltage 3V
Laser pointer
Shortest sight distance 0.5m
Point-to-point error ≤1mm
Telescope
Effective aperture 33mm
Magnification 25x
Field of view 1°20′
Shortest sight distance 0.8m
Size & Weight
Size 130x110x265mm
Weight 2.5kg
Certifications

2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction

Factory Photos

2.5kg Weight Laser Plummet Surveying Accurate Measuring Instrument For Construction
