Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Specifications
Model Number :
Leizon Al32lb
Model NO. :
Leizon AL32LB
Beam Color :
Red
Horizontal Line :
1, 1
Vertical Line :
1, 1
After-Sales Service :
Professional Guidance
1km Double Run Leveling :
1.0mm
Magnification :
32X
Level Accuracy :
±0.3″
Compensator Range :
±15′
Objective Aparture :
40mm
Transport Package :
Carton
Trademark :
Leizon
Origin :
Tianjin, China
HS Code :
9015300000
Package Size :
35.00cm * 20.00cm * 20.00cm
Package Gross Weight :
5.000kg
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$80-6000
Description
Leizon Al32lb Auto Level English Edition Surveying Equipment Vertical and Horizontal Line for Accurate Measurements
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Product Description

1. Collimation is more efficient and engineering measurement is convenient with the same axis between optical and laser.

2. Hung string in compensator is cross, elastic with trapezoid prism. Damper is magnetic. Automatic compensation make work efficient and accurate. Working temperature is -25ºC~+45ºC.

3. Tangent mechainsm use friction to brake and infinite tangent struction. Tangent knob is in both sides of instrument.

4. Laser auto level are used for horizontal measurement, engineering measurement, settling observation. It can be used in -25ºC~+45ºC.

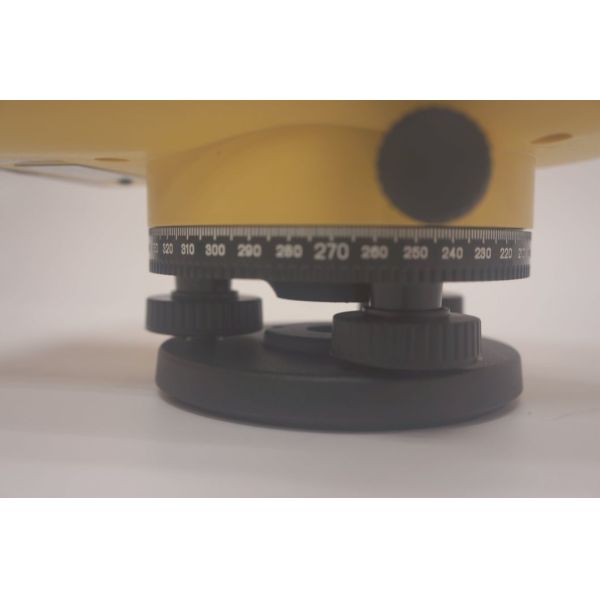

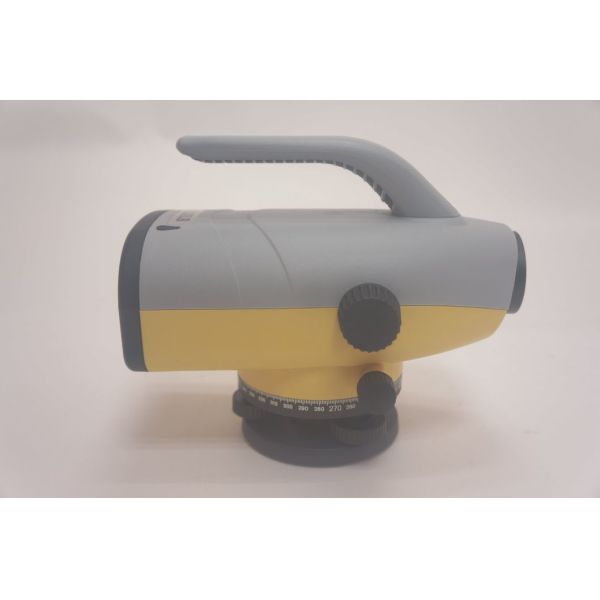

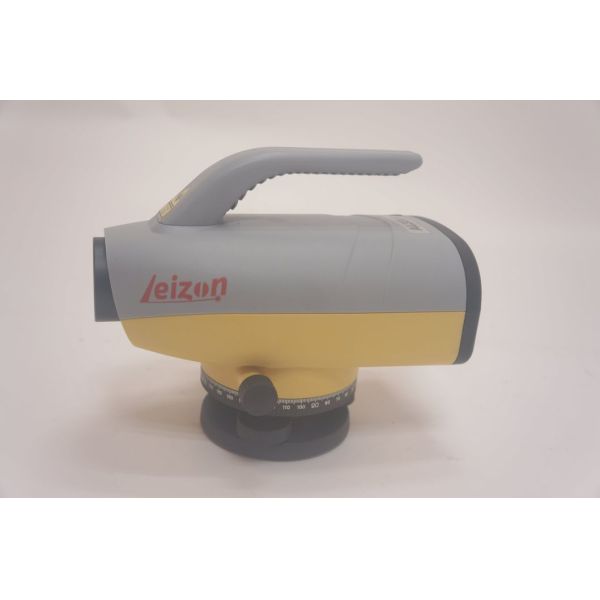

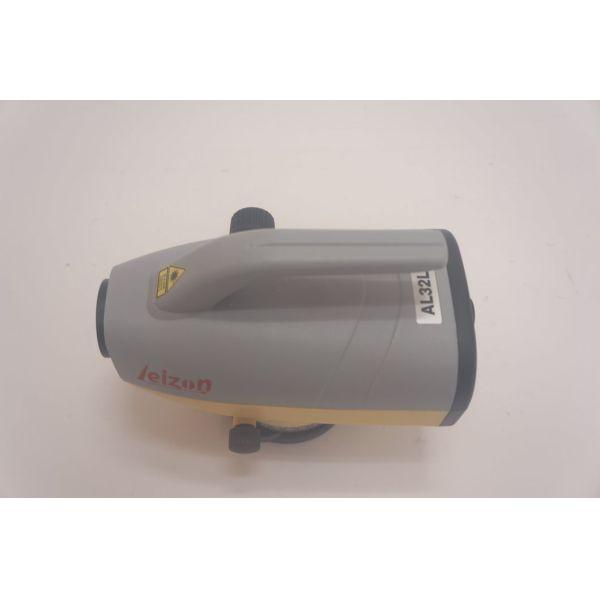

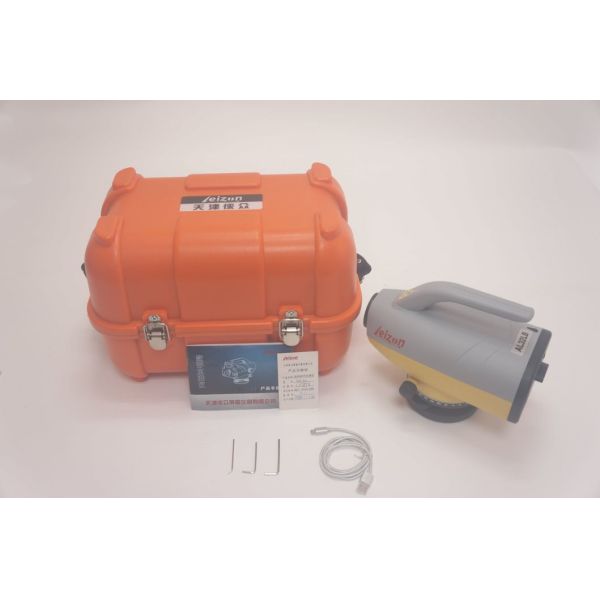

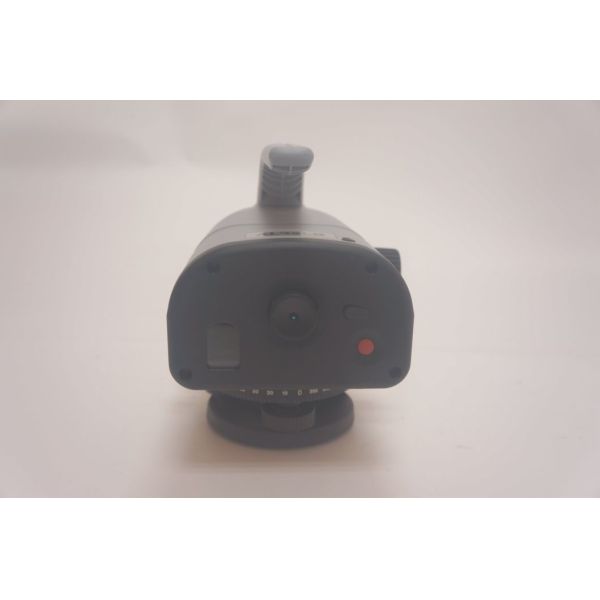

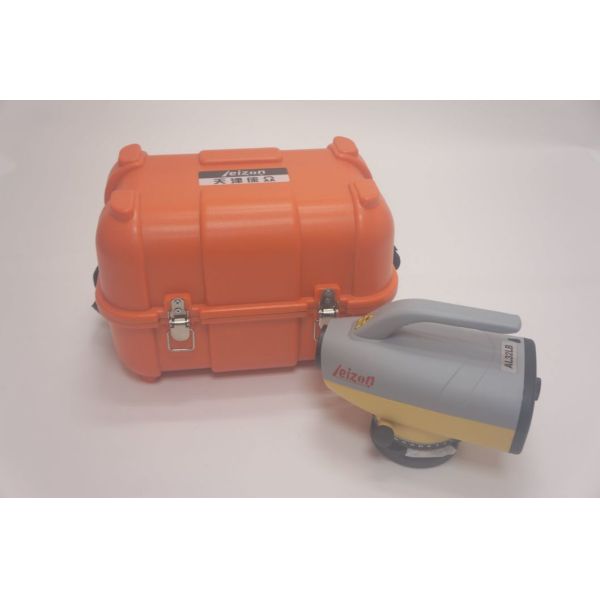

Detailed Photos
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line

Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line

Product Parameters
Specification AL32L
1km double run leveling 1.0mm
Magnification 32x
Level accuracy ±0.3″
Compensator range ±15′
Image Erect
Objective aparture 40mm
Field of view 1°20′
Min focusing distance 0.5m
Multiplying/additive costant 100/0
Sensitivity of circular vial 8′/2mm
Graduation 360° or 400gon
Laser Wave length of laser: 635 nm
Effective Range: 200m
Size of dot: less than 5mm/100m
Power 2*AAA alkaline battery
Dimension 240*150*195
Connecting size M16 or 5/8″
Net weight 1.8kg

Certifications

Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line

Factory Photos

Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line

Our Products

Accurate Auto Level Measurement Surveying Equipment Vertical And Horizontal Line
