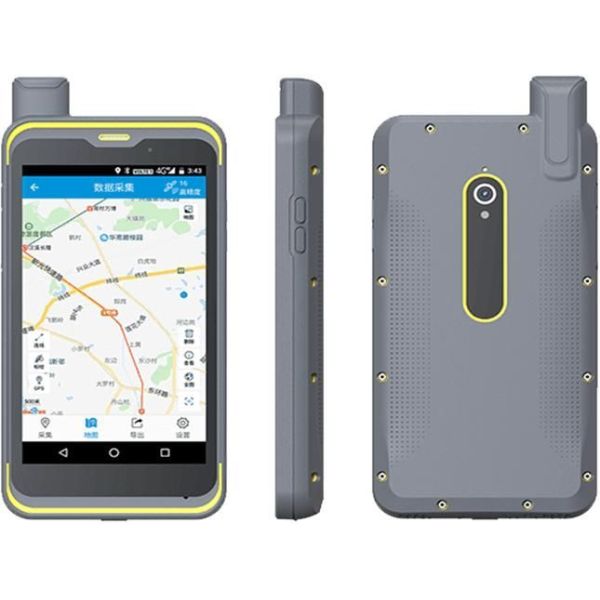

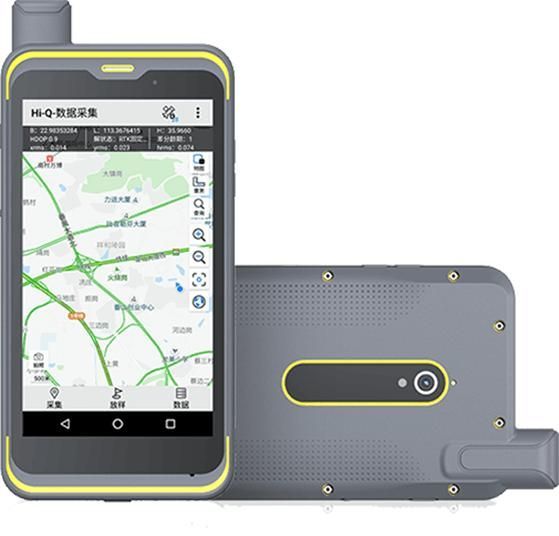

Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Specifications
Model NO. :
Qmini A7
Type :
Geodesic Receiver
Accuracy :
1mm
Vertical Lines :
1
Horizontal Line :
1
After-Sales Service :
Professional Guidance
Warranty :
1 Year
Transport Package :
Carton
Specification :
25*15*35 cm
Trademark :
Hi-Target
Origin :
Guangzhou, China
HS Code :
9015800090
Production Capacity :
10000
Place of Origin :
China
Brand Name :
CETU
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$15-30000
Description
1mm Accuracy Qmini A7 Gis Handheld The Ideal Solution for Horizontal Line Surveys and Data Collection

Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Product Description

Qmini A7 GIS Handheld provides a combination of Beidou high-precision positioning, dual-mode intercom, 4G smartphone, with background multi-network interconnection and other functions. It is small with complete functions and a high level of protection. Besides, it is a new type of rugged centimeter-level precision intelligent terminal product.


High-Precision

With 184-channel positioning chip and removable spiral GNSS antenna, Qmini A7 supports all constellations GPS/GLONASS/BDS/Galileo, and the positioning accuracy can reach 5cm.

Intercom

Qmini A7 integrates UHF analog intercom and DMR digital intercom, communication distance can reach 5 km and support radio relay, special intercom button can improve work and cooperation efficiency.

High quality

Rugged design, FHD screen, super performance and long battery life.


Detailed Photos
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment
Rugged Qmini A7 GIS Handheld Device Horizontal Line Survey Equipment


Product Parameters

 Product Model QminiA5/A7
GNSS Feature Positioning Technology AGPS spiral antenna: 72 channels
GPS: L1 C/A
GLONASS: L 1OF
BeiDou: B1
Galileo: E1B/C
SBAS: L1C/A0NAAS, EGNOS, MSAS, GAGAN)
QZSS: L 1 C/A
Dual constellation system: GPS/GLONASS or GPS/Beidou
Autonomous 1-2m
SBAS 1m
Network RTK Qmini A5:≤0.5m (RTD only)
Qmini A7: ≤0.2m
Update Rate 1-5Hz
System Operating System Android 6.0
Configuration Processor 2.0GHz, 8 core high speed processor
Storage RAM 3GB, ROM 32GB, T-Flash Card 128GB
Display 5.5 inches glare resistant, touch able screen
Resolution 1920 x 1 080, under the sun
Camera 13M Pixels camera, auto focus, highlight LED flash
Data Communication Network Type TD-LTE,FDD-LTE, TD-SCDMA, CDMA (EVDO,2000)
WCDMA, GSM (GPRS)
Wi-Fi IEEE 802.11 b/g/n, AP, Wapi
Bluetooth Bluetooth 4.0, BLE
Battery Feature USB Type-C, OTG function
Capacity 3.7V, 5500mAh
Applications Working Time 10-12 hours
R Module Scan QR code, RFID/NFC,
Physical Characteristics Build-in Sensor G-Sensor, Gyroscope, Compass, Barometer, Ambient Light Sensor, Proximity Sensor
Size 165mm*85mm*18mm
Weight 320g (with battery)
Temperature - 30°C - + 70°C(Operating); - 40'C ~ + 80°C (Storage)
Dustproof and Waterproof IP67, anti 1.Sm free drop
