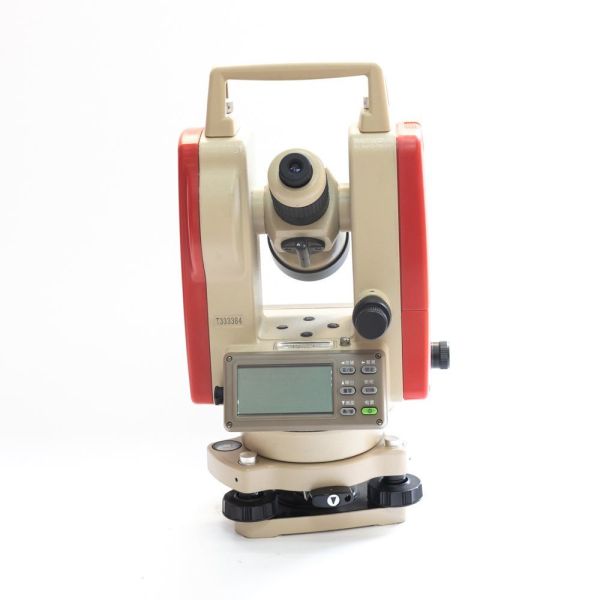

Construction Total Station Theodolite Land Survey Measuring Device

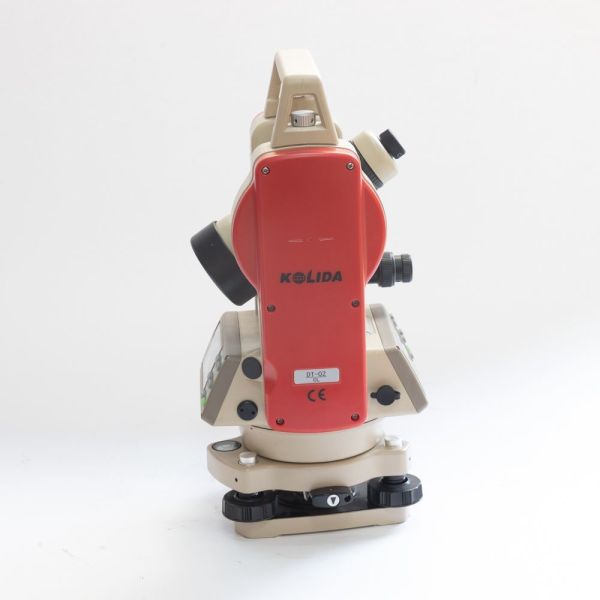

Construction Total Station Theodolite Land Survey Measuring Device

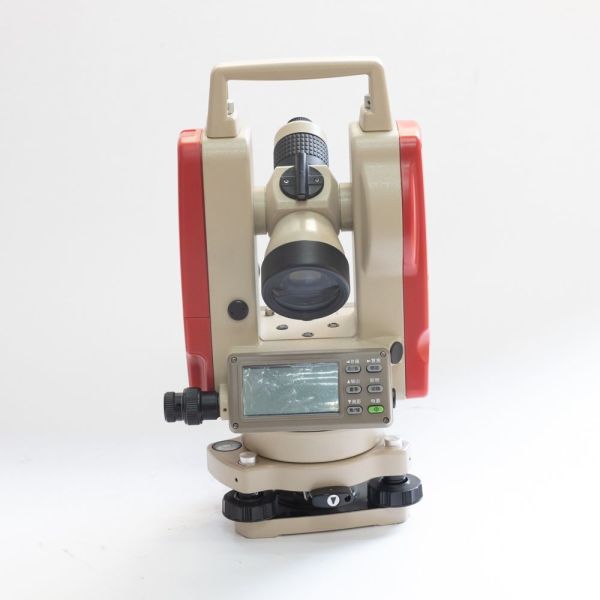

Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Specifications
Certification :
CE
Model NO. :
DT-02CL
Type :
Electronic Theodolites
Magnification :
30X, 30X
After-Sales Service :
Professional Guidance
Laser Indicator :
Wavelength: 635 Power: 0.5 MW Adaptable for Laser
Data Output :
Interface RS-232c
Lens Barrel Length :
157mm
Objective Lens Effective Aperture :
45mm
Transport Package :
Carton
Specification :
45*35*35 cm
Trademark :
Kolida
Origin :
Guangzhou, China
HS Code :
9015200000
Production Capacity :
5000
Package Size :
45.00cm * 35.00cm * 35.00cm
Package Gross Weight :
8.000kg
Place of Origin :
China
Brand Name :
CETU
MOQ :
1
Packaging Details :
Carton
Delivery Time :
10-30days
Payment Terms :
T/T advance; Western union; MoneyGram,etc.
Supply Ability :
1000
Price :
$300-600
Description
DT-02CL Total Station The Ultimate Measuring Device for Construction and Land Surveys


Construction Total Station Theodolite Land Survey Measuring Device
Product Description

DT-02CL electronic theodolite is an ordinary infrared electronic theodolite with absolute coded reading; angle measurement accuracy of 2 seconds, electronic bubble compensation accuracy of 1 second, and compensation range: ±4′.With laser plummet. The optimized design of the resistance-reducing circuit is the first in the world to use CCD as the receiver.

1. Laser and host shared a battery, integrated design.
2. Double-panel LCD display, convenient, fast, practical and accurate.
3. Liquid electronic sensor, can compensate for vertical axis tilt at any time to ensure accurate readings.
4. Horizontal disk, vertical disk, using the diameter reading to ensure the accuracy of 2 seconds.

Detailed Photos
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device
Construction Total Station Theodolite Land Survey Measuring Device


Product Parameters
Basic Properties
Laser indicator Wavelength: 635
Power: 0.5 mw
Adaptable for laser theodolite
Effective Range 120m
Data Output Interface RS-232C
Telescope
Image Erect
Lens barrel length 157mm
Magnification 30X
Objective Lens Effective Aperture 45mm
Resolution 3''
Field of Angle 1°30′
Sight Distance Multiplication Constant 100
Angle Measurement
Angle Measure Method Absolute Encode
Code Disc Diameter 79mm
Angle Measure Precision 2″
Reading 1″,5″
Distance Measurement
Precision ±(2mm+2×10-6·D)
Distance Measurement 8′/2mm
Automatic Vertical Compensation
System Liquid Electric Sensor: ±4′
Bubble Compensation: ±3′
Precision ±3′
Level
Long Level 30″/ 2mm
Circle Level 8′/ 2mm
Optical Plummer
Image Erect
Magnification 3X
Focusing Range 0.5~∞
Field of view 5°
Laser Plummer
Plummer Precision 1.5mm at 1.5m
Laser Spot Diameter 2.5mm at 1.5m
Output Power ≤0.9mW
Unlimited Microscrew
Amount 1 vertical microscrew
1 horizon microscrew
Physical Characteristics
Battery Rechargeable NiMH Battery/AA battery
Voltage DC 6V
Continous Working Time About 10 hours
Working Temperature -20ºC~+45ºC
Size & Weight
Size 165X157X318mm
Weight 4.3kg
