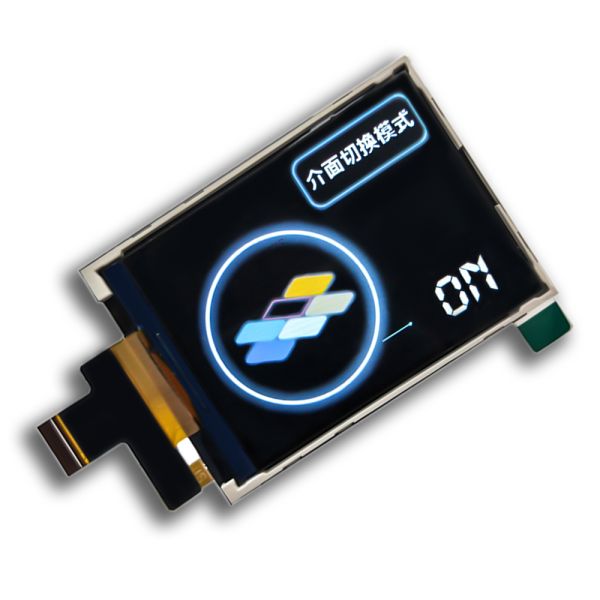

Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
1
Display Type :
TFT
Display Size :
0.96inch~10.1 inch
Resolution :
240*320
Driver IC :
ST7789 / ILI9341
Viewing Angle :
IPS Full view angle
Backlight Type :
Low power consumption
Interface :
RGB, SPI, I2C, 8080, 6800
FPC Connection :
Solder or connector
Contrast Ratio :
500
Luminance :
250 cd/m2
Module Size :
50x69.2x2.45 mm
Panel Active Area :
43.2x57.6mm
Number of Colors :
262K
Panel Type :
TN / IPS
NTSC Ratio :
55%
Description
Custom TFT LCD Display Modules
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Genyu TFT Display offers comprehensive LCD solutions with extensive customization options.
TFT LCD Size Available Options
Display Sizes 0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"
View Angle IPS Full view angle, 12:00, 6:00
Interface RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization
FPC Pull-in Connector, Solder Type, Support customization
For detailed datasheets and samples, please contact Erica or click here for more TFT screen options.
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Available TFT Display Models
0.96 inch TFT Display
Resolution: 80×RGB×160
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
1.06 inch TFT Display
Resolution: 96×RGB×160
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle

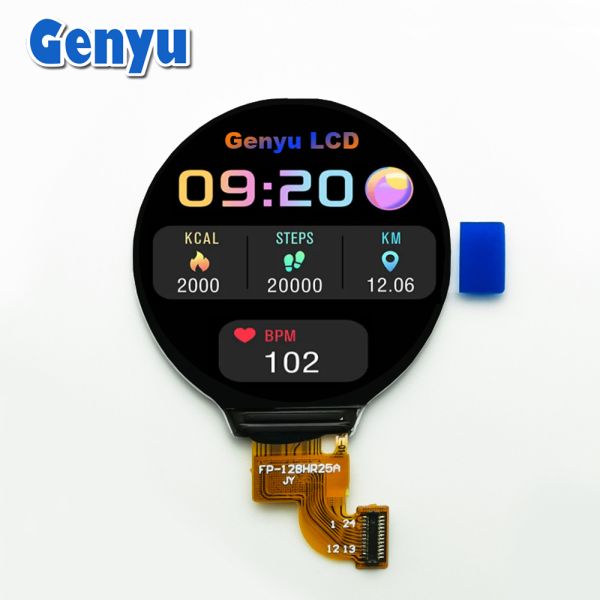

1.28 inch TFT Display
Resolution: 240×RGB×240
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
1.44 inch TFT LCD
Resolution: 128×RGB×128
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
1.54 inch TFT LCD
Resolution: 240×RGB×240
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
1.77 inch TFT LCD
Resolution: 128×RGB×160
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
1.8 inch TFT LCD
Resolution: 240×RGB×284
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
2.4 inch TFT LCD
Resolution: 240×RGB×320
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
2.8 inch TFT LCD
Resolution: 240×RGB×320
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
2.95 inch TFT LCD
Resolution: 480×RGB×854
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle

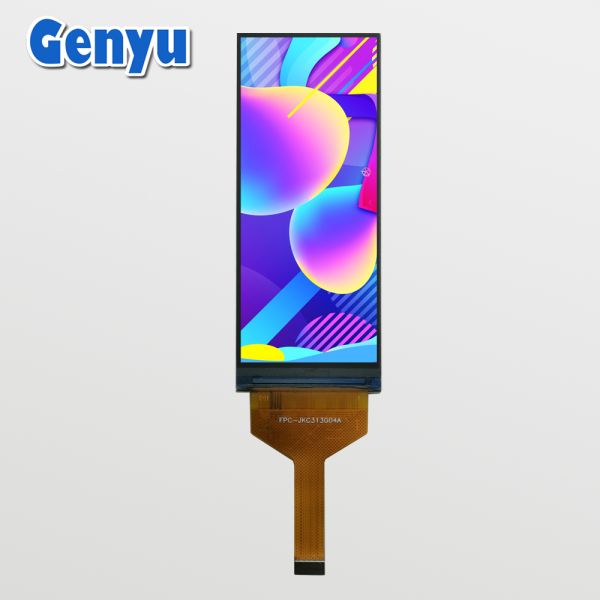

3.13 inch TFT LCD
Resolution: 379×RGB×960
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle

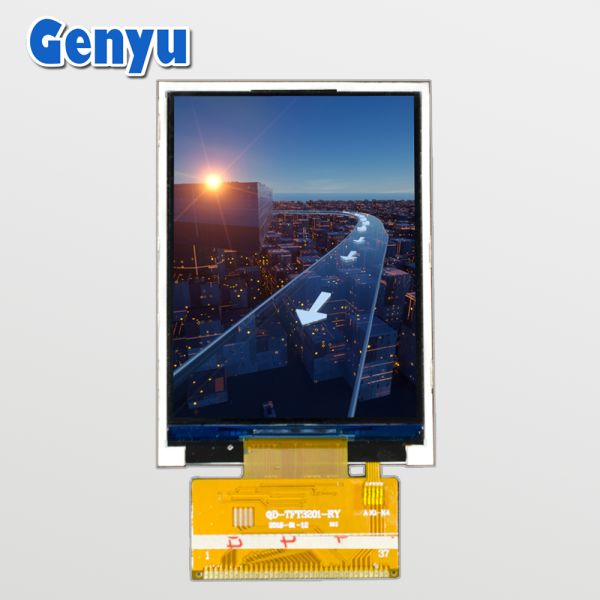

3.2 inch TFT Screen
Resolution: 240×RGB×320
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
3.5 inch TFT
Resolution: 320×RGB×480
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
4.3 inch TFT with CTP
Resolution: 480×RGB×272
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
7.0 inch TFT LCD
Resolution: 800×RGB×480
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Product Range: Color LCD display, Round TFT display, TFT display, LCD Module, Round Display, 2.4inch TFT LCD, 1.28" display, 4.3 inch TFT LCD, Small 0.96 / 1.3 / 1.54 / 2.0 / 2.4 / 3.2 / 3.5 / 4.3 inch TFT LCD, Round TFT display, RGB LCD touch screen, Color LCD display.
Genyu offers tens of thousands of LCDs for your reference. Please share your requirements with Erica Tan for customized LCD solutions or recommendations based on your specifications.
2.8 inch TFT Display
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
2.8 inch TFT LCD Display Specifications
  • LCD Size: 2.8 inch
  • Viewing Direction: 12:00
  • Resolution: 240×RGB×320
  • Contrast Ratio: 500
  • Contrast Ratio: 250 Min
  • Luminance: 250 cd/m²
  • Module Size: 50×69.2×2.45 mm
  • Panel Active Area: 43.2×57.6mm
  • Driver IC: ST7789V
  • Interface: MCU 8080 16BIT
  • Number of Colors: 262K
  • Panel Type: TN
  • NTSC: 55%
  • FPC: 30 Pin connector FPC
2.8 inch TFT LCD Display (IPS Version)
  • LCD Size: 2.8 inch
  • Viewing Direction: IPS
  • Resolution: 240×RGB×320
  • Contrast Ratio: 500
  • Contrast Ratio: 250 Min
  • Luminance: 250 cd/m²
  • Module Size: 50×69.2×2.3 mm
  • Panel Active Area: 43.2×57.6mm
  • Driver IC: ILI9341V
  • Interface: SPI
  • Number of Colors: 262K
  • Panel Type: IPS
  • FPC: 20 Pin connector FPC
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
2.4 inch TFT Display
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Company Profile
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Established in 2003, Shen Zhen Genyu Optical Co., Ltd. specializes in R&D, production, and sales of LCD displays, OLED, and TFT LCD Modules. We provide professional customized LCD Screens including TN, HTN, STN, FSTN, VA (BTN), COG and COB LCD Modules.
Genyu's plant area covers approximately 30,000 square meters with 1,000 employees, including 36 technicians, 16 developers, and 60 quality control specialists. Our core team comprises LCD experts, process engineers, LCM R&D engineers, and B/L and FPC engineers.
Utilizing modern automation plant equipment, advanced technology, and a strong R&D team, we deliver high-quality display solutions.
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
We design, develop, and produce customized LCD, LCM, B/L, FPC, and other products according to customer requirements. Current annual production capacity reaches 100 million LCD screens, 30 million LCMs, and 40 million B/L units.
Advanced Manufacturing Facilities
Our nearly 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. Facility features include totally closed transfer windows for material handling and air shower systems at workshop entrances to effectively remove dust, hair, and other contaminants, ensuring optimal production conditions.
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
Products & Services
Products
LCD/TFT/OLED display, touch screen, LCM, COB, COG
Contact our professional sales team with your requirements for prompt response.
Services
  • Free samples for regular models
  • Free design drawings
  • Free logistics quotes
Warranty
  • Free replacement within 1 year for quality issues
  • Free replacement for damage during transit
Monochrome LCD Solutions

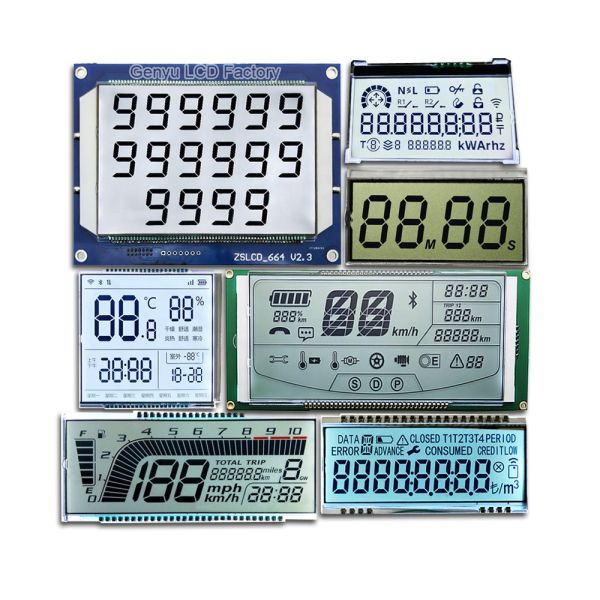

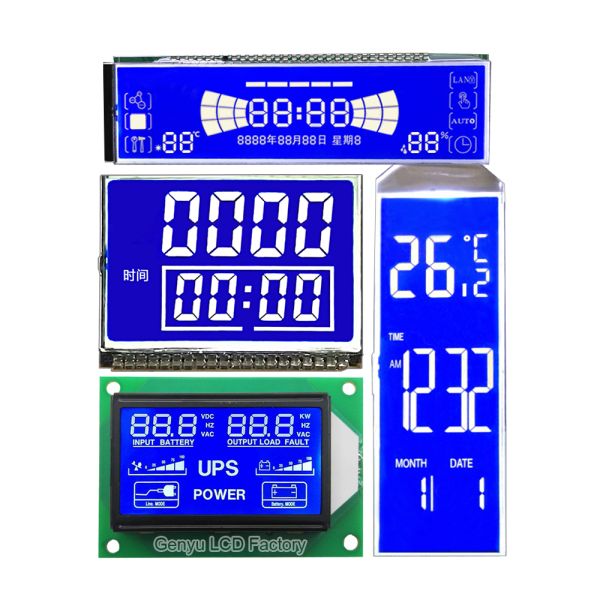

Custom Segment LCD Display
Genyu has produced tens of thousands of segment LCDs. We offer TN, STN, HTN, FSTN, VA/BTN LCD display technologies with custom design capabilities.
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle

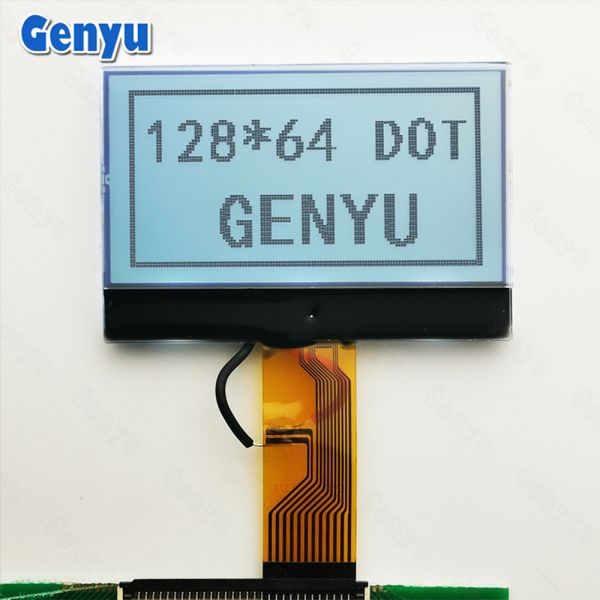

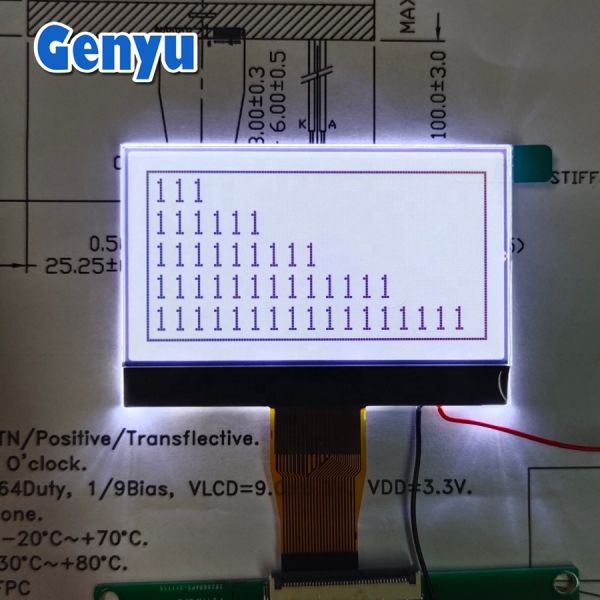

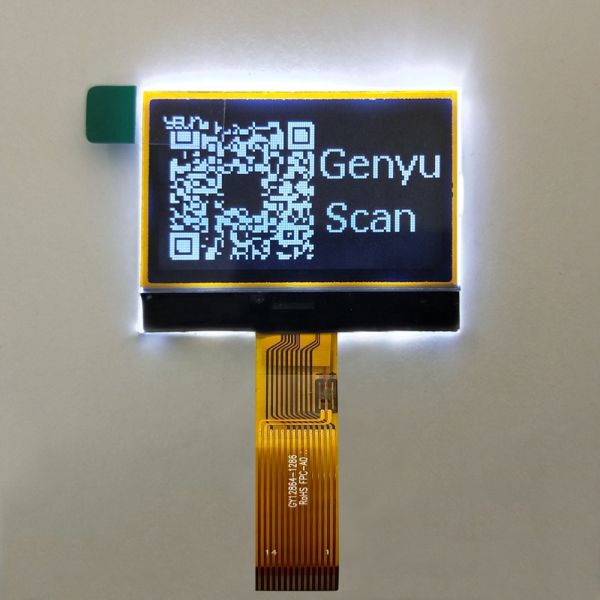

Dot Matrix Graphic LCD Display
Available resolutions include: 96×16, 96×24, 122×32, 132×36, 132×96, 128×32, 128×64, 128×96, 160×32, 160×80, 192×64, 240×80, 128×128, 160×160, up to 320×240 dot matrix LCD displays.
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
PMOLED Display
Mini size OLED Display options: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" OLED Display
Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle Custom TFT LCD Display Module with 240*320 Resolution SPI Interface and IPS Viewing Angle
