Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Genyu
MOQ :
1000
Price :
$1.50-1.60
Display Type :
TFT
Display Size :
1.83 inch
Resolution :
240x284 Dots
View Direction :
ALL
Driver IC :
NV3030B-03
Interface Type :
SPI
Module Size :
50x39.23x1.55 mm
Active Area :
29.52x34.93 mm
Operating Temperature :
-20~+70℃
Backlight Type :
3-LED, Parallel
Operating Voltage :
2.8~3.3V
Storage Temperature :
-30~+80℃
FPC Connector :
12 pins, ZIF type
Backlight LEDs :
3 LEDs, White
LCD Type :
IPS
Description
Genyu 1.83 inch TFT Display
High-quality 1.83 inch TFT LCD screen with NV3030B driver IC, featuring 240x284 resolution and SPI interface with 12-pin FPC connector.
Technical Specifications
Parameter Specification
Product Name 1.83 inch TFT LCD Screen Display
LCD Type IPS
Resolution 240 RGB × 284 DOTS
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
FPC Connector 12 pins, ZIF type
Driver IC (COG) NV3030B-03
Interface SPI
Backlight 3 LEDs, White

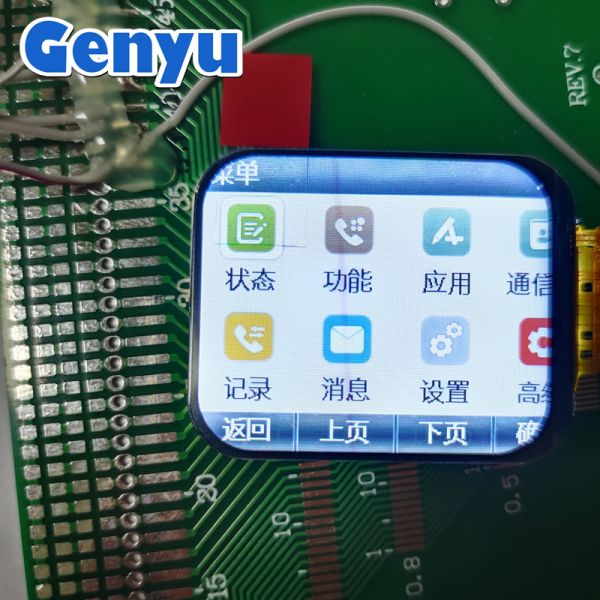

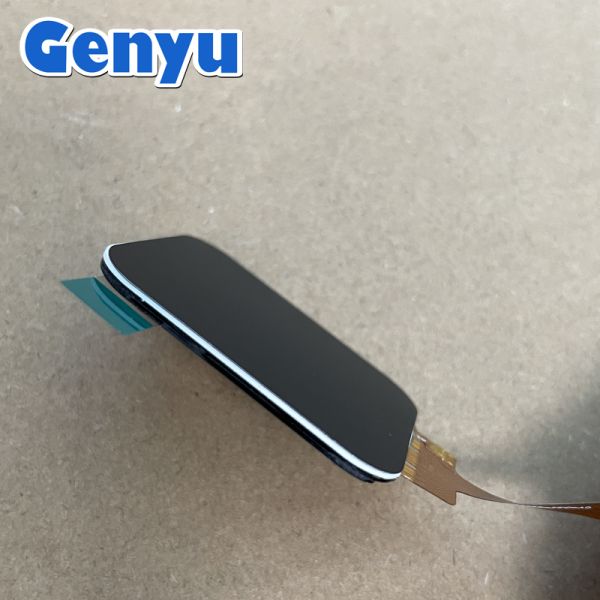

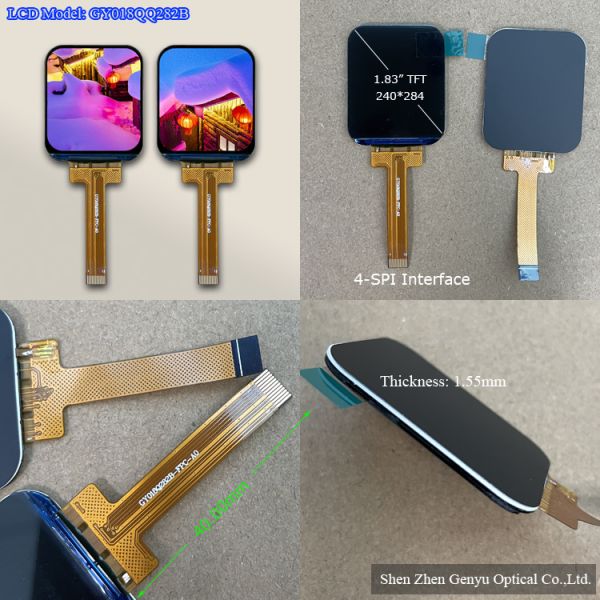

Product Images
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity

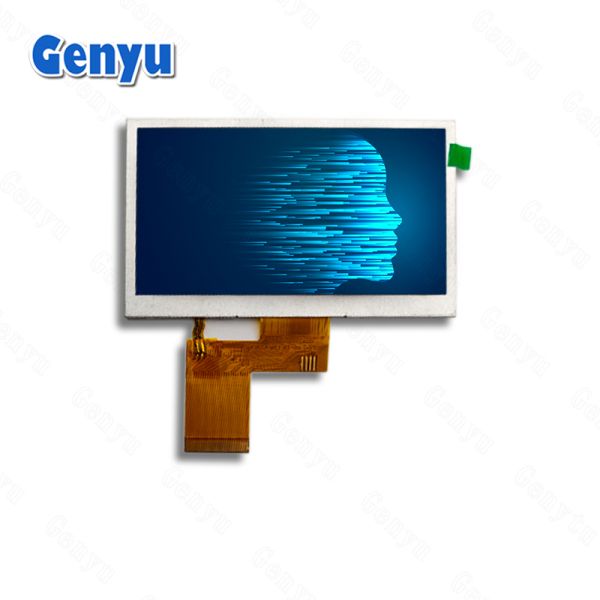

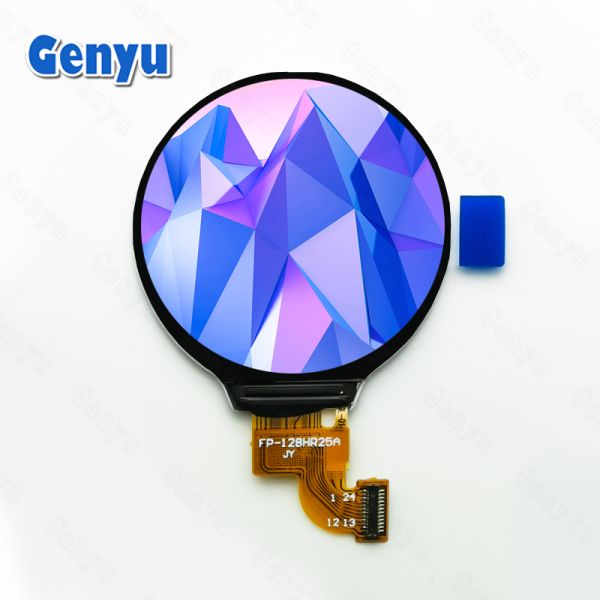

Similar TFT Display Products
We specialize in small to medium size TFT LCD displays ranging from 0.96 inch to 7 inch, including:
0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 4.45", 5", 5.5", 7" and more.
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Company Information
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co., Ltd
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Our Services
  • Technical Support: All products include detailed instructions and procedures. Technical support is available throughout the development process.
  • Quality Assurance: Every product undergoes aging tests and 100% visual and electrical inspection before shipment.
  • Product Upgrades: We notify clients in advance about product upgrades, ensuring compatibility with previous versions.
  • Warranty: 12-month warranty period on all products.
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Packaging & Shipping
Payment Methods
T/T, Western Union, PayPal, and other payment options available.
Delivery
Items ship within 3 working days after payment confirmation.
  • DHL/UPS/FedEx: 5-7 working days
  • EMS/POSTNL: 15-20 working days
Packaging
Professional packaging using electrostatic bags, anti-static trays, plastic pallets, air bubble film, and sturdy carton boxes designed to withstand rough handling during transit.
Genyu 1.83 inch TFT LCD Display with 240x284 Resolution and SPI Interface for High Clarity
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a factory located in Shenzhen and Jiangxi, specializing in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
2. Do you offer free samples?
For first-time cooperation, samples are charged but the amount is refunded during mass order. For regular customers, samples can be provided free of charge.
3. What is your delivery time?
Sample orders: 2-3 weeks. Mass production: 4-6 weeks.
4. Can you customize LCD or touch screens?
Yes, we provide comprehensive customization services. For LCD displays, we can customize backlight brightness and FPC cables. For touch screens, we can customize the entire panel including color, shape, cover thickness, and other specifications according to your requirements.
5. What applications are your products used for?
Our displays are used in embedded systems, intercom systems, biometric devices, HMI interfaces, smart home applications, robotics, handheld PDAs, aftermarket automotive systems, and more.
