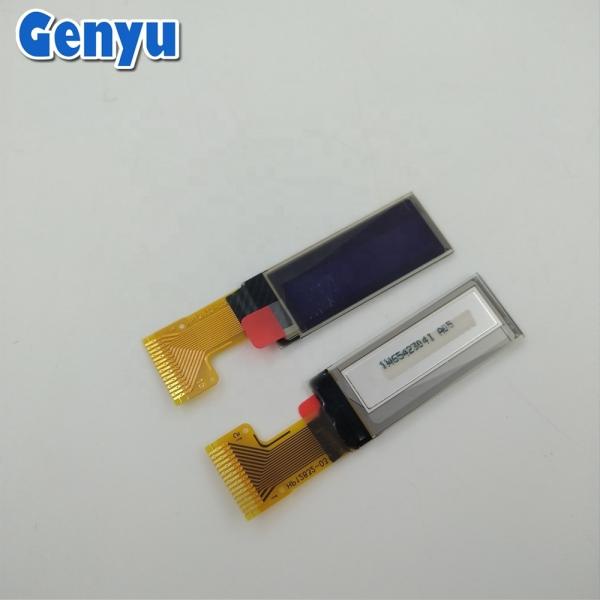

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
Specifications
Type :
PMOLED
Display Size :
0.91 OLED
Place of Origin :
Guangdong, China
Displya mode :
OLED
Size :
0.91 inch oled display
dot Matrix :
128x32 OLED
Wide Viewing Angle :
160°
Drive IC :
SSD1306 OLED
Module size :
30.00*11.50*3.70 mm
Active area :
22.384*5.584 mm
Color :
White or Blue
Product Name :
15 Pin 0.91" OLED
Interface :
SPI or I2C
Brand Name :
Genyu
MOQ :
100 pieces
Price :
$1.19/pieces 100-999 pieces
Description

15 Pin 0.91" OLED 128x32 White Blue OLED Panel 0.91 Inch 128*32 SSD1306 SPI I2C Screen Display 0.91 OLED Display

Product Description

Products: Organic light emitting diode (OLED)

Regular size, standing stock.

Product number : GY12832-03 white Words

Product number : GY12832-07 Blue Words

1. Features

(1) Display Type : Organic light emitting diode (OLED)

(2) Display Size : 0.91 inch oled

(3) Dot Matrix : 128x32 Dots
(4) Drive IC : SSD1306

(5) Viewing Angle : 160°

(6) Color : White or Blue

(8) Operating Tempeture : -20~70 °C

(9) Storage Tempeture : -30~80 °C

Structure LCD + IC + FPC
Module Size 30.00*11.50*3.70 mm
VIEwing Area 24.384*7.584 mm
Dot Size 0.159*0.159 mm
Dot Pitch 0.175*0.175 mm
Connection COG + FPC

Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour

Detailed Images

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 4-9 working days.
By EMS: about 10-14 working days.
By CPAM/HKPAM: about 15-25 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

Company Information

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

Our Services

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32

1). Datasheets

We will provide detailed datasheets of screen/module/driver IC and application circuit to you.


2). Source Code
We can provide whole source code or initial code to you.


3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.


4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.


5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.

Contact Us
0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32
WHAT CAN WE OFFER?
a) Small orders will be acceptable.
b) High quality, durable-competitive pricing.
c) Mass production leadtime would be guaranteed.
d) Free technical services will be provided.
e) Each order will have enough spares.

Pls feel free to contact us,my friend!
