Specifications
Type :
TFT
Display Size :
4.45 inch
Supplier Type :
Manufacturer
Place of Origin :
Guangdong, China
Brand Name :
Genyu
Backlight Type :
/
Resolution :
/, 480x854 dots
Brightness :
/
Operating Temperature :
/
Brand :
/
Display Type :
/
Mounting Type :
/
Screen Size :
/
Communication Interface :
/
Driver Ic :
/
Item :
Color TFT LCD display
Size :
4.45 inch
Drive IC :
GC9503CV
Module Size :
60x109x2.15 mm
Active Area :
55.44x98.64 mm
Power Supply Voltage :
2.8V
Interface :
MIPI
FPC number :
24pin
Application :
POS terminal, etc.
MOQ :
1000 pieces
Price :
$5.63/pieces 1000-4999 pieces
Description

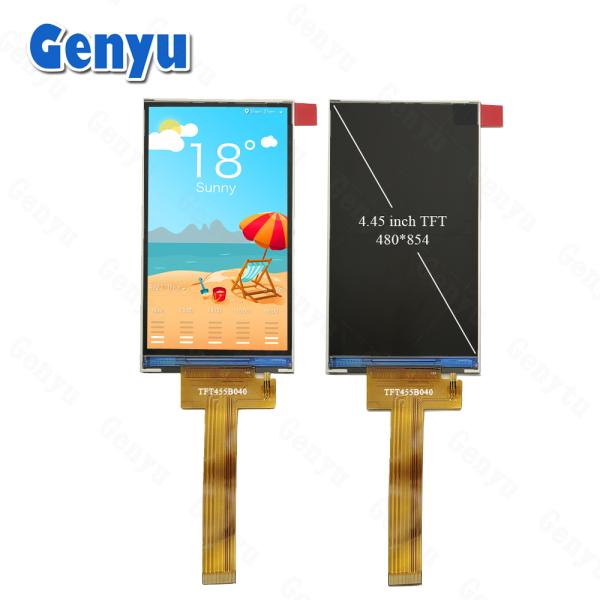

Genyu 4.45 inch TFT LCD 480x854 Dots GC9503 24 pin IPS 4.5" Color TFT screen display with MIPI interface

Product Description

Brand Name: Genyu

Model Number: GY-TFT445B040

1. Features

TFT Size 4.45 inch Interface MIPI
Display Type Color TFT LCD display Viewing Angle ALL
Resolution

480x854 Dots

 Drive IC GC9503CV
LCD Type IPS Voltage 2.8V
Operating Tem. -20℃~+70℃ Connection method 24 PIN
Storage Tem. -30℃~+80℃ LCD Size 60 x 109 x 2.15 mm
Backlight 10 LEDs/ 40mA Active Area 55.44 x 98.64 mm

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 2-5 working days.
By EMS: about 7-10 working days.
By CPAM/HKPAM: about 10-30 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Similar Products

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5 Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5 Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5
Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5 Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5 Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Genyu mainly engaged in small-middle sizes LCD display modules, such as

1. Custom Segment Display

2. Monochrome Graphic Display

3. OLED Display Modules

4. Color TFT Displays

Regarding the Segment & Graphic display, all details can be customized, which will require the tooling cost for development and MOQ for bulk orders.

Regarding the OLED & TFT display, sizes are standard, but we can custom the FPC/ Interface/ Touch Screen, Backlight based on your demands.

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Company Information

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

Our Services

Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co.,Ltd

1. All products are being sent in accord with the real goods. When the clients purchase, we will provide detailed instructions and procedures. And if you need technical support in the development process, we can provide it anytime.

2. Good quality and credit is the soul of our company. Before shipment, we will guarantee that the products will be done the aging test and 100% of the visual and electric logging.

3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.

4. The warranty period of the product is 12 months.

Genyu 4.45 Inch TFT LCD 480x854 Dots GC9503 24 Pin IPS 4.5

FAQ1
1. Q: Are you a manufactory or trade company?
A. We are a factory located in Shenzhen and Jiangxi, which specializes in TN, HTN, STN, FSTN, VA monochrome LCD, Micro OLED Screen, Color TFT Display Panels, LED Backlights, and LCD Modules.
2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
In regular cooperation, samples can be free.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you custom the LCD or touch screen for me?
A: Yes, we can provide custom services.
For the LCD display, backlight brightness and FPC cable can be customized.
For the touch screen, we can customize the whole touch panel, such as the color, shape, cover thickness, and so on according to the customer's requirements.
5. Q: Which applications your products are mainly used for?
A: Embedded system, Intercom system, Biometrix, HMI, Smart home, Robert, Hand-held PDA, Aftermarket automotive and etc.
