Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator
Specifications
Place of Origin :
China
Brand Name :
JIWEI
Model Number :
WP4.1
Price :
Negotiabce
Certification :
CE
MOQ :
1
Payment Terms :
T/T
Rated Voltage :
400V , 230V
Rated Current :
90A-144A
Speed :
1500RPM, 1800RPM
Frequency :
50/60hz
Starting system :
24V DC Electric Start
Type :
Container Type, Open Frame, Mobile Type
Cooling System Type :
Water Cooling System
Warranty :
Other
Rated power :
50kw 60kw 80kw
Engine :
WP4.1
Product name :
50kw 60kw 80kw Weichai diesel generator set
Color :
customizable
Description
Fuel Saving 50kw 60kw 80kw High Cost Performance Weichai Generator Diesel Generator Set
Overview
Product advantage
  • Reliable quality: As a well-known state-owned enterprise, Weichai has high product quality and strict requirements, adopts brand accessories, and has strong versatility. It can operate stably in complex environments and harsh places.
  • Advanced technology: intelligent control technology can automatically adjust the speed and load; Energy efficient technology can reduce energy consumption; Low noise technology effectively reduces noise pollution.
  • Perfect service: after-sales service outlets all over the country, to provide convenient installation, commissioning and maintenance services, the national protection policy to let users have no worries.
Application field
  • Industrial field: factories, mines, construction sites, etc. can be used as backup power supply in the event of power failure to ensure the normal operation of production equipment.
  • Commercial field: shopping malls, hotels, office buildings and other places, for responding to sudden power outages, to maintain the operation of lighting, air conditioning, elevators and other equipment.
  • Medical field: Hospital operating rooms, intensive care units and other important departments to ensure that medical equipment can continue to work when the power supply is interrupted to ensure the safety of patients.
Land Based Genset-JW-WP66
Gen-set specifications
Model JW-WP66
Standby Rating kVAkWe 68.5/55
Prime Rating kVAkWe 62.5/50
Voltage V 400/230
Frequency Hz 50
Power Factor 0.8(lagging)
No.of Phases 3
Fuel consumption@25%/50%/75%(Lh) 4.34/7.12/9.46
Fuel consumption@100%/110%(Lh) 13/14.13
Sound@1m(dB · (A)) Open≤105 dB(A);Silence≤85 dB(A)
Ambient temp(℃) -10~45
Gen-set regulation class ISO8528-5 G2
Steady-state voltage deviation ≤±2.5%;≤±5%
Transient voltage deviation (100%sudden power decrease/increase) +25%;-20%
Steady-state frequency band ≤1.5%
Transient frequency deviation from rated frequency (100%sudden power decrease/increase) +12%;-10%
Standard Features
  • Electronic governor
  • DC24 Electric starter
  • JW-WHC6120NC
  • Closed water-cooled
  • IP23
  • H type insulation
  • Air filter
  • Muffler
  • Circuit Breaker
  • Startingbatteries
  • with connective wires
  • Radiator
  • Oil Drain Valve
  • Forklift Groove
  • Shock Absorber
  • Color: Weichai blue(B,F)/beige canopy and black chassis(L)
  • Packagng: packing case(B,F)
Options
  • Voltage 380V/415V
  • Voltage 440V/480V
  • External fuel tank (1000L/1500L)
  • Single Voltage 220V/230V
  • Automatic Transfer Switch
  • Alternator heater
  • Engine Heater(water)
  • PMG/AREP

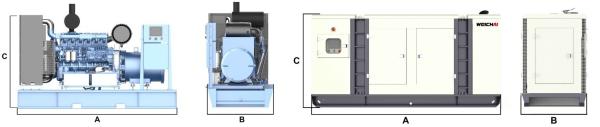

Typical Enclosed Genset Dimensions
Genset Model Prime Rating (kVA) Length A(mm) Width B(mm) Height C(mm) Wet Weight* (kg) Standard Fuel tank Capacity (L)
JW-WP66B1 50 1930 860 1218 925 /
JW-WP66F1 50 1930 860 1218 1030 105
JW-WP66L1 50 2880 1050 1600 1420 180

:Include coolant and oil

We have cooperation with worldwide famous brands. For more specification,please contact us.

Our Advantages

Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator

Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator

Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator

Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator

Our OEM Partners
Fuel Saving WEICHAI Diesel Generator 80 Kw 60kw 50kw 90A - 144A Standby Diesel Generator

are from different brands. With our customized solutions consistently delivering satisfaction, we have won an esteemed reputation.

FAQ

  • Q: What is your MOQ of this item?

    A: 1 Sets.

  • Q: What is the lead time?

    A: 7 working days after received the 30%T/T deposit.

  • Q: Is it all right to make customer's own brand name?

    A: We can be your OEM manufacture with your authorization of brand.

  • Q: Where is your Loading Port?

    A: Shanghai or others.

  • Q: What are your payment terms?

    A: 30% TT as deposit, 70% TT before Shipment.

  • Q: What is your company's available production capacity?

    A: 100 Sets per month.

  • Q: What's the warranty time of diesel generators?

    A: 12 months or 1000 working hours, whichever comes first.
