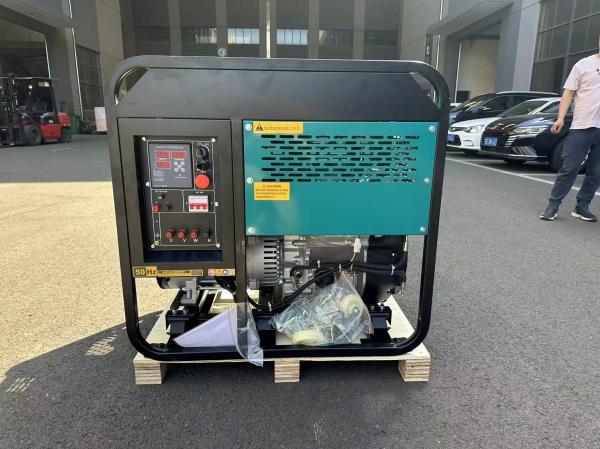

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
Specifications
Brand Name :
JIWEI
Model Number :
JW-YMT
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Rated voltage :
110V/220V/230V/380V/400V/440V,120 to 440V
Frequency :
50/60HZ
Speed :
3600rpm,3000/3600RPM,1500/1800
Rated current :
30A-50A
Rated power :
17kw 25kw 20kva 25kva
Output type :
AC Single Phase,DC,AC 3 Phase,Other
Color :
customizable
Engine type :
Two-Cylinder Four-Stroke，Air-cooled diesel Engine,ECU
Starting system :
Manual start, remote start, electric start
Function :
Provide Electric Power
Fuel tank capacity :
10-25L，According To Customers' Requirement
Alternator type :
Brush alternator with AVR or brushless with AVR,Three phase alternator
Product :
17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA
Description

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA


Overview


Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. Below are the key features and applications of silent diesel generators.

Features

  1. Low Noise Design

    • Uses soundproof materials and specially designed silencers to significantly reduce operational noise.

  2. High Efficiency

    • Generally exhibits high fuel efficiency, providing stable power output over extended periods.

  3. Durability

    • Built with a robust diesel engine structure, suitable for long-running and heavy-load conditions.

  4. Portability

    • Many models are designed to be mobile, allowing for easy relocation and use in various settings.

  5. Environmental Protection

    • Complies with modern environmental standards, reducing emissions and ensuring eco-friendliness.

Applications

  1. Backup Power Supply

    • Acts as an emergency power source during outages, ensuring continuity for critical operations such as hospitals and data centers.

  2. Outdoor Activities

    • Supplies reliable power for events such as weddings, concerts, and other outdoor gatherings.

  3. Construction Sites

    • Provides electricity to construction sites lacking access to the electrical grid, powering tools and site facilities.

  4. Remote Areas

    • Delivers power for research stations, mining operations, and other activities in isolated locations.

Silent diesel generators are versatile and essential in maintaining power in sensitive and varied environments.


Specification


MODEL YMT15000STA-3) YMT18000STA-3)
Frequency HZ 50 60 50 60
Voltage V 220,230, 240,110/220,127/220,115/23 0,120/240,220/380,230/40 0,240/415
Rated Power KVA 11.5(13.7) 12(15) 15(18.8) 16(20)
Max.Power KVA 12.5(15) 13(16.2) 16(20) 17(21.2)
Phase Number 1-phase/3-phase 1-phase/3-phase
Excitation self-exciting,brush self-exciting,brush
Power Factor 1.0(0.8) 1.0(0.8)
Insulation Grade F F
Fuel Capacity L 25 25
Noise Level(@7m) dB(A) 75 75
Engine Model 2V92 2V95
Engine Type 2-cylinder,4-stroke,air-cooled,VType 2-cylinder,4-stroke,air-cooled,VType
Starting System Electric start Electric start
Broke*Stroke mm 92*75 95*88
Displacement L 0.997 1.247
Compression Ratio 20.0:1 20.0:1
Rated Rotation Speed rpm 3000 3600 3000 3600
Rated Power KW 14 15.5 19 21
Lube Oil Capacity L 3.8 4
Fuel Type 0#(summer),-10#(winter)diesel 0#(summer),-10#(winter)diesel
Lube Oil SAE10W30(CF grade or above) SAE10W30(CF grade or above)
Optional ATS ATS
Remote control Remote control
Digital smart panel Digital smart panel
Overall Dimension mm 1200*720*880 1250*720*880
Net Weight kg 260 270



17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA

17KW 20KVA Diesel Generator All-copper 220V/380V High Efficiency Three Phase 20KW/25KVA


FAQ


1.Q: What is your MOQ of this item?
A:1 Set.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
